OEM PART NUMBERS:
• Ford: 7L7T-10300-AC / 7L7T10300AC
• Ford: 7L7Z-10346-B / 7L7Z10346B
• Ford Engineering: 7L7T-AC / 7L7TAC
• Denso: 104210-5630 / 1042105630
• Motorcraft: GL-921
SPECIFICATIONS:
• Voltage: 12V
• Amperage: 150A
• Rotation: CW (Clockwise)
• Type: Denso Hairpin (Permanent Magnet)
• Regulator: Internal (IR)
• Fan: Internal (IF)
• Pulley: 6-Groove Serpentine (S6)
• Plug Code: 343
• Regulator Clock: 10:00
• Mount Holes: M6x1.00 Threaded
• Polarity: Negative Ground
• Condition: New
• Weight: 18 lbs / 8.16 kg
APPLICATION:
• Ford Expedition V8 5.4L 330CID Triton (2007-2009)
• Lincoln Navigator V8 5.4L 330CID Triton (2007-2009)
DESCRIPTION:

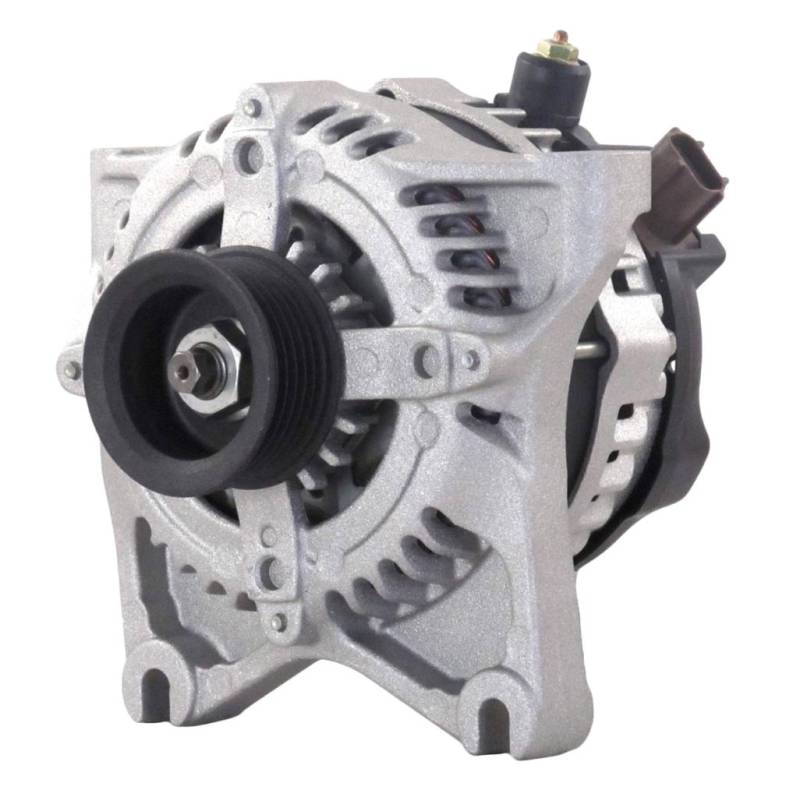

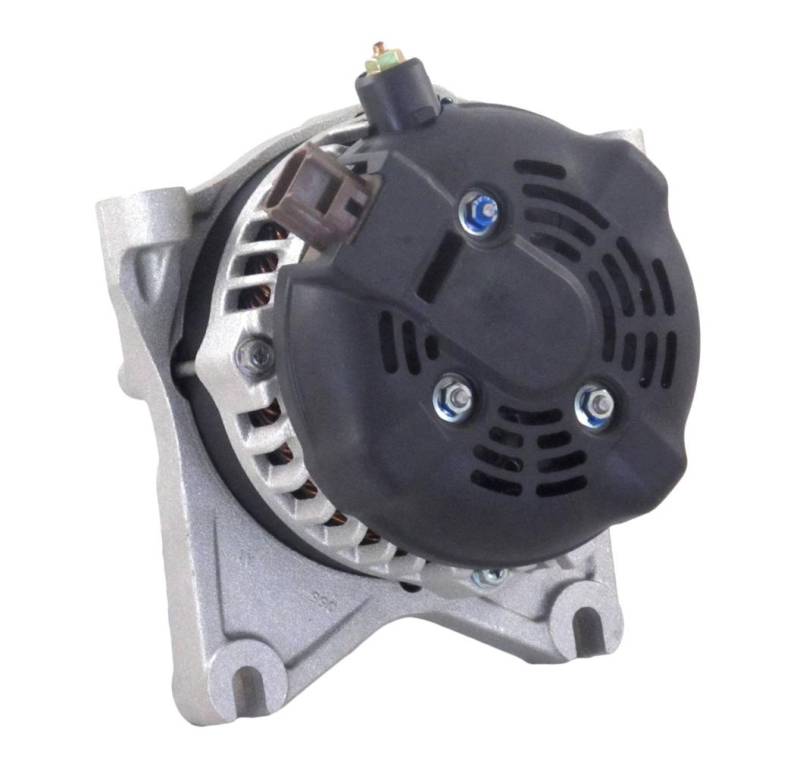

12V 150A Alternator - Ford Expedition / Lincoln Navigator 5.4L V8
Direct OEM replacement 150 amp alternator for the Ford Expedition and Lincoln Navigator equipped with the 5.4L 3-Valve Triton V8 engine (330CID SOHC). This Denso hairpin permanent magnet alternator delivers high-output 150 amp charging with clockwise rotation, internal voltage regulator, and internal fan cooling. Features a 6-groove serpentine pulley, plug code 343 connector at the 10:00 clock position, and M6x1.00 threaded mounting holes. Designed for full-size SUV applications with heavy electrical demands. Replaces Ford 7L7T-10300-AC, 7L7Z-10346-B, Denso 104210-5630, and Motorcraft GL-921
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
