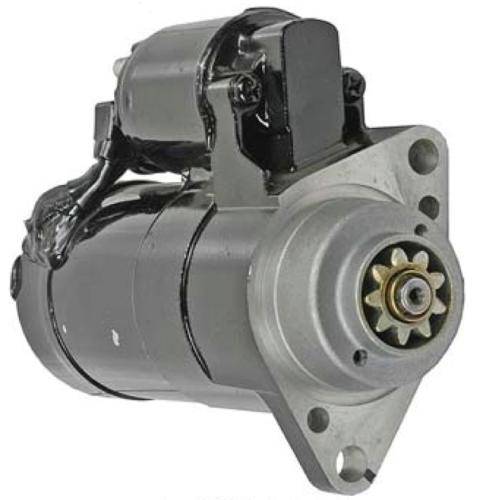

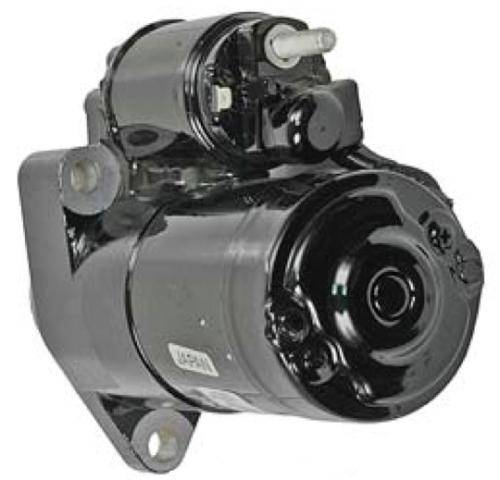

Starter Motor Compatible With Honda Marine Outboard Bf200 Bf225 200Hp 225Hp 3.5L V6 4-Stroke Bf175

OEM PART NUMBERS:
• Honda: 31200-ZY3-003 / 31200ZY3003
• Honda: 31200-ZY3A-0034 / 31200ZY3A0034
• Honda: MHG015
• Mitsubishi: M1T68581 / M001T68581
• API Marine: MOT6002
• Arco Marine: 3455
• Mercury / Quicksilver: 8M6007339
• Tohatsu / Nissan: HZY3-31200-003
• Protorque: PH130-0070



AFTERMARKET CROSS REFERENCE:
• API Marine: MOT6002
SPECIFICATIONS:
• Item Description: Starter Motor
• Starter Type: PMGR (Permanent Magnet Gear Reduction)
• Voltage: 12V
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 28.3mm / 1.114in
• kW: 1.6
• Mounting Ear 1: 11.4mm ID Unthreaded
• Mounting Ear 2: 11.4mm ID Unthreaded
• Battery Stud: M8-1.25 Threaded
• Registration OD: 59.9mm
• Flange to Rear: 172.5mm
• S Terminal: Spade Type
• Weight: 8.25 lbs / 3.75 kg
• Condition: New

HONDA / TOHATSU MARINE OUTBOARD APPLICATIONS:
• Honda BF175 175HP V6 4-Stroke (2007-2019)
• Honda BF200 200HP V6 4-Stroke (2002-2019)
• Honda BF225 225HP V6 4-Stroke VTEC (2002-2019)
• Honda BF250 250HP V6 4-Stroke VTEC (2012-2019)
• Tohatsu / Nissan 200HP / 225HP / 250HP 4-Stroke (2018-2023)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
