New 12V Ccw Pmdd Starter 13-Tooth Compatible With 1992-1999 Force Mercury Marine 40Hp 50Hp Outboard

FORCE 40HP MARINE OUTBOARDS — UT STARTER (1992-1999):
• 1992 Force Marine 407F 40HP Outboard — UT PMDD Starter System
• 1992 Force Marine 408F 40HP Outboard — UT PMDD Starter System
• 1993-1999 Force Marine 40EL 40HP Outboard — UT PMDD Starter System
• 1993-1999 Force Marine 40ELPT 40HP Outboard — UT PMDD Starter System (Power Trim)

FORCE 50HP MARINE OUTBOARDS — UT STARTER (1992-1999):
• 1992 Force Marine 507 50HP Outboard — UT PMDD Starter System
• 1992 Force Marine 508 50HP Outboard — UT PMDD Starter System
• 1993-1999 Force Marine 50EL 50HP Outboard — UT PMDD Starter System
• 1993-1999 Force Marine 50ELPT 50HP Outboard — UT PMDD Starter System (Power Trim)

FORCE → MERCURY HISTORICAL CONTEXT:
• Force outboards were built by U.S. Marine Power Equipment Corporation (1984-1996)
• In 1996, Mercury Marine acquired U.S. Marine / Force
• Mercury continued to support Force production and parts through 1999
• Both Mercury Marine and Force share the same OEM part numbers (50-819271, 50-820193A1) since Mercury inherited Force's parts catalog post-acquisition
• Same starter spans the entire 1992-1999 Force / Mercury production era

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED

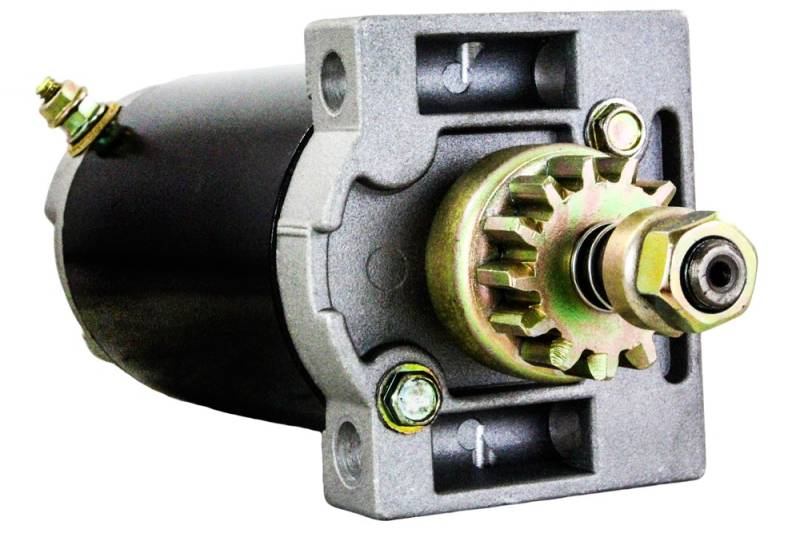

• Counterclockwise (CCW) rotation, 13-tooth pinion, 1.504" (38.2mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original UT design
• Field housing length: 4.8" / 122mm
• 2-ear mounting: both ears 10.0mm ID unthreaded

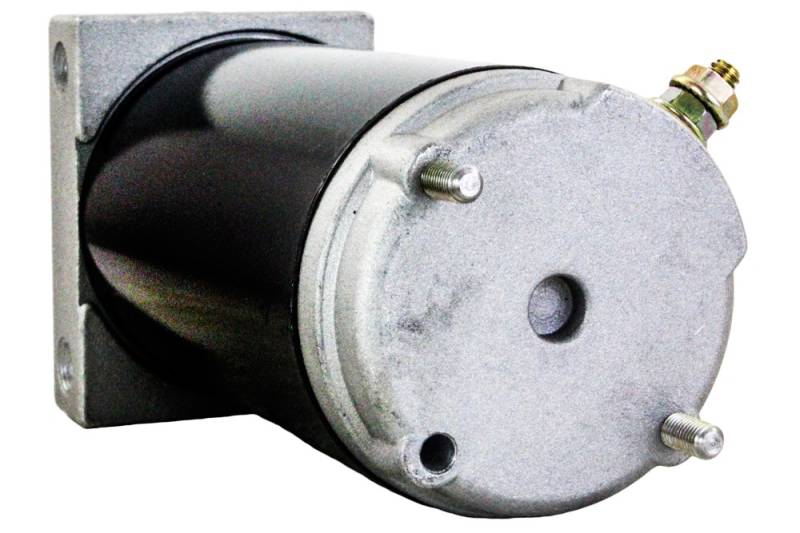

• Battery stud EXITS THE SIDE OF CE HOUSING — CRITICAL fitment specification (some 13-tooth UT starters have battery stud exiting the rear)
• Weight: 7.4 lbs (3.36 kg)
• OEM Manufacturer: Johnson Electric / United Technologies
• Will NOT fit Force 40-55HP 1984-1991 outboards (those use — different 11-tooth starter)
• Will NOT fit Force 75/85/90/120/125/150HP outboards (different starter family)
• Will NOT fit Mercury 40/50HP outboards from 1996+ that aren't the rebadged Force platform (different starter)
• Will NOT fit Mercury 40/50HP 4-Stroke outboards (different starter family)
• Will NOT fit any Force / Mercury starter where battery stud exits the REAR of CE housing (different number — typically 5728 or similar)
• Always verify your OEM part number from the original starter unit before ordering
