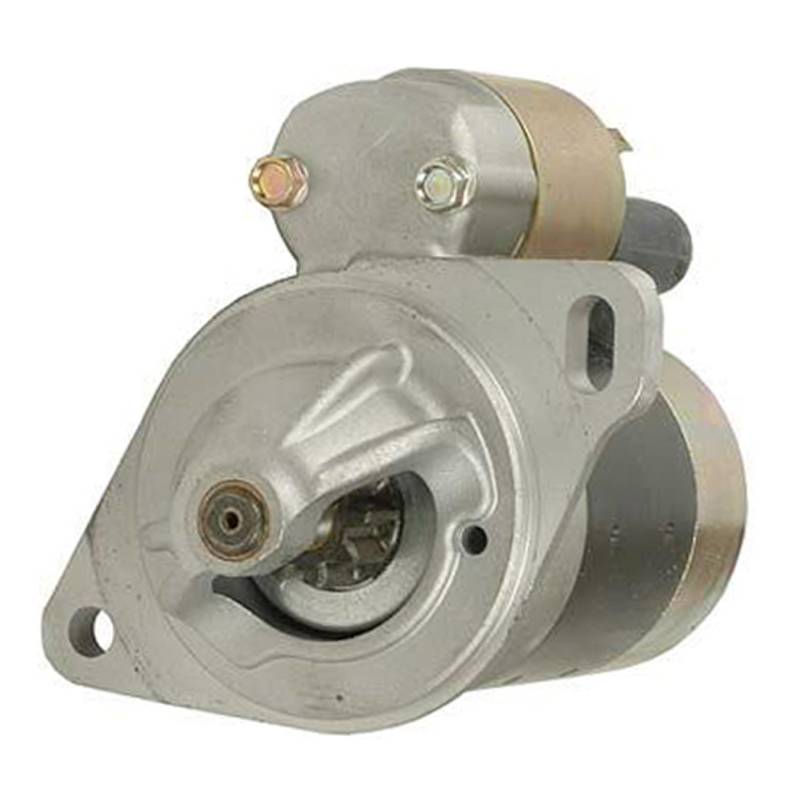

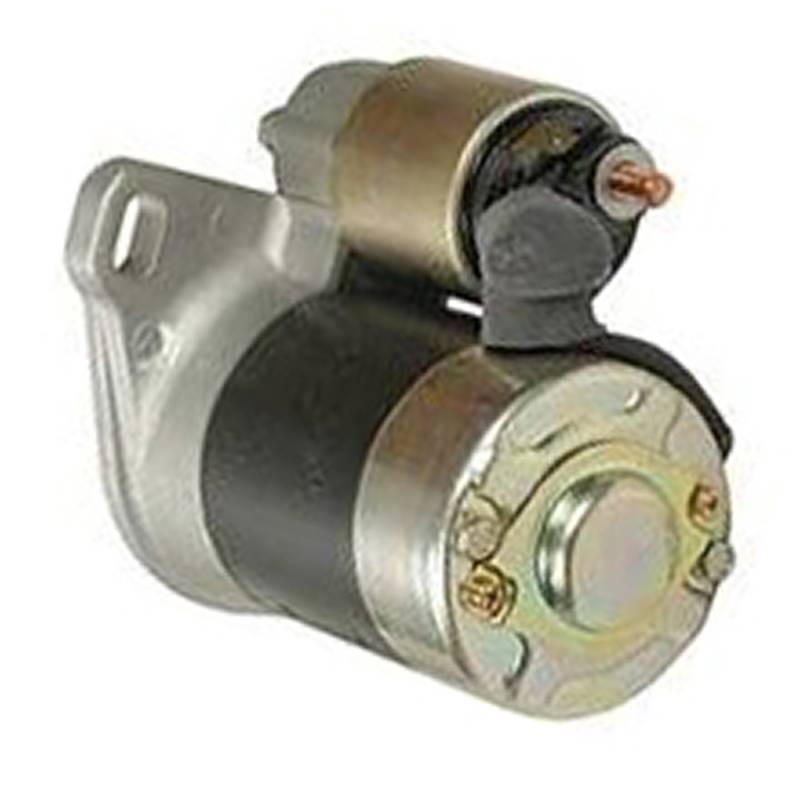

⚠️ 12 VOLT 0.9 KW HITACHI PMDD STARTER, NEW:
• 12 volt, 0.9 kW, permanent magnet direct drive (PMDD), clockwise (CW) rotation
• 9 tooth pinion, 29.1 mm (1.146 in) pinion OD, 89 mm mounting flange
• 2 unthreaded 10.7 mm mounting holes, the second hole oblong (10.7 x 20.0 mm)
• Replaces Hitachi S114-656 / S114-656A / S114-656B / S114-203 and Yanmar 119865-77012 / 119865-77011
• An 8 tooth starter is a different part: count the teeth on the old pinion before ordering
YANMAR YM COMPACT TRACTORS, 2 CYLINDER 2TR DIESEL:
• 1975-1980 Yanmar YM1300 compact tractor (2WD), Yanmar 2TR13 0.7L 2 cylinder diesel
• 1975-1980 Yanmar YM1300D compact tractor (4WD), Yanmar 2TR13 0.7L 2 cylinder diesel
• 1975-1979 Yanmar YM1500 compact tractor (2WD), Yanmar 2TR15 2 cylinder diesel
• 1975-1979 Yanmar YM1500D compact tractor (4WD), Yanmar 2TR15 2 cylinder diesel
• 1976-1979 Yanmar YM155 sub-compact tractor (2WD), Yanmar 2TR13A 0.7L 2 cylinder diesel
• 1976-1979 Yanmar YM155D sub-compact tractor (4WD), Yanmar 2TR13A 0.7L 2 cylinder diesel
• 1980-1986 Yanmar YM165 compact tractor (2WD), Yanmar 2TR13A 0.7L 2 cylinder diesel
• 1980-1986 Yanmar YM165D compact tractor (4WD), Yanmar 2TR13A 0.7L 2 cylinder diesel
YANMAR YM COMPACT TRACTORS, 3 CYLINDER 3T DIESEL:
• 1986-1989 Yanmar YM169 sub-compact tractor (2WD), Yanmar 3T72HA-A 0.9L 3 cylinder diesel
• 1986-1989 Yanmar YM169D sub-compact tractor (4WD), Yanmar 3T72HA-A 0.9L 3 cylinder diesel
• 1981-1983 Yanmar YM1301 sub-compact tractor (2WD), Yanmar 3T70B 3 cylinder diesel
• 1981-1983 Yanmar YM1301D sub-compact tractor (4WD), Yanmar 3T70B 3 cylinder diesel
YANMAR TN SERIES INDUSTRIAL DIESEL ENGINES:
• Yanmar 3TN66 3 cylinder diesel, from 1985
• Yanmar 3TNA68 3 cylinder diesel, from 1986
• Yanmar 3TNA72 3 cylinder diesel, from 1984
• Yanmar 3TNE74 diesel: 3TNE74-MG, 3TNE74C-EMG, 3TNE74C-EKM
