New Starter Compatible With Volvo Buses B12b B12m 12.0L Truck Fh12 12.1L 2001-2003 Fm12 12.1L

24 VOLT 5.5kW 12-TOOTH CW PLGR PLANETARY GEAR REDUCTION STARTER MOTOR — MITSUBISHI TYPE FOR VOLVO D12 AND D13 TRUCKS, BUSES AND COACHES:

THIS IS THE 24 VOLT STARTER — READ THIS FIRST:
This starter is 24 VOLT. It serves the European Volvo FH12, FM12, B12 and coach chassis built around the D12 and D13 engines. It does NOT fit the North American Volvo VN, VNL, VNM, VHD, WG, WC, WI or the Autocar ACL. Those trucks run 12 VOLT systems and take a different starter carrying Volvo 20430285 or 85103338. The two units look almost identical — both are Mitsubishi planetary gear reduction, both 12 tooth, both clockwise, both three bolt — and only the voltage separates them. Check the system voltage on your truck rather than going by the model name

PLGR PLANETARY GEAR REDUCTION — HIGH TORQUE DESIGN:
The planetary gearset multiplies torque, so this starter cranks harder than a direct drive of the same physical size and draws less current doing it. That matters most on a cold morning, on aged wiring, or on batteries that are past their best. The magnetic switch is integrated into the unit

MEASURE BEFORE ORDERING:

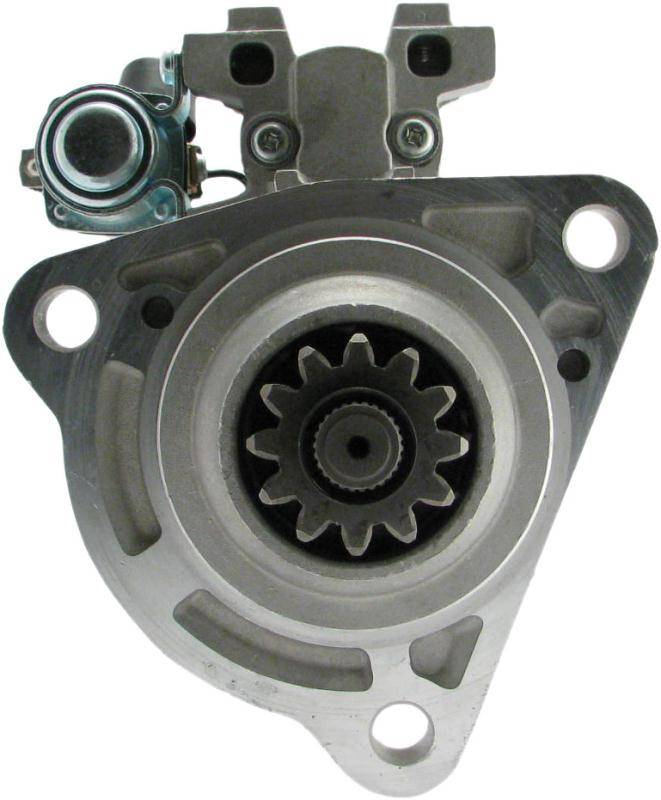

This is the 12 TOOTH clockwise rotation starter. The gear outside diameter is 46 mm, or 1.811 inches. It mounts on a three bolt flange and all three holes are 13 mm inside diameter and unthreaded. Check the tooth count, the gear diameter and the bolt pattern on your original before ordering

VOLVO FH12 AND FH TRUCKS:
• 1993-1998 Volvo FH12 340 / 380 / 420 / 460 D12A Diesel
• 1993-2005 Volvo FH12 420 D12A and D12D Diesel
• 1993-2006 Volvo FH12 460 D12A and D12D Diesel
• 2001-2006 Volvo FH12 380 D12D Diesel
• 2005-Present Volvo FH 420 / 440 / 460 / 480 / 500 D13A D13B D13C D13K Diesel
• 2012-Present Volvo FH 540 D13C and D13K Diesel
• Volvo NH12 and FL12 with the D12 Diesel

VOLVO FM12 AND FM TRUCKS:
• 1998-2008 Volvo FM12 340 D12C Diesel
• 1998-2008 Volvo FM12 380 D12C and D12D Diesel
• 1998-2008 Volvo FM12 420 D12D Diesel
• 1998-2008 Volvo FM12 440 D12D Diesel
• 1998-2008 Volvo FM12 460 D12C and D12D Diesel
• 1998-2005 Volvo FM 340 D12D Diesel
• 2005-Present Volvo FM 360 / 380 / 420 / 460 / 500 D13A D13B D13C Diesel

VOLVO BUS CHASSIS:
• 1992-2006 Volvo B12 Bus Chassis 12.1L Diesel
• 2005-Present Volvo B12B Bus DH12E 340 / 380 / 420 / 460 Diesel
• 2002-2006 Volvo B12M Bus Chassis Diesel

VOLVO COACHES:
• 1999-Present Volvo 8700 Coach DH12D 340 and DH12E 340 Diesel
• 2001-Present Volvo 9700 Coach DH12D 340 / 380 Diesel
• 2007-Present Volvo 9900 Coach DH12E 460 Diesel

RENAULT TRUCKS:
• Renault Trucks share the Volvo driveline and carry this starter under their own numbers 5001866293 and 7420430564
• Match by part number rather than by model, because published Renault model and year data for this starter is incomplete

BOMAG:
• Bomag 0571966 is a published cross-reference number for this starter
• The Bomag machine it was fitted to is not published in any catalogue, so match by the number stamped on your original rather than by machine

NOT THE NORTH AMERICAN TRUCK STARTER — THE COMMON MISTAKE:
Parts data for this starter circulates with a North American Volvo application table attached to it — VN, VNL, VNM, VHD, ACL, WC, WG, WI and FE. That table belongs to the 12 VOLT starter, not to this one. North American Class 8 Volvo and Autocar trucks with the VE D12 engine run 12 volt electrics and take Volvo 20430285 or 85103338, or a Delco 39MT. The North American Volvo FE is a Class 7 cabover that never carried the 12.1 litre engine at all. If your truck was sold in North America, this is almost certainly not your starter

MATCH THE NUMBER ON YOUR ORIGINAL — CHECK BEFORE ORDERING:
Read the number stamped on your original starter and match it against the cross reference list. Where the number has worn off, the checks that matter are the system voltage, the tooth count, the gear diameter and the three bolt flange

FITMENT NOTES:
• 24 Volt, 5.5kW, PLGR planetary gear reduction, CW rotation, 12 teeth
• Gear outside diameter 46 mm / 1.811 in
• Three bolt flange, all holes 13 mm unthreaded, open nose cone
• Grounded case, integrated magnetic switch built into the unit
• Volvo D12, D13 and DH12 engines only
• Match your original unit against the numbers listed to confirm fitment
