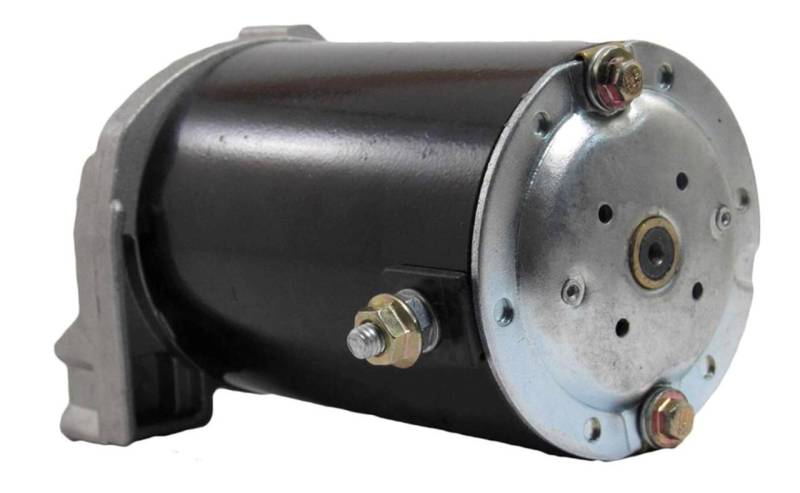

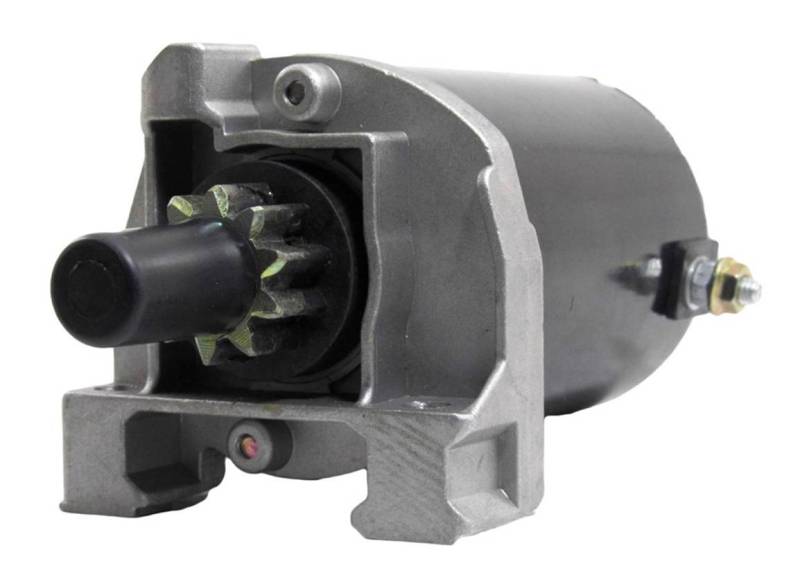

12V Pmdd Starter Motor Compatible With Generac Gn410 15Hp Gn360 13Hp Gn320 11Hp Gn220 7.8Hp Gn191

(0) Reviews: Write first review
5786
OEM PART NUMBERS:
• Generac: 021544 / 21544
• Generac: 0A7692 / A7692
• Generac: 0D9230 / D9230
• Generac: 0D92300ESV
• Generac: 0D92300SRV
• Generac: 87266

SPECIFICATIONS:
• Type: Starter
• Unit Type: Johnson Electric
• Design: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth: 10
• Gear OD: 32.1mm / 1.264"
• Field Case Length: 3.94" / 100mm
• Mounting Ear 1: 8mm ID Unthreaded
• Mounting Ear 2: 8mm ID Unthreaded
• Mounting Ear 3: M8-1.25 ID Threaded (angled 45°)
• Weight: 5.6 lbs / 2.55 kg

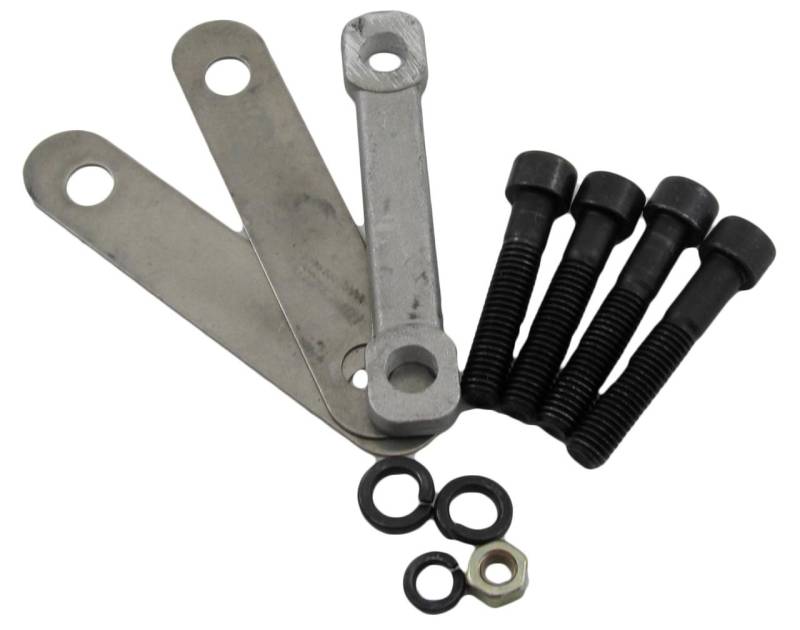

• Includes: Mounting Bolts and Shim Kit
• Condition: New

GENERAC ENGINE APPLICATIONS:
• GN190 6.5HP / GN191 6.5HP / GN220 7.8HP
• GN320 11HP / GN360 13HP / GN410 15HP
• Portable and Standby Generators 5000-12500 Watt

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $143.71
Sale: $82.12
Save: 43%
Save: $61.59
Qty:
Free Shipping!

Description

GENERAC GN190 ENGINE — 6.5HP OHV SINGLE-CYL 4-STROKE:
• GN190 Generac 190cc OHV Single-Cylinder 4-Stroke 6.5HP Engine
• Used in Generac 5000/5500/6000 Watt Portable Generators
• Used in Craftsman 5000 Watt Portable Generators (Generac-powered)

GENERAC GN191 ENGINE — 6.5HP OHV SINGLE-CYL 4-STROKE:
• GN191 Generac 191cc OHV Single-Cylinder 4-Stroke 6.5HP Engine
• Used in Generac 5000/5500 Watt Portable and Standby Generators

GENERAC GN220 ENGINE — 7.8HP OHV SINGLE-CYL 4-STROKE:
• GN220 Generac 220cc OHV Single-Cylinder 4-Stroke 7.8HP Engine
• Used in Generac 5500/6500/7000 Watt Portable Generators
• Used in Dayton 5000 Watt Generators (Generac-powered)

GENERAC GN320 ENGINE — 11HP OHV SINGLE-CYL 4-STROKE:
• GN320 Generac 320cc OHV Single-Cylinder 4-Stroke 11HP Engine
• Used in Generac 6500/7500/8000 Watt Portable Generators

GENERAC GN360 ENGINE — 13HP OHV SINGLE-CYL 4-STROKE:
• GN360 Generac 360cc OHV Single-Cylinder 4-Stroke 13HP Engine
• Used in Generac 7500/8000/10000 Watt Portable Generators

GENERAC GN410 ENGINE — 15HP OHV SINGLE-CYL 4-STROKE:
• GN410 Generac 410cc OHV Single-Cylinder 4-Stroke 15HP Engine
• Used in Generac 8000/10000/12500 Watt Portable and Standby Generators
• Used in Industrial Pressure Washers and Power Equipment
