OEM PART NUMBERS:
• 1183599 (Deutz)
• 01183599 (KHD)
• 1182124 (Deutz/KHD)
• 1182382 (Deutz/KHD)
• 1285858 (Hamm)
• 0001223021 (Bosch)
SPECIFICATIONS:

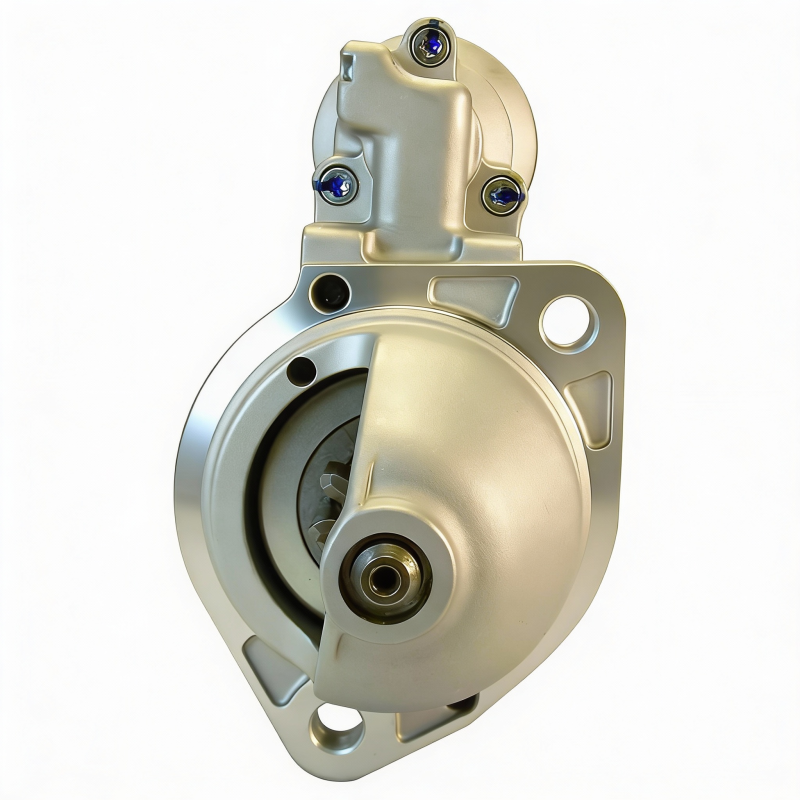

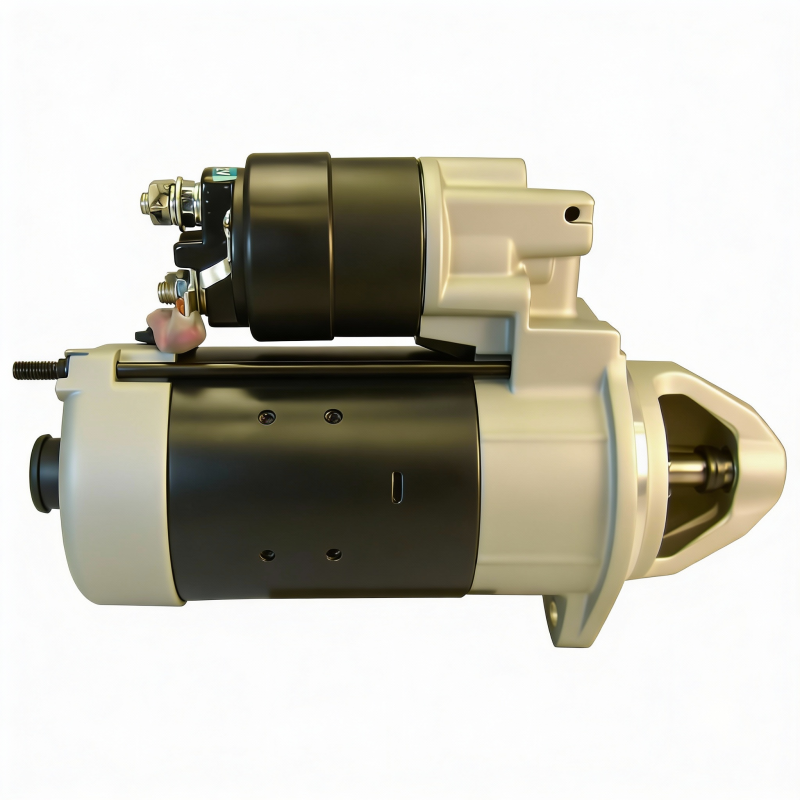

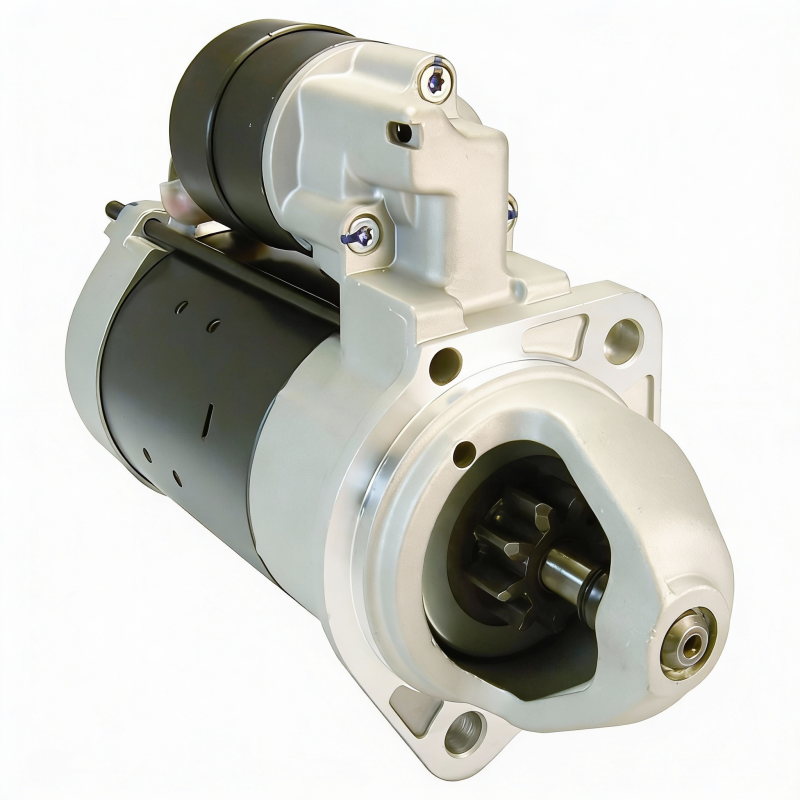

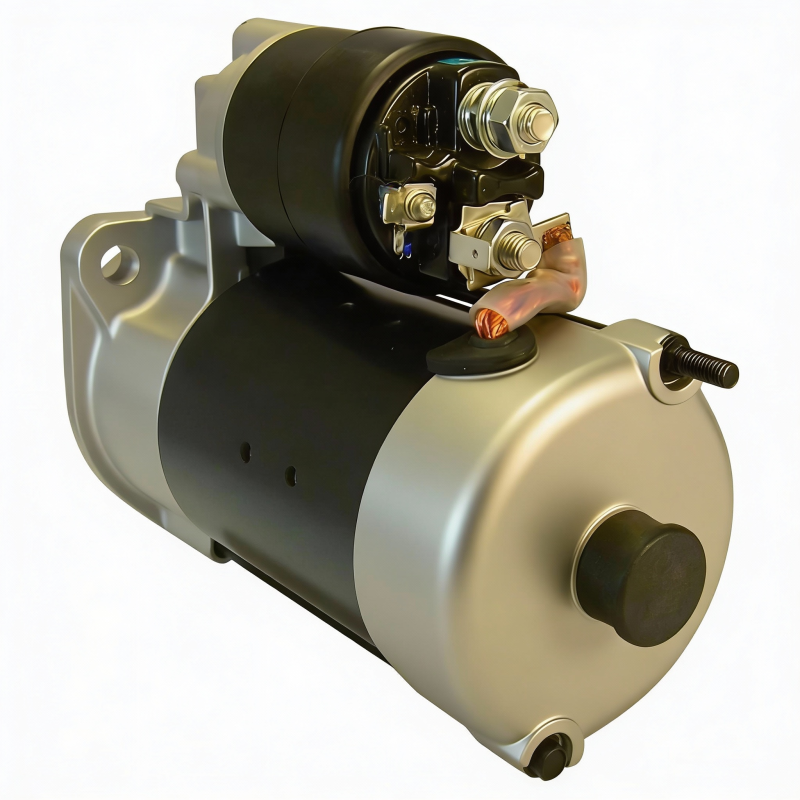

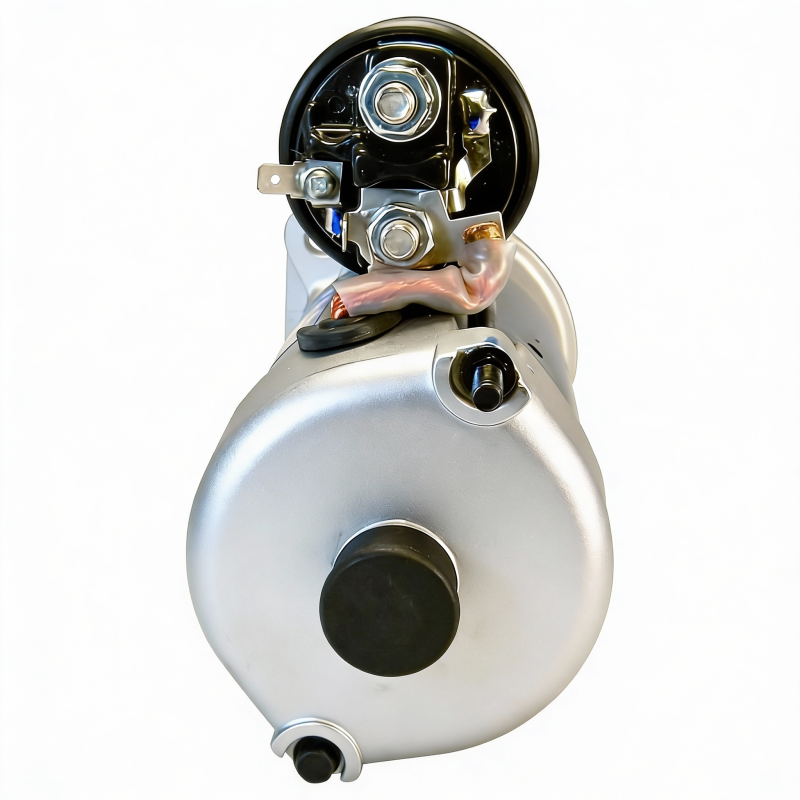

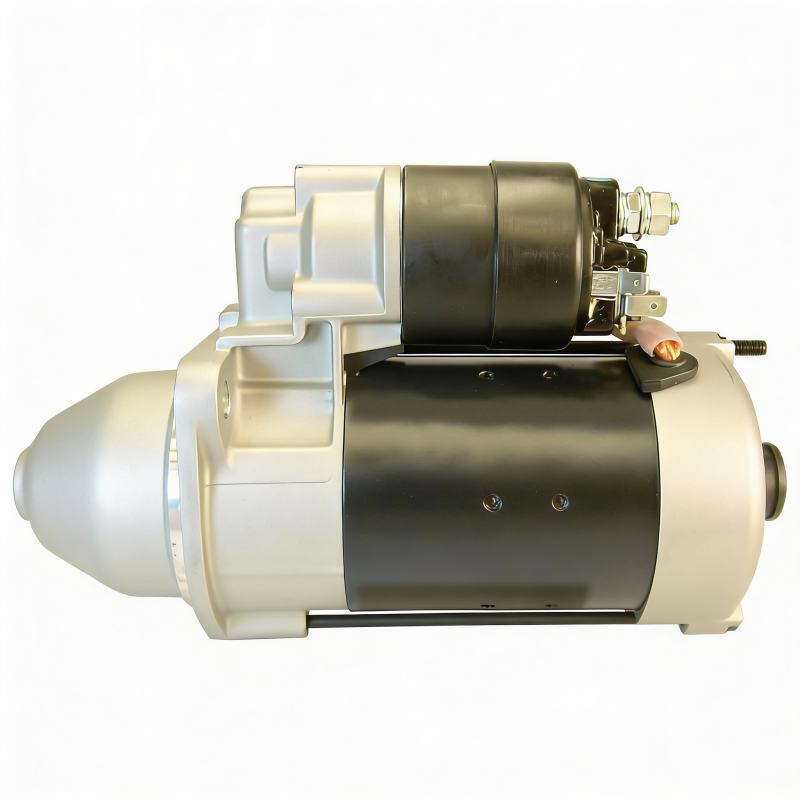

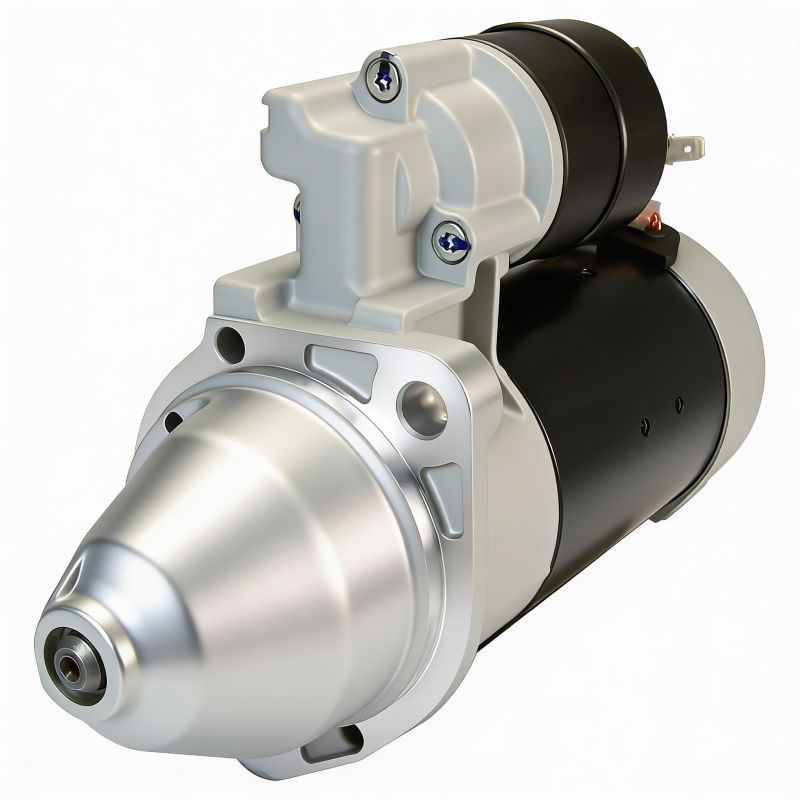

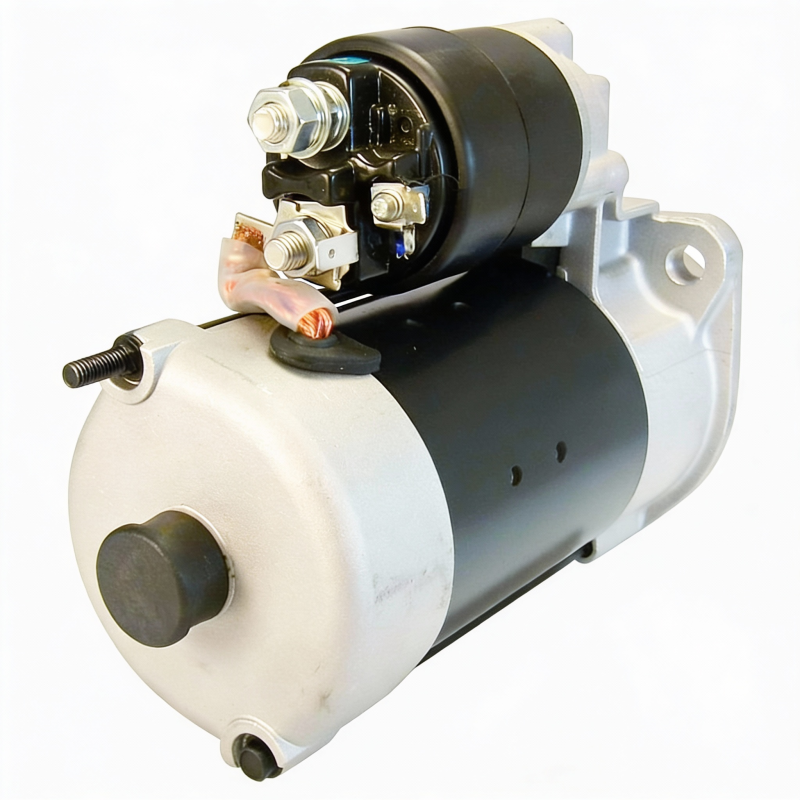

• Type: Starter Motor (PLGR - Planetary Gear Reduction)
• Voltage: 12V
• Power Output: 2.3 KW (3.08 HP)
• Rotation: Clockwise (CW)
• Tooth Count: 9 Teeth Spline
• Gear OD: 1.327 in / 33.7mm
• Mounting Ear 1: 11mm Unthreaded
• Mounting Ear 2: 11mm Unthreaded
• Clutch Type: Dry
• Unit Series: 223
FITS ENGINE:
• BF4M1011F - 4-Stroke, 4-Cylinder Turbocharged Oil-Cooled Diesel
• Displacement: 2.91L (177ci)
• Power: 82.9 HP (61 KW) at 3000 RPM
• Peak Torque: 239 Nm (196 lb-ft) at 1800 RPM
• Compression: 17:1
• Fuel Injection: Direct, OHV
FITS EQUIPMENT:
• HD10 Tandem Vibratory Roller - BF4M1011F Diesel
• HD12 Tandem Vibratory Roller - BF4M1011F Diesel, 48" Drum
• HD70 Tandem Vibratory Roller - BF4M1011F Diesel, 59" Drum
• HD75 Tandem Vibratory Roller - BF4M1011F Diesel
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
