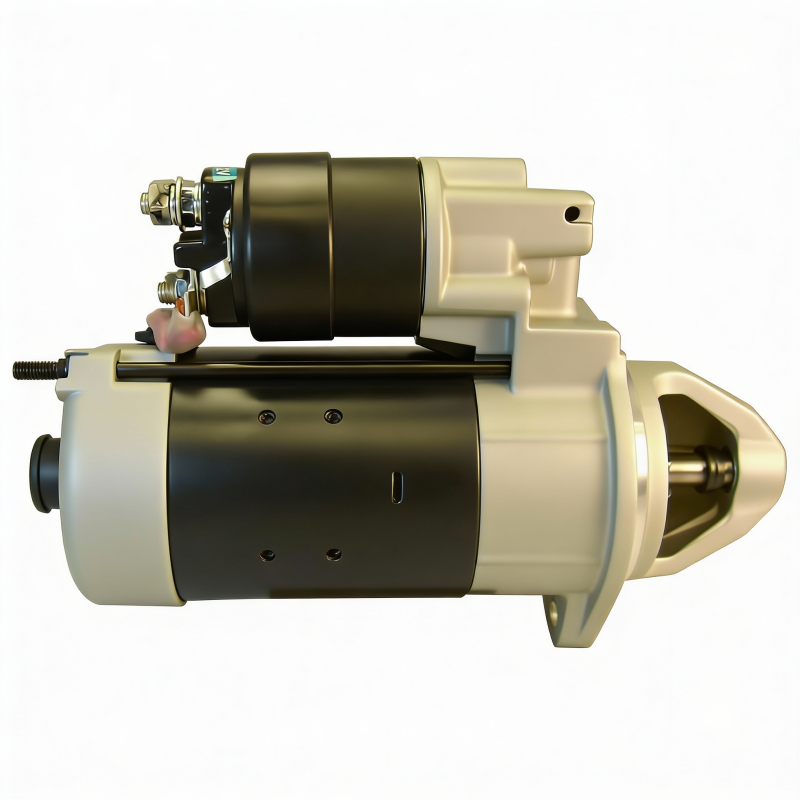

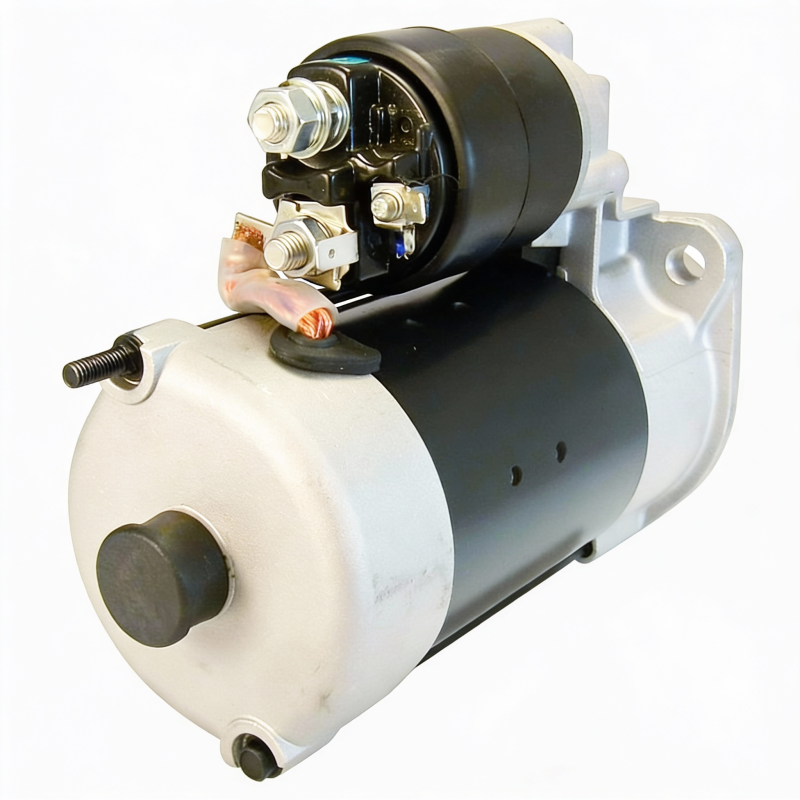

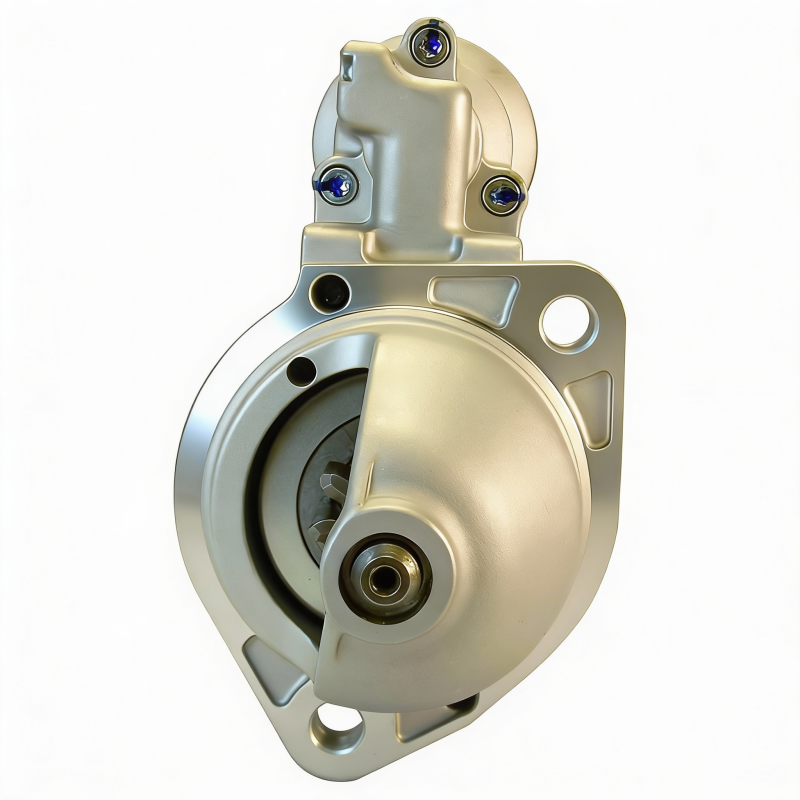

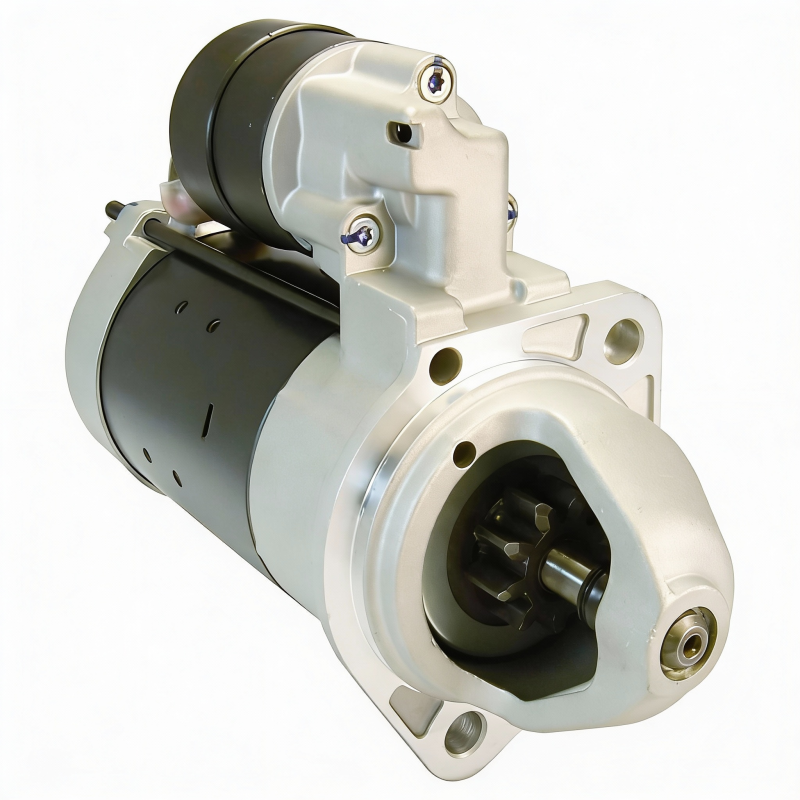

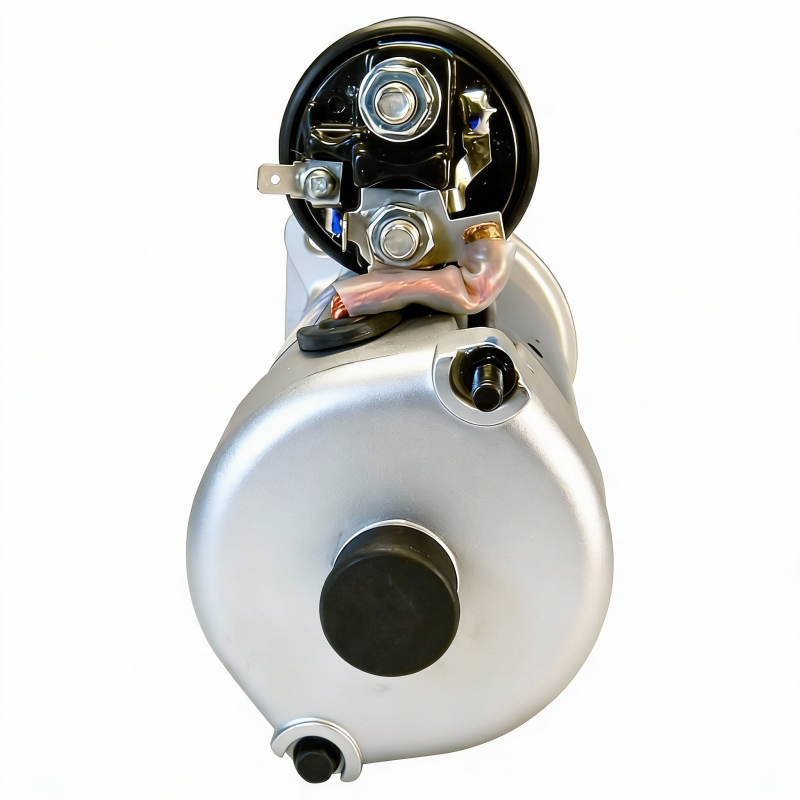

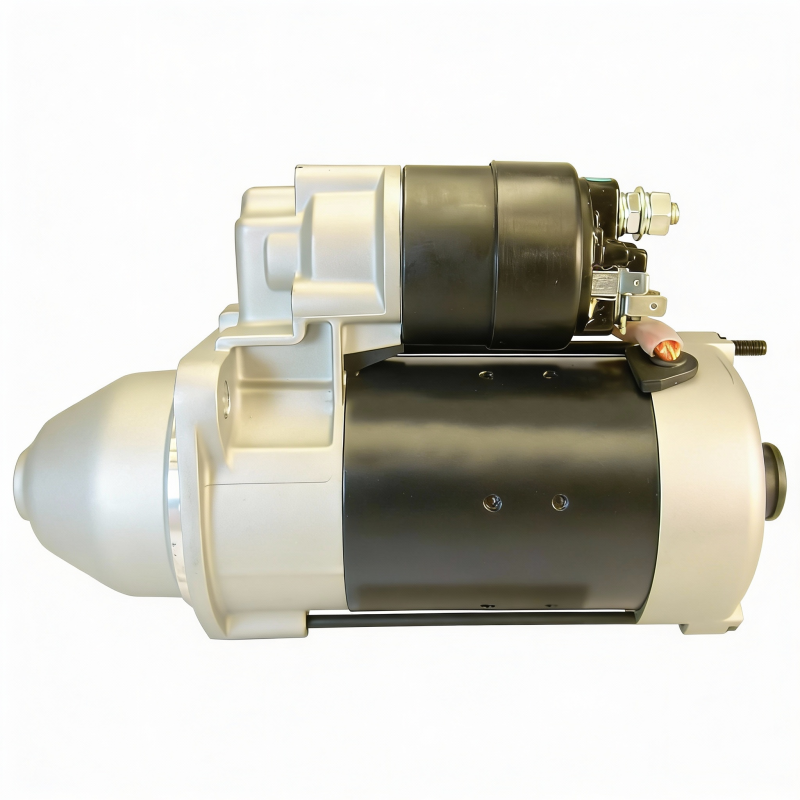

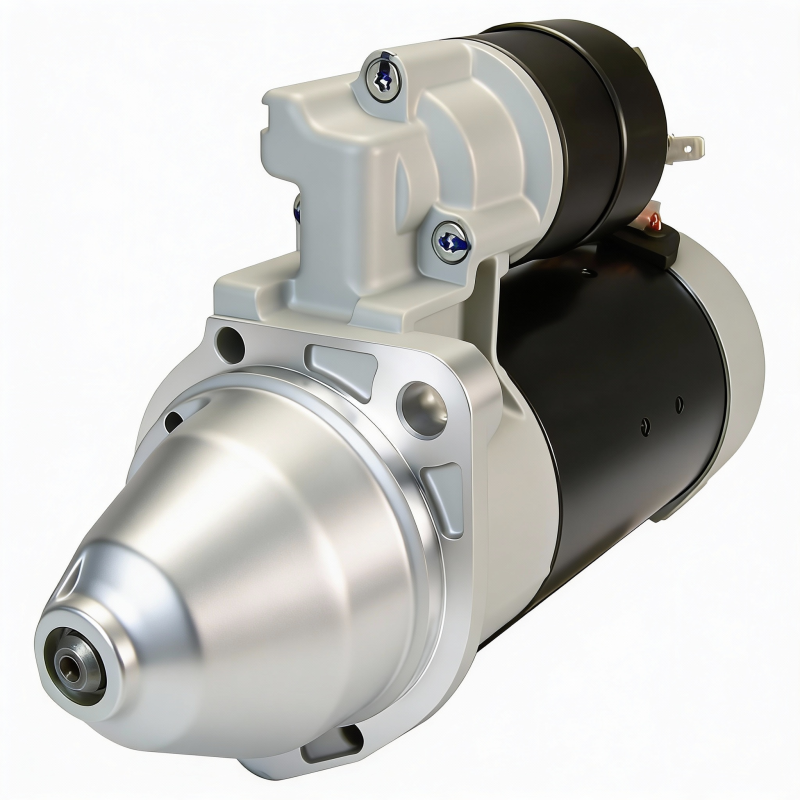

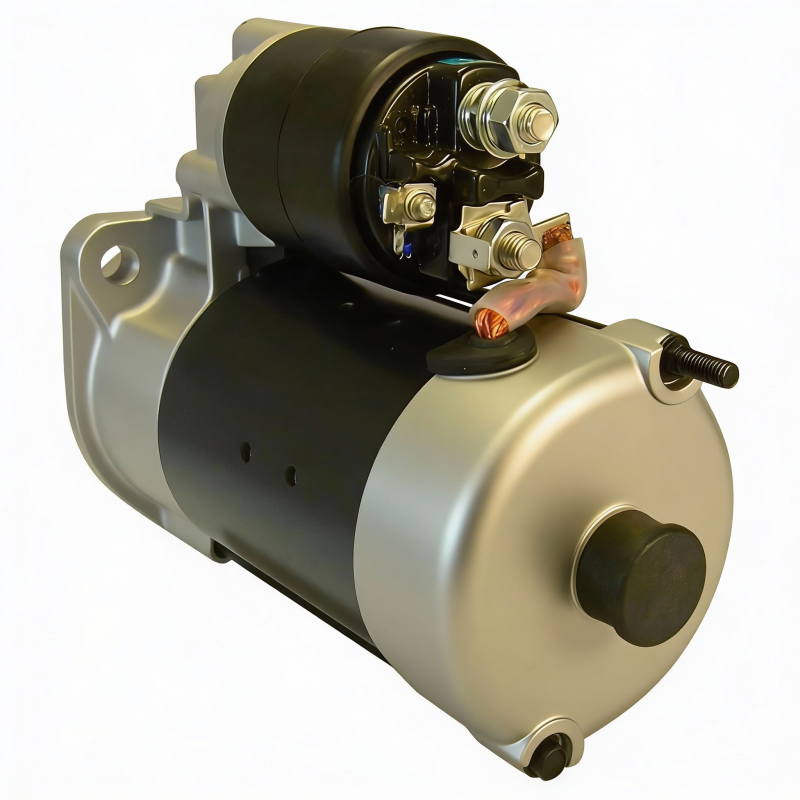

12V Starter Motor Compatible With Rt40 Ride-On Trencher F3m2011 3 Cylinder 2.3L 142Ci Diesel 42Hp

194548
OEM PART NUMBERS:
• 194-548
• 194548

SPECIFICATIONS:
• Type: Starter Motor (PLGR - Planetary Gear Reduction)
• Voltage: 12V
• Rotation: Clockwise (CW)
• Tooth Count: 9 Teeth Spline

FITS ENGINE:
• F3M2011 - 3 Cylinder Oil-Cooled Naturally Aspirated Diesel
• Displacement: 2.332L / 142 Cubic Inches
• Horsepower: 42.2 HP Gross / 39 HP Net
• Direct Fuel Injection
• Rated Engine Speed: 2300 RPM
• Bore: 3.7 Inches / Stroke: 4.4 Inches

FITS EQUIPMENT:
• RT40 Ride-On Trencher - 4x4 Hydrostatic Drive
• 63-Inch Maximum Trench Depth
• 4,200 lb Basic Unit Weight

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $281.19
Sale: $160.68
Save: 43%
Save: $120.51
Qty:
Free Shipping!

Description

RIDE-ON TRENCHERS:

RT40:
• RT40 Ride-On Trencher - F3M2011 3-Cylinder Oil-Cooled Diesel Engine
• Engine: F3M2011 - 2.332L (142ci), 42.2 HP Gross / 39 HP Net
• Direct Fuel Injection, Naturally Aspirated
• Tier 2 / EU Stage IIIA Emissions Compliant
• 4x4 Hydrostatic Drive
• Maximum Trench Depth: 63 Inches
• Trench Width: 6 to 12 Inches
• Basic Unit Weight: 4,200 lbs
• Max Forward Speed: 4.3 MPH
• Max Trenching Speed: 150 FPM at Full Load

COMPATIBLE ATTACHMENTS:
• H313 / H314 Chain Trencher
• A322 / A323 Backhoe
• Vibratory Plow
• Rock Saw
• 64-Inch 6-Way Backfill Blade

NOTE:
• RT40 was replaced by RT45 (Tier 4 engine) - verify starter part number compatibility
• Verify OEM part number 194-548 from your original unit before ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 13.2 lbs.
  • W8.0000” x H8.0000” x L14.0000”
  • Free Shipping!
