OEM PART NUMBERS:
• Ohio Motors: D468210XWF02, D468237XWF07A, D468242XWF07, D468247XW07A, D468247XWF07A, D468250XWF07, D468250XWF07A, D468255XWF07A, D482252X7707A
• Prestolite: MBD5112, MBD5112S
• JS Barnes / Haldex: 2200353, 2200858, 2200980
• JLG: 3160263, 3160264, 7011041
• Western Motor: W-5112, W5112
SPECIFICATIONS:
• Voltage: 24V DC
• Power: 4 HP
• Rotation: CW (Clockwise)
• Field Housing OD: 127mm / 5.000in
• Overall Length: 285mm / 11.220in
• Shaft: Chrysler Amplex Coupler Type
• Terminal 1: 3/8-16
• Terminal 2: 3/8-16
• Bearings: Double Ball Bearing
• Housing: Cast Aluminum Comm. and Drive Ends with Black Field Case
• Weight: 34.5 lbs / 15.68 kg
• Condition: New
APPLICATION:
• JLG E2 Series Scissor Lifts (1998-2012)
• Haldex Barnes Hydraulic Pump Systems

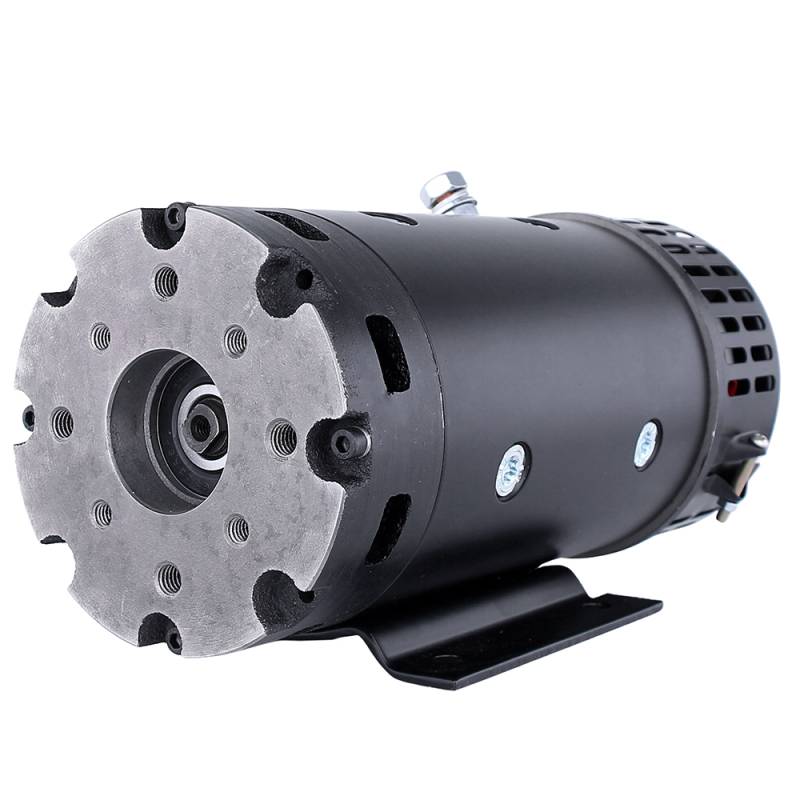

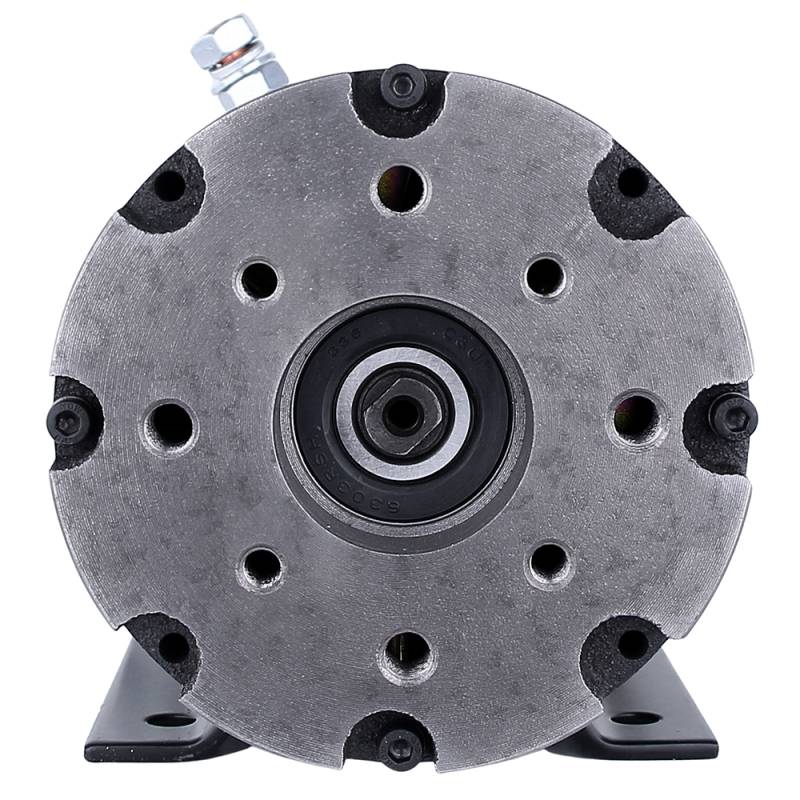

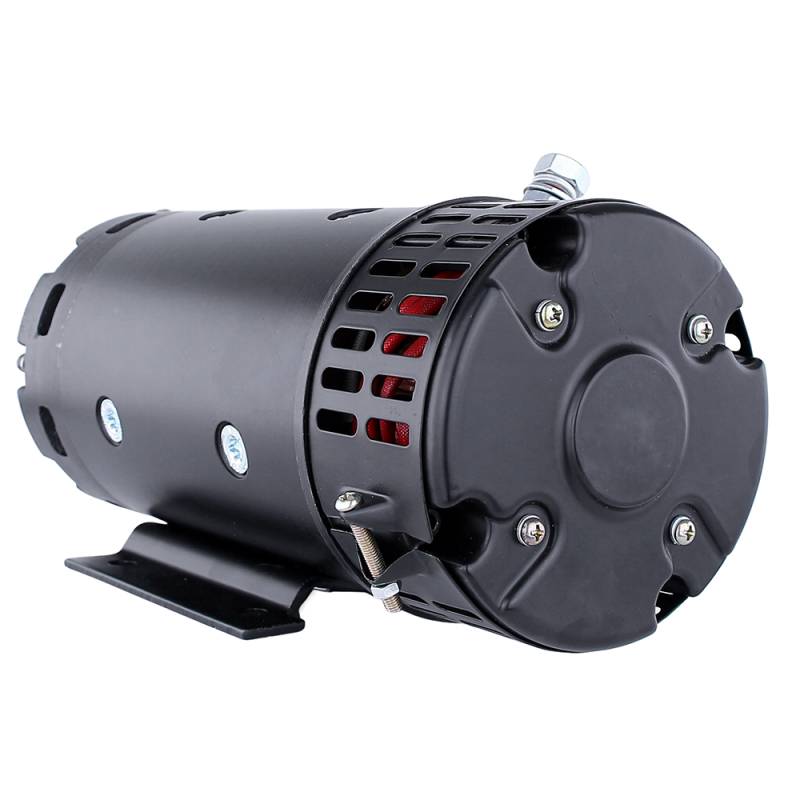

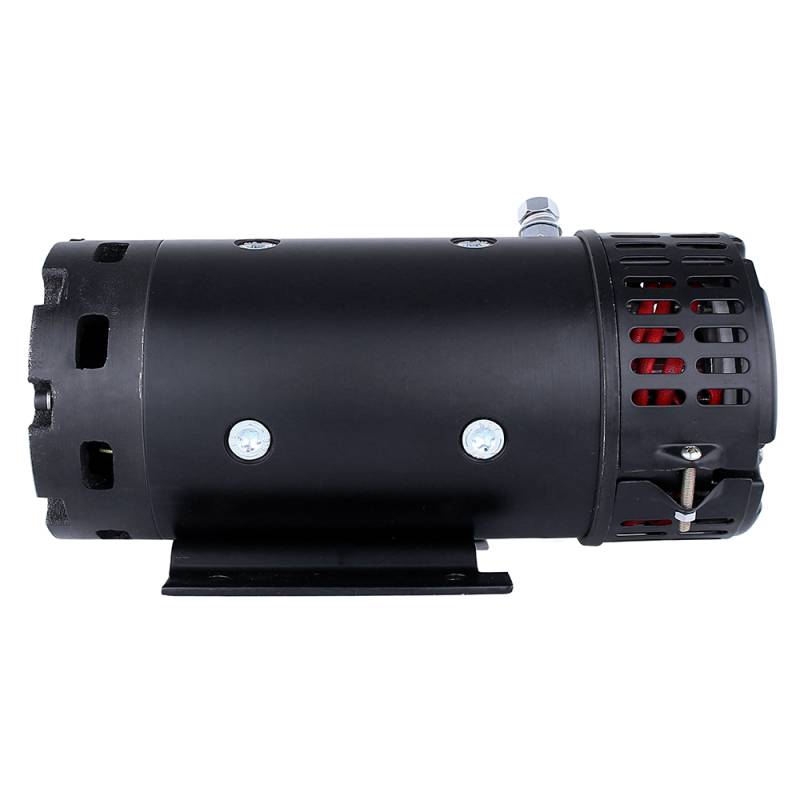

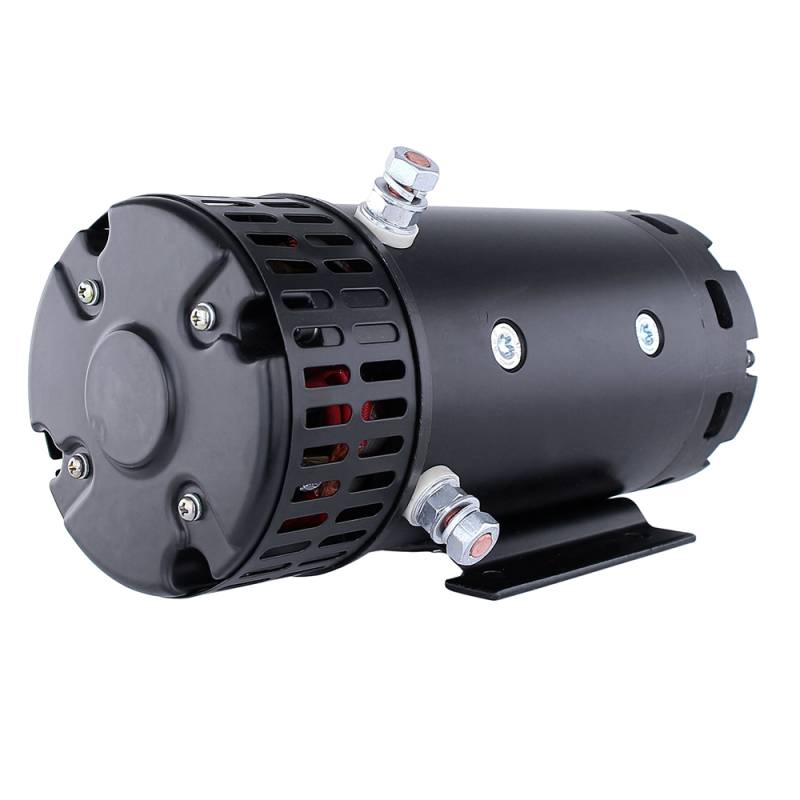

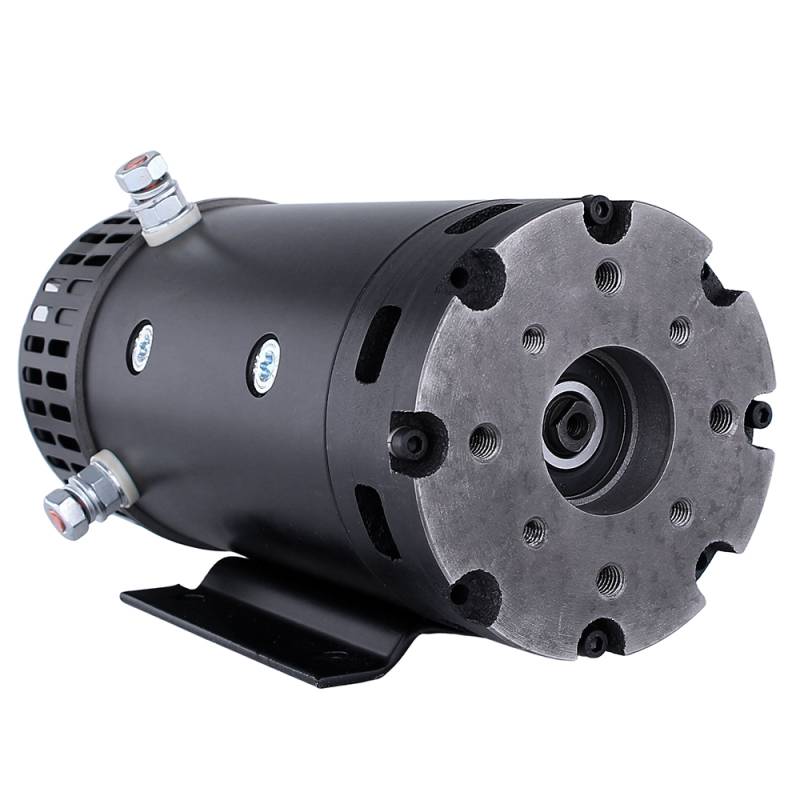

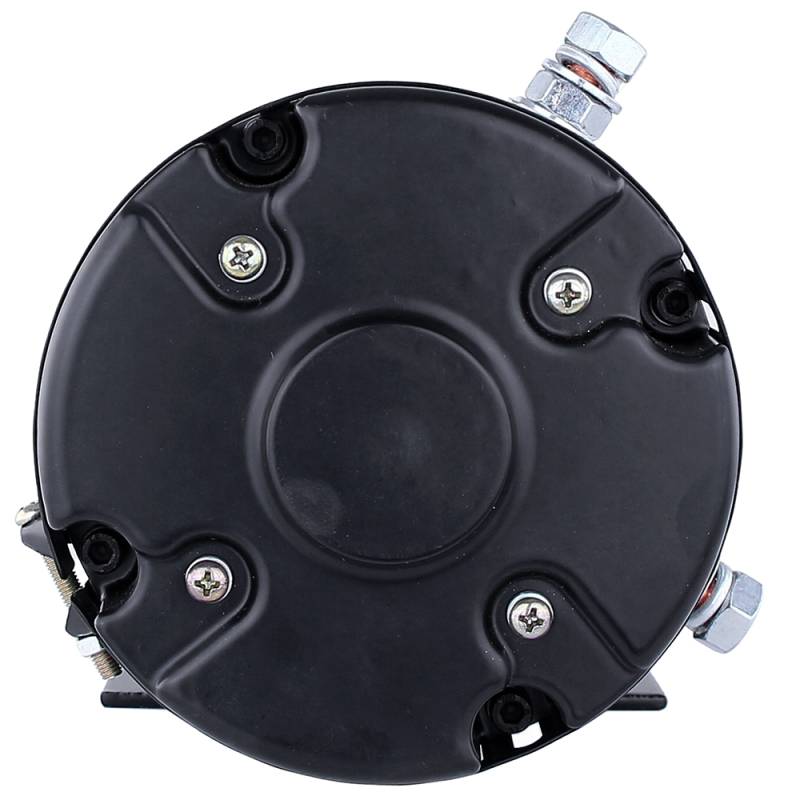

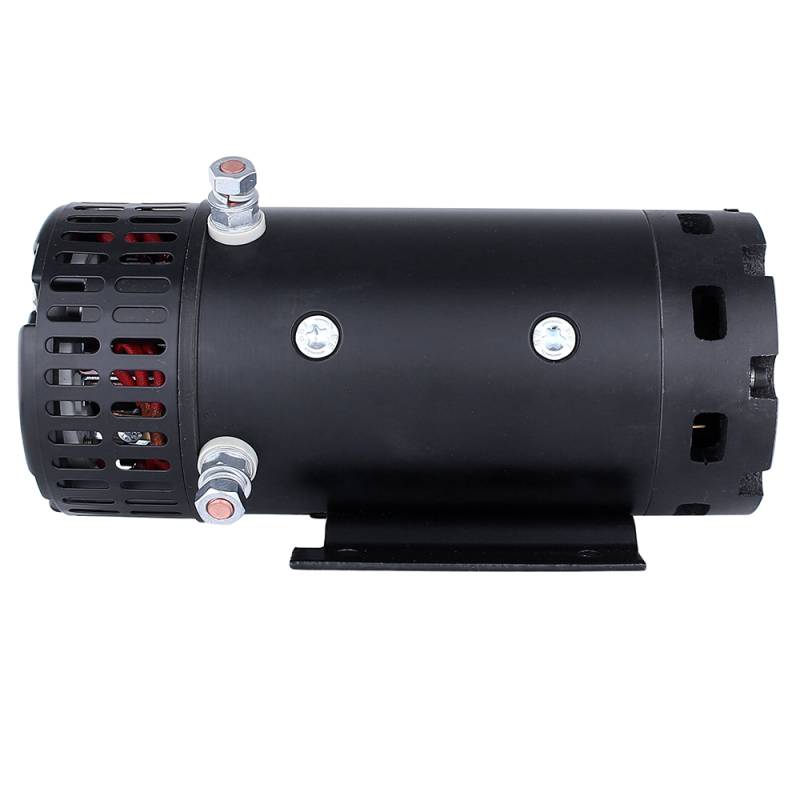

24V Electric Pump Motor for JLG E2 Series Scissor Lifts
Direct replacement 24 Volt hydraulic pump motor designed for JLG E2 series electric scissor lifts including 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, and 3246E2 models manufactured from 1998-2012. This heavy duty 4 HP motor features a Chrysler Amplex coupler type shaft, double ball bearing construction, and cast aluminum commutator and drive ends for long service life in demanding material handling applications. Replaces Prestolite MBD5112, Ohio Motors D468210XWF02, and Haldex Barnes 2200980.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
