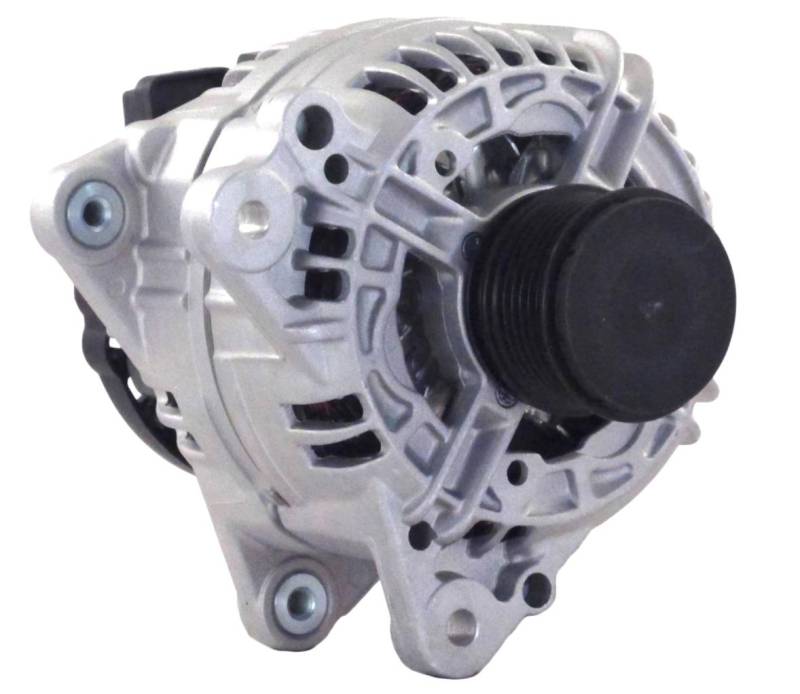

New 12V 180A Alternator Compatible With Ir/If Volkswagen 2006-08 Passat 3.6L Abo0348 A3221 10907

11221
VOLKSWAGEN PART NUMBERS:
• 03G-903-023, 03G903023
• 03G-903-023X, 03G903023X

BOSCH PART NUMBERS:
• 0-121-715-003, 0121715003
• 0-121-715-103, 0121715103
• AL0849X

OTHER PART NUMBERS:
• Lucas LRA2931, LRA02931
• Mercedes-Benz 000-154-02-02, 0001540202
• Remy 12768
• Excel 10907
• Valeo 489295
• Wilson 90-15-6482, 90156482

SPECIFICATIONS:
Type: Alternator, internal regulator, internal fan
Voltage: 12V
Amperage: 180A
Rotation: CW (clockwise)
Pulley: 6 groove clutch (overrunning), class SC6
Pulley OD: 56 mm (groove OD 55.90 mm)
Pulley hub to first groove: 14.5 mm
Pulley overall length: 40.5 mm
Plug clock: 2:00
Plug code: 367
Output stud: B+ M8
Ground: Negative
Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $424.34
Sale: $242.48
Save: 43%
Save: $181.86
Qty:
Free Shipping!

Description

VOLKSWAGEN PASSAT 3.6L V6 APPLICATIONS:
• 2006-2008 Volkswagen Passat W/3.6L
• Volkswagen Passat 3.6L V6 2006, Bosch unit, 180 amp alternator option
• Volkswagen Passat 3.6L V6 2007, Bosch unit, 180 amp alternator
• Volkswagen Passat 3.6L V6 2008, 180 amp alternator

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 180A
• Rotation: CW (clockwise)
• Pulley: 6 groove clutch (overrunning) pulley, class SC6
• Pulley OD: 56 mm (groove OD 55.90 mm)
• Pulley hub to first groove: 14.5 mm
• Pulley overall length: 40.5 mm
• Regulator: Internal (IR)
• Fan: Internal (IF)
• Plug clock: 2:00
• Plug code: 367
• Output stud: B+ M8
• Ground: Negative
• Condition: New aftermarket

Shipping Information

  • Item Requires Shipping
  • 13.0 lbs.
  • W9.0000” x H9.0000” x L9.0000”
  • Free Shipping!
