REPLACEMENT PART NUMBERS:
• 9130450047 / 7536 / 15747 / 15877 / 16548
• 160799 / 25314 / 25981 / 25982 / 17102
• 18184 / 26626 / 26629 / D2000 / M1900
• 458058 / 11212449 / 7682 / AMJ4635
• MRV-B4 / MRV-B5 / MRV-B7
SPECIFICATIONS:

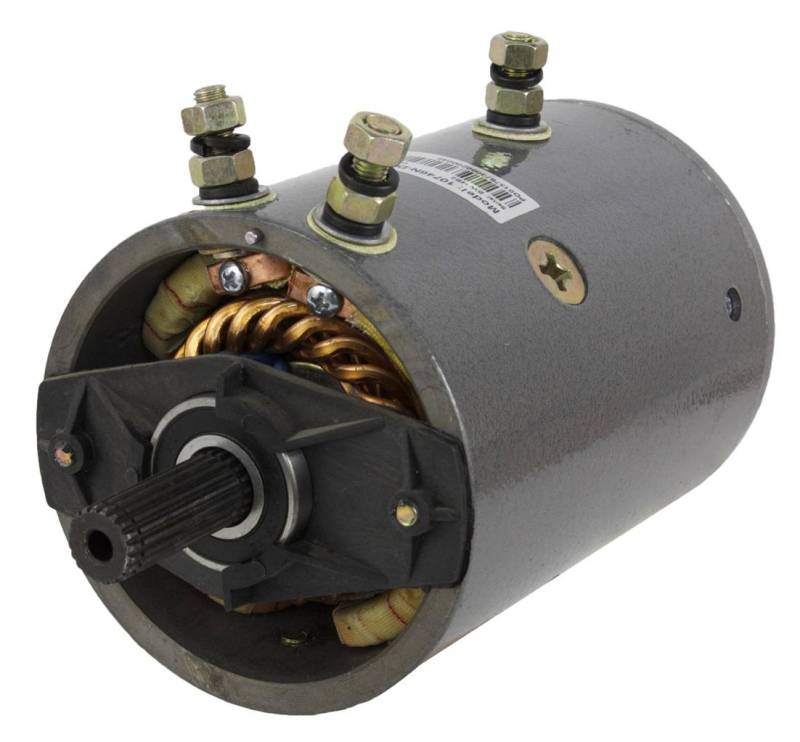

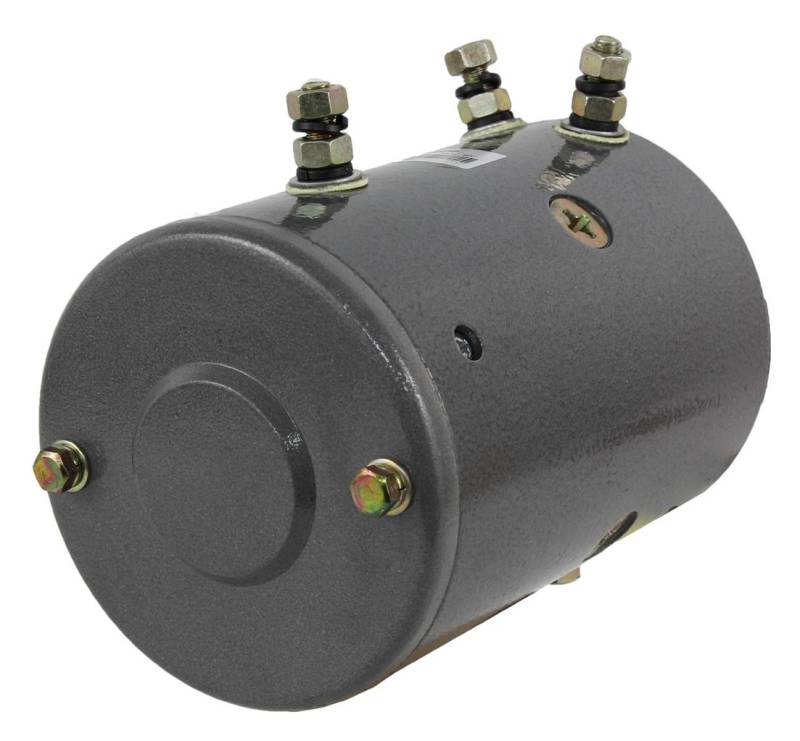

• Type: Winch Motor
• Unit Type: Warn
• Voltage: 12V
• Power: 4.5 Horsepower
• RPM: 2100
• Rotation: Reversible / Bidirectional
• Posts: 3
• Shaft: 20 Straight Splines (16.6mm / 0.654in OD)
• Field Housing OD: 114.3mm / 4.500in
• Overall Length: 232.5mm / 9.154in
• Terminal Size: M8-1.25 (All 3)
• Weight: 20 lbs
• Condition: New
WINCH APPLICATIONS:
• Warn XD9000, XD9000I, MX8000, M8000, MX6085
• Compatible with Various Warn and Aftermarket Winches
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
