OEM PART NUMBERS:
• OMC/BRP: 438786 / 0438786
• OMC/BRP: 439937 / 0439937 (supersedes 438786)
• OMC/BRP: 5005254 / 05005254 (supersedes 439937 — current number)
AFTERMARKET CROSS REFERENCE:
• API Marine: PT305NM
• Arco Marine: 6238
• 18-6281
SPECIFICATIONS:

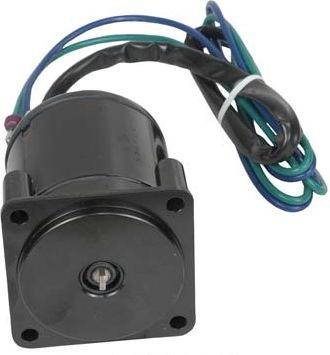

• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• OD: 75.6mm (2.976 in)
• Overall Length: 104mm (4.094 in)
• Shaft OD: 8mm (0.315 in)
• Shaft: 2.5mm Drive Tang
• Connection: 2-Wire with Female Sealed Terminal Ends
• Mounting: 4-Bolt with 7mm Unthreaded Holes
• Includes: O-Ring
• Current Type: DC
• Weight: Approximately 3.16 lbs (1.44 kg)
• SAE J1171 Marine Ignition Protection Certified
• Condition: New
EVINRUDE / JOHNSON / OMC OUTBOARD APPLICATIONS:
• Evinrude FFI 75-175HP V4/V6 60° (1998-2005)
• Evinrude DI 200-250HP V6 60° (2003-2005)
• Evinrude E-TEC 115-300HP V4/V6 60° (2004-2018)
• Johnson FFI 90-175HP V4/V6 60° (1998-2005)
• All models with 2-wire female sealed terminal tilt trim motor
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
