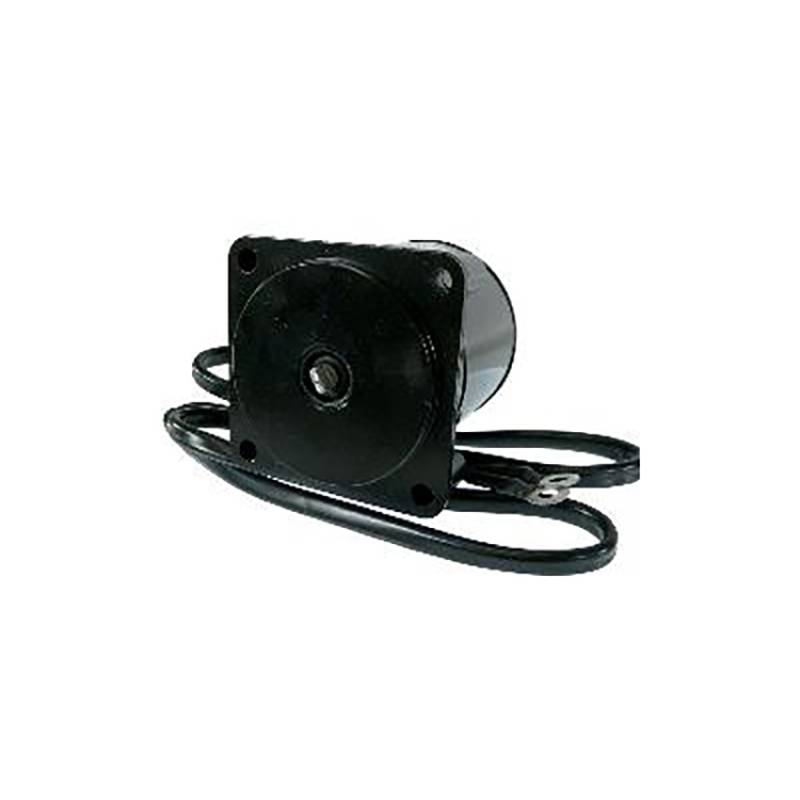

Tilt Trim Motor Compatible With Yamaha 115 130 150 175 200 225 Hp Outboard F115 F150 F200 F225

OEM PART NUMBERS:
• Yamaha 64E Series: 64E-43880-00-00 / 64E4388000-00 / 64E-43880-01-00 / 64E-43880-02-00 / 64E-43880-03-00 / 64E-43880-04-00
• Yamaha 68V Series: 68V-43880-00-00 / 68V-43880-01-00 / 68V-43880-03-00 / 68V-43880-04-00
• Yamaha 67H Series: 67H-43880-00-00 / 67H-43880-01-00 / 67H-43880-02-00 / 67H-43880-03-00 / 67H-43880-04-00 / 67H-43880-10-00
• Mercury / Quicksilver: 8M6007575
• OMC / Johnson Evinrude: 5036732
• Sierra: 18-6783 / 18-6783-1
• ARCO Marine: 6240



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 6240
• Sierra: 18-6783
SPECIFICATIONS:
• Unit Type: Tilt & Trim Motor
• Voltage: 12V
• Rotation: Reversible
• OD: 3.634in / 92.3mm
• Shaft OD: 0.315in / 8mm
• Length: 4.425in / 112.4mm
• Connection: 2-Wire, Ring Terminal Ends
• Mounting: Bolt Mount
• Includes O-Ring
• Condition: New

YAMAHA OUTBOARD APPLICATIONS:
• 2-Stroke: 115-300 HP (1997-2009) — 115TLR, 130TXR, 150TLR, 175TLR, 200TXR, 225TXR, VZ250, VZ300
• 4-Stroke: F115-F225 (2000-2014) — F115TLR, F150TLR, F175LA, F200LCA, F225TLR
• VF Series: VF150/VF175/VF200/VF225/VF250 (2012-2017)
• HPDI: VZ150/VZ175/VZ225/VZ250/VZ300 (2003-2009)
• Johnson: BJ60PL4, BJ70PL4, J60PL4, J70PL4 60-70 HP (2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
