THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

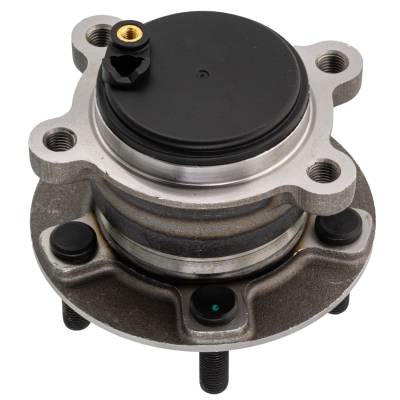

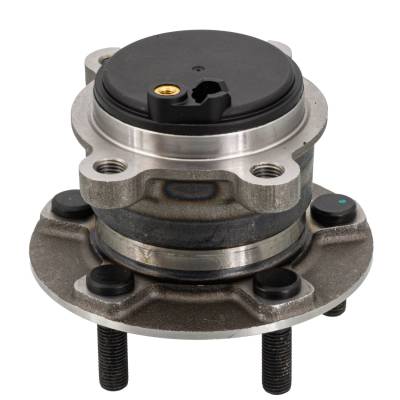

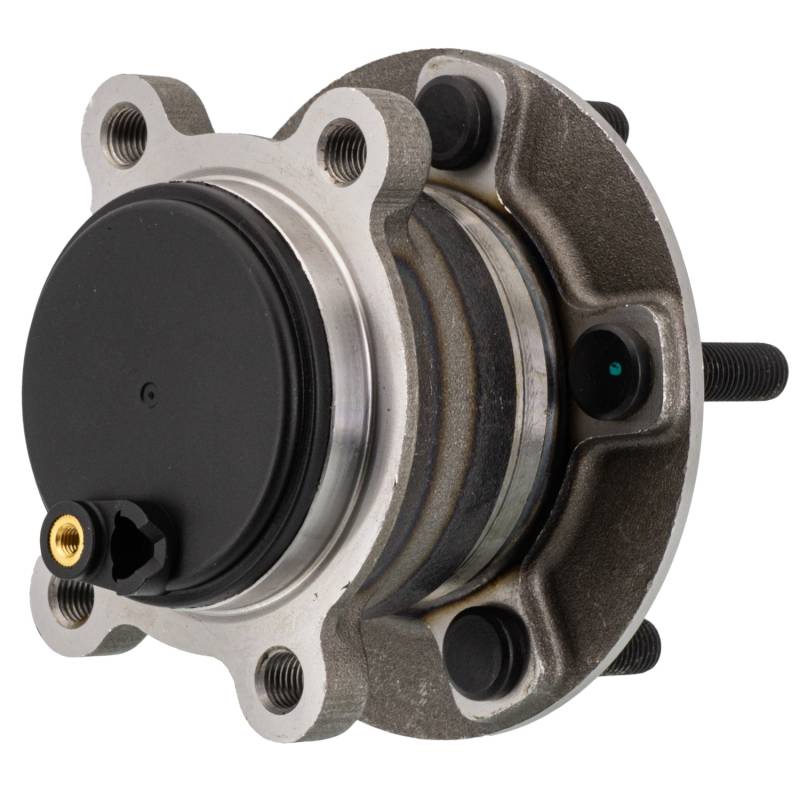

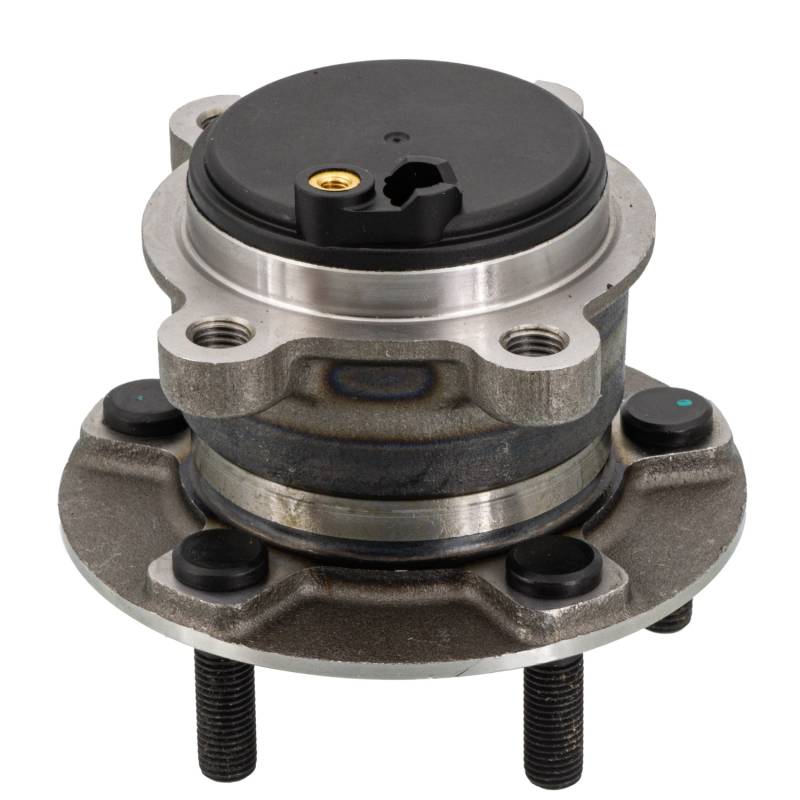

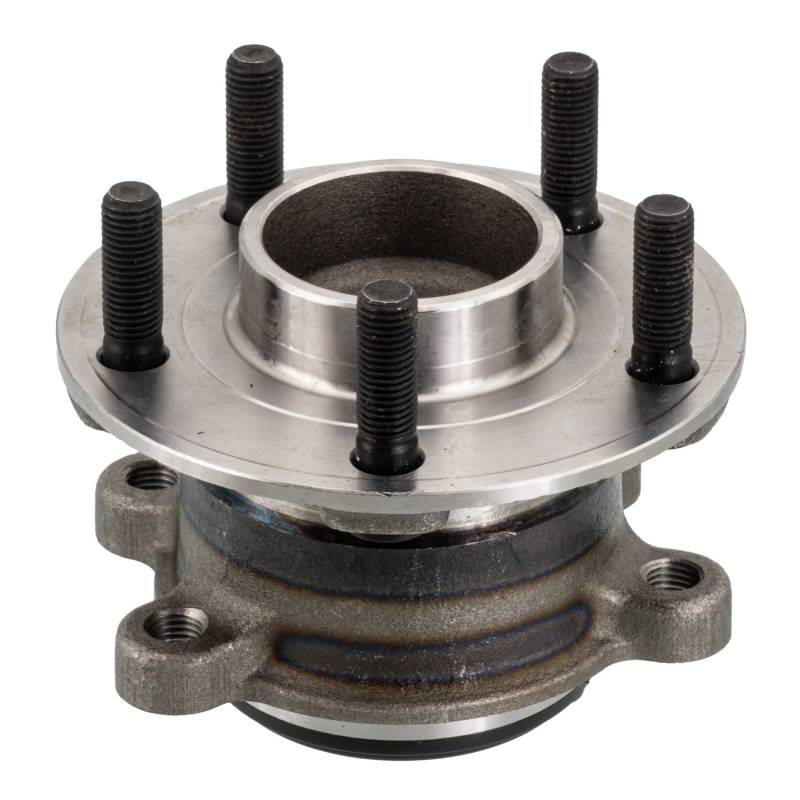

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 62.6
ABS SENSOR RING DIAMETER (MM): 2.465
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.398
FLANGE BOLT SIZE (MM): 35.5
FLANGE BOLT THREAD SIZE: M12X1.50
FLANGE DIAMETER (INCH): 2.5
FLANGE OFFSET (INCH): 2.48
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.252
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.347
HUB PILOT DIAMETER (INCH): 3.205
LUG BOLT THREAD SIZE: M12X1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 88
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.346
TOTAL HUB DIAMETER (MM): 135.8
TOTAL HUB HEIGHT (IN): 4.606
TOTAL HUB HEIGHT (MM): 117
WIRING HARNESS INCLUDED: NO
REPLACES:
COAST TO COAST: 900042
APPLICATIONS:
FORD ESCAPE (2020-2024)
LINCOLN CORSAIR (2020-2024)
