THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

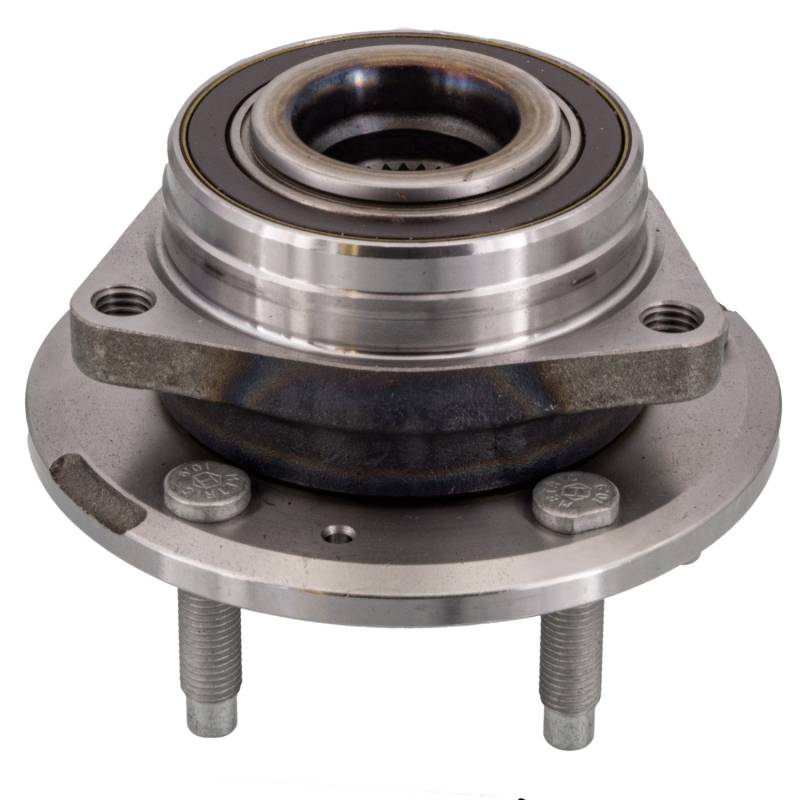

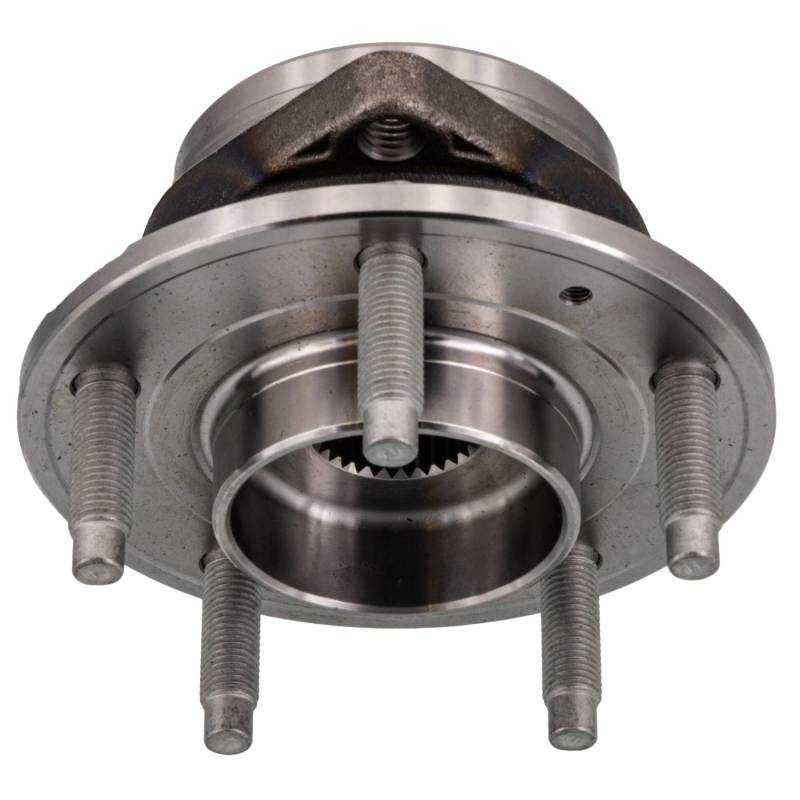

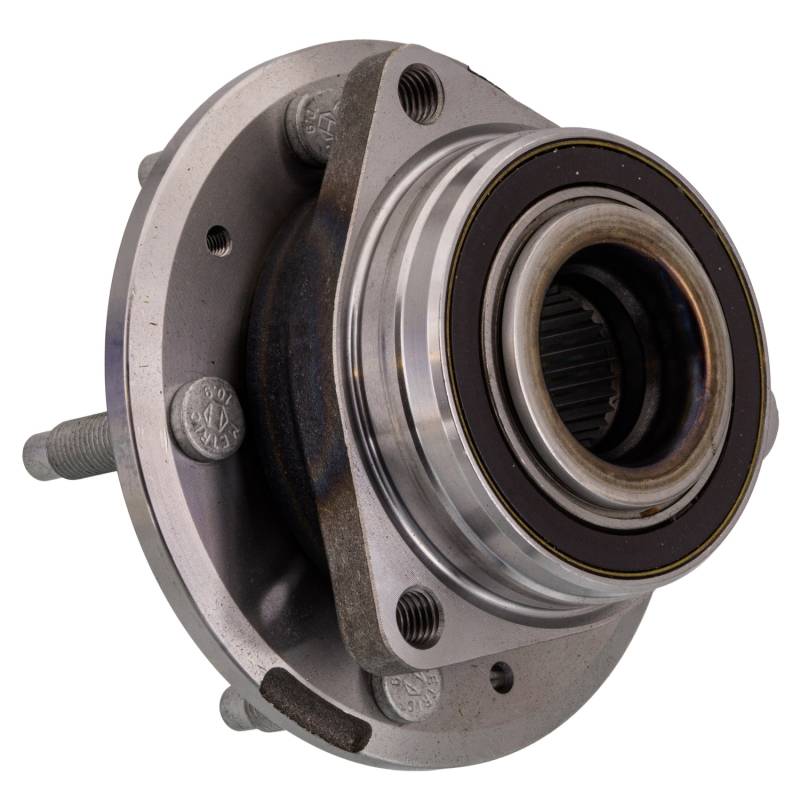

PRODUCT TYPE: HUB ASSEMBLY

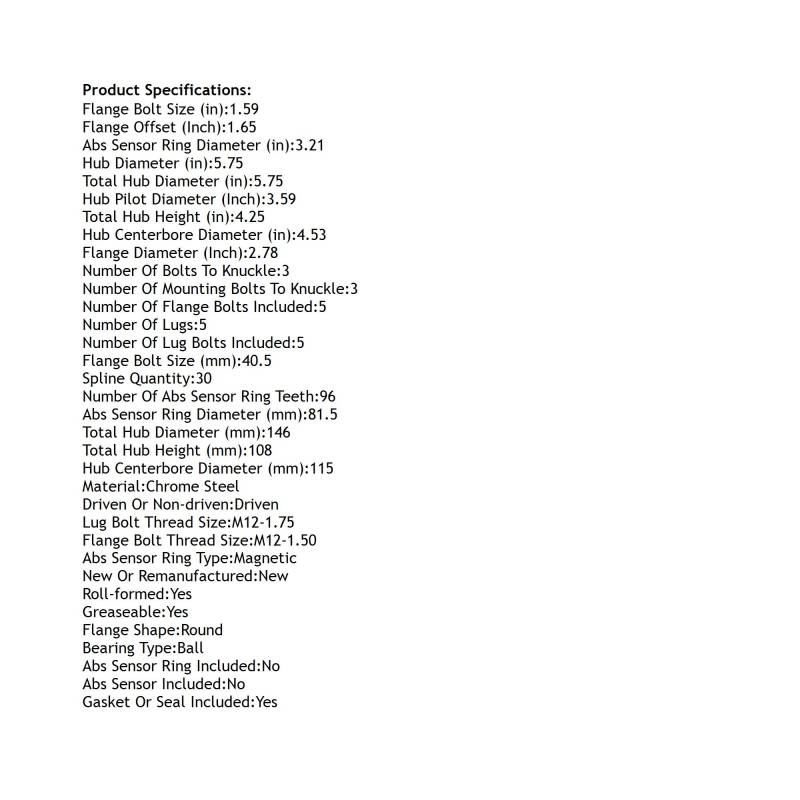

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 3.21
ABS SENSOR RING DIAMETER (MM): 81.5
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.59
FLANGE BOLT SIZE (MM): 40.5
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.75
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.75
TOTAL HUB DIAMETER (MM): 146
TOTAL HUB HEIGHT (IN): 4.25
TOTAL HUB HEIGHT (MM): 108
REPLACES:
ACDELCO: 13547478
AUTOPART INTERNATIONAL: 1411-711507
CENTRIC PARTS: 40162005
COAST TO COAST: 900000
GENERAL MOTORS: FW447
NAPA: PBR931123
APPLICATIONS:
CHEVROLET EQUINOX (2018-2021)
GMC TERRAIN (2018-2023)
