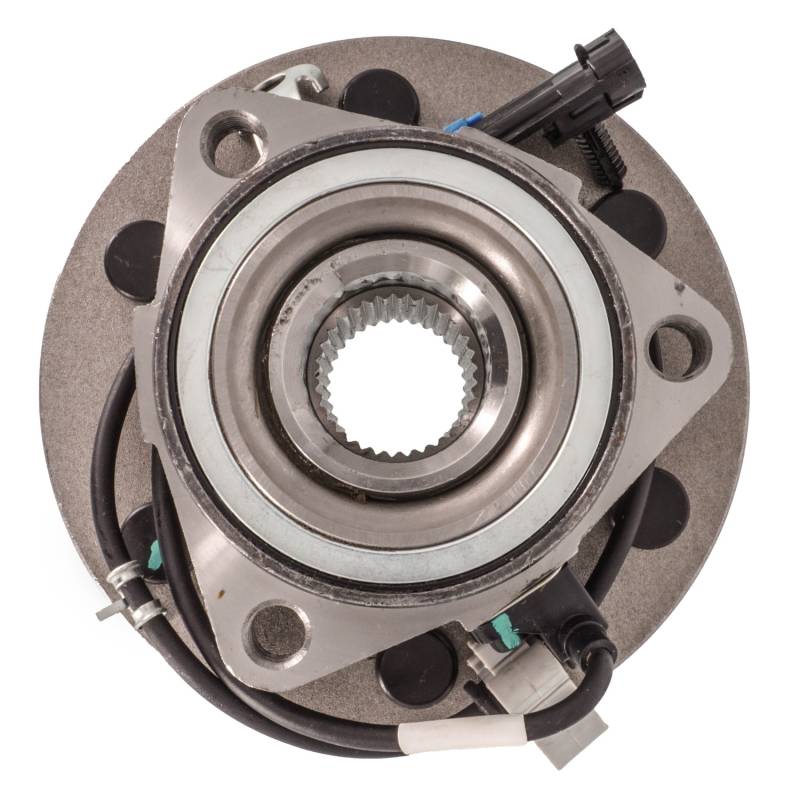

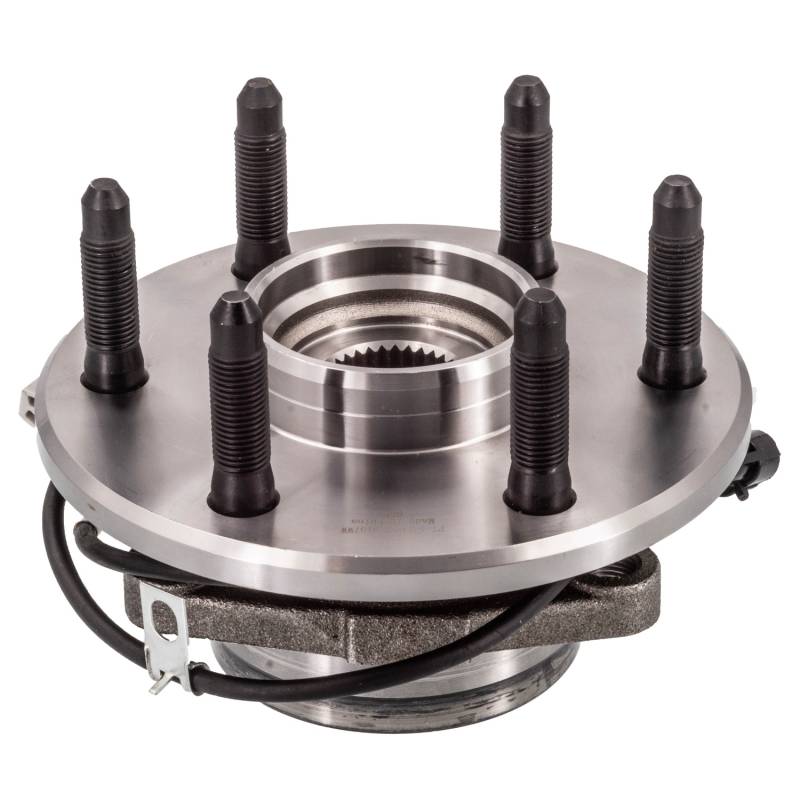

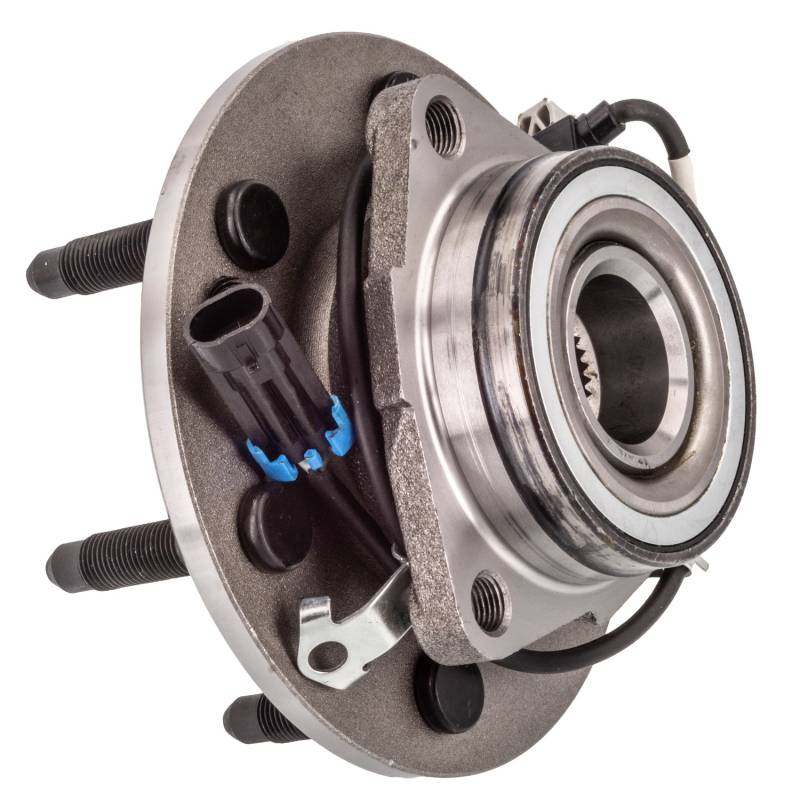

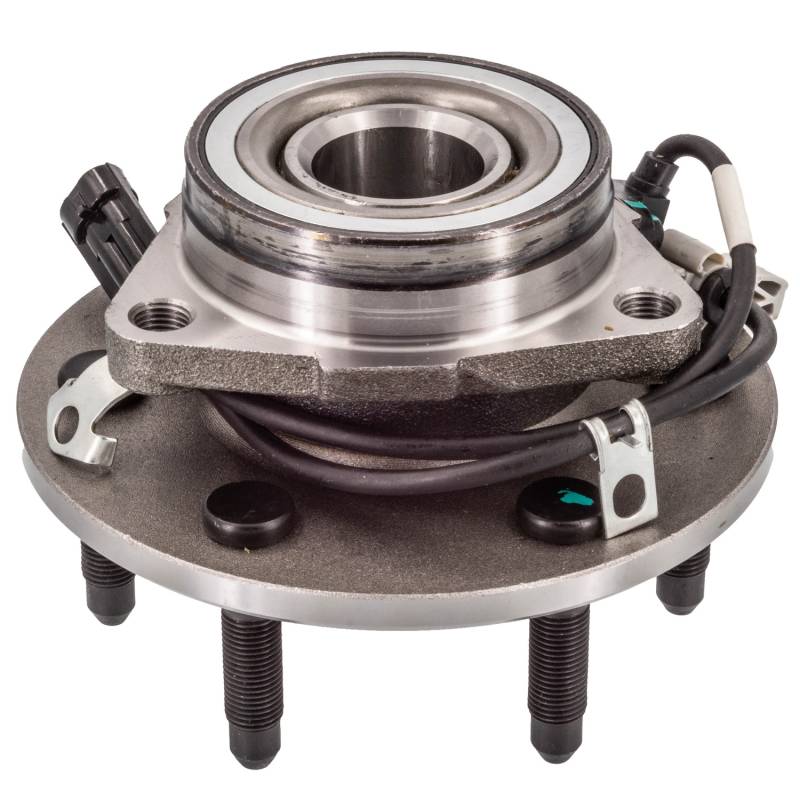

New Hub Assembly Compatible With Chevrolet Gmc Astro Safari 4.3L 2003 2004 2005 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.138
FLANGE BOLT SIZE (MM): 54.3
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 3.083
FLANGE OFFSET (INCH): 1.961
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.087
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.087
TOTAL HUB DIAMETER (MM): 180
TOTAL HUB HEIGHT (IN): 5.142
TOTAL HUB HEIGHT (MM): 130.6
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 29.724

REPLACES:
ACDELCO: FW169
AUTOPART INTERNATIONAL: 1411-49185
BCA: WE61574
CENTRIC PARTS: 40266019
FAG US: 102197
GENERAL MOTORS: 15112450
GSP: 106092
MEVOTECH: H515092
MOOG HUB ASSEMBLIES: 515092
NAPA: PBR930671

APPLICATIONS:
CHEVROLET ASTRO (2003-2005)
GMC SAFARI (2003-2005)
