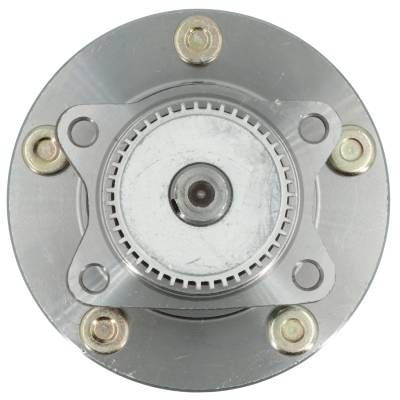

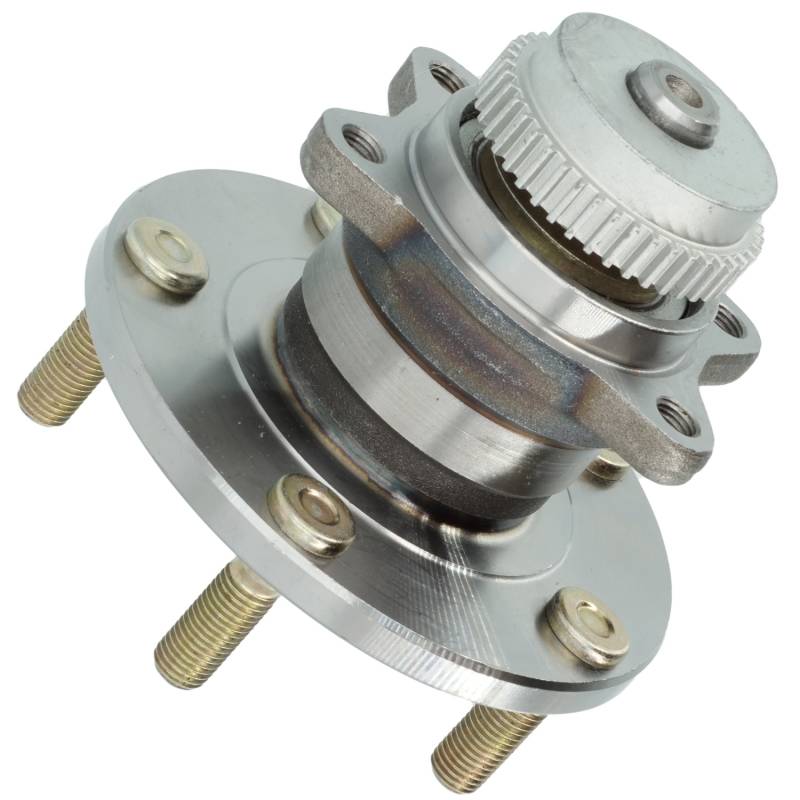

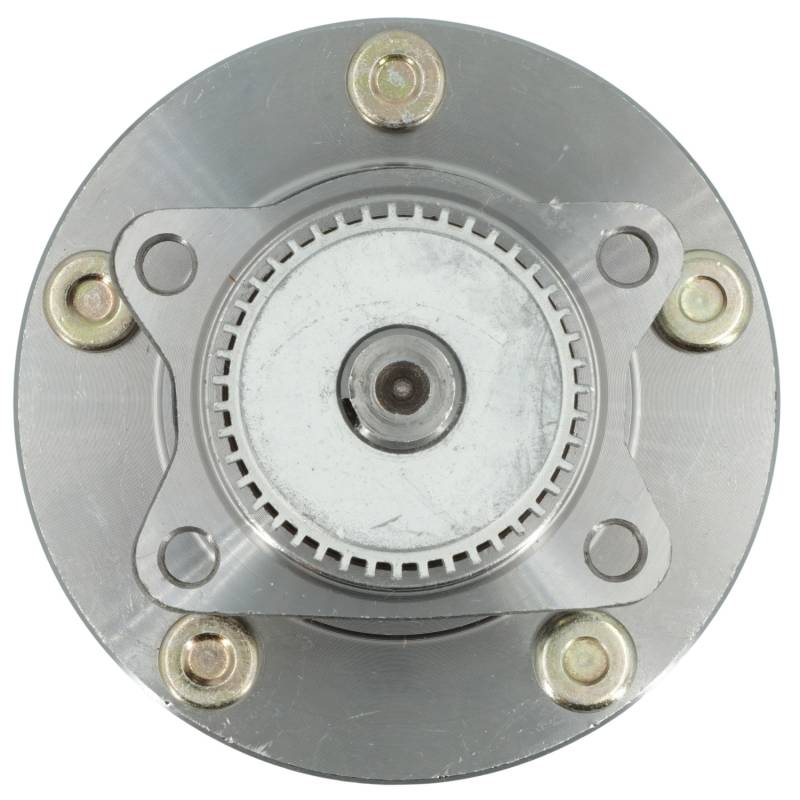

New Hub Assembly Compatible With Mitsubishi Diamante 3.5L 1997 1998 1999 2000 2001 2002 2003 2004 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.44
ABS SENSOR RING DIAMETER (MM): 62
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.35
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 5.421
FLANGE OFFSET (INCH): 2.318
FLANGE SHAPE: MODIFIED
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.41
HUB PILOT DIAMETER (INCH): 2.598
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.41
TOTAL HUB DIAMETER (MM): 137
TOTAL HUB HEIGHT (IN): 5.29
TOTAL HUB HEIGHT (MM): 134
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-45887
BCA: WE61283
BECK/ARNLEY: 051-6385
CENTRIC PARTS: 40646007
GSP: 513506
MEVOTECH: MB80301
MOOG HUB ASSEMBLIES: 512506

APPLICATIONS:
MITSUBISHI DIAMANTE (1997-2004)
