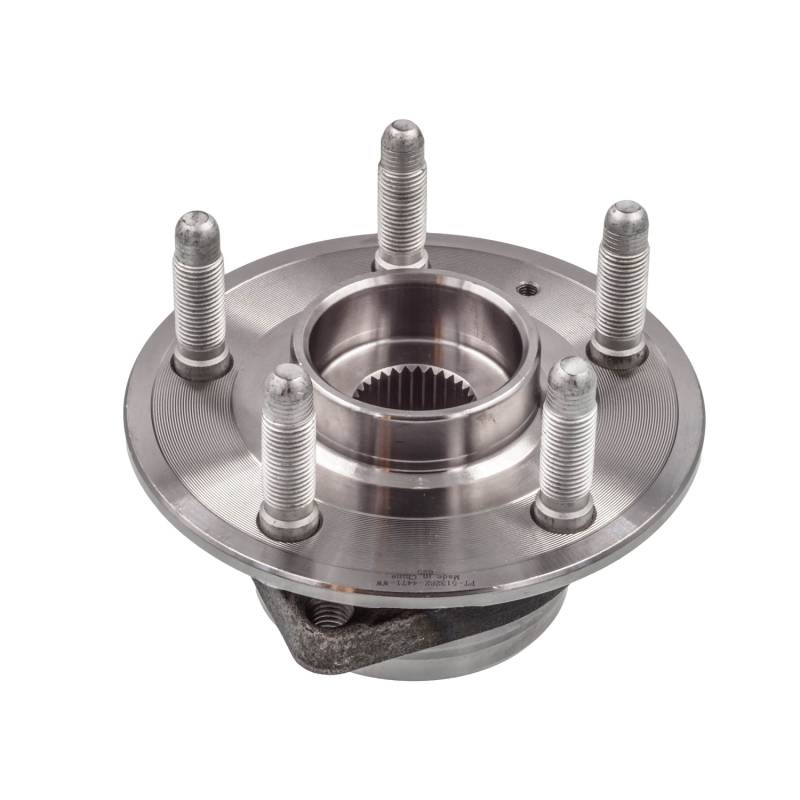

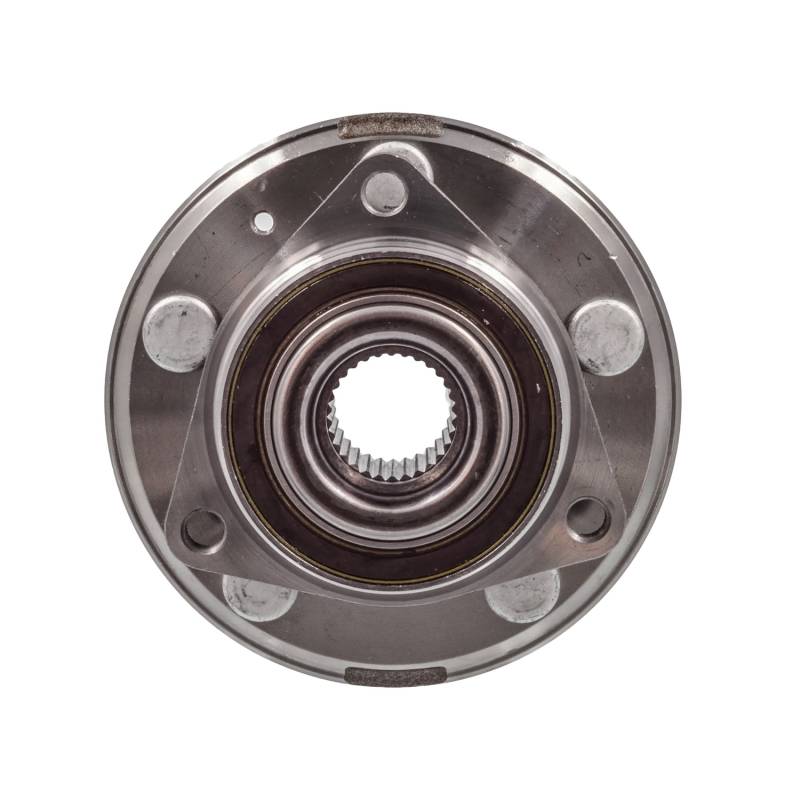

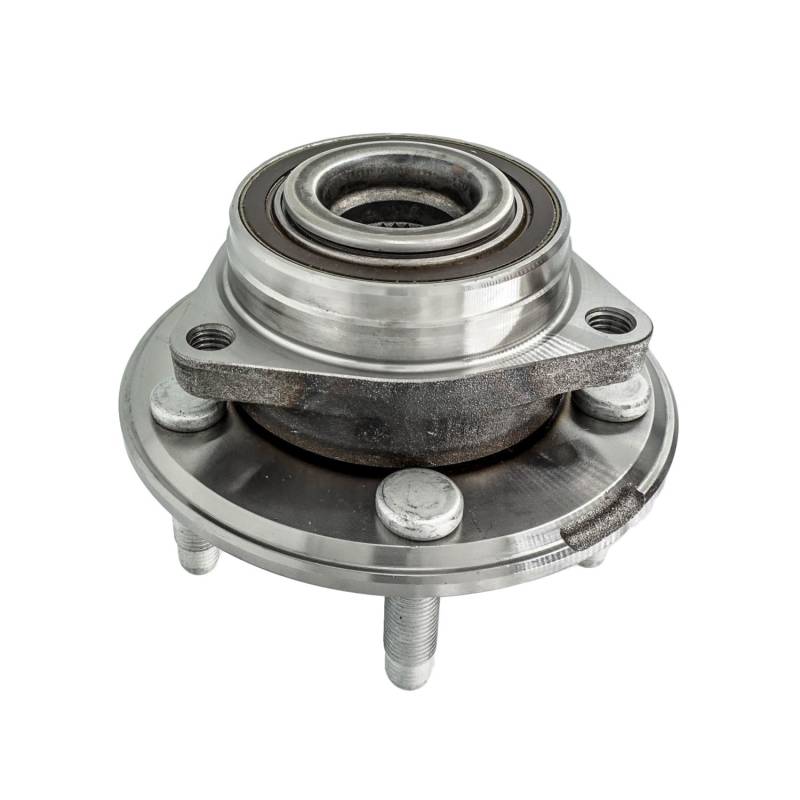

New Hub Assembly Compatible With Cadillac Chevrolet Cts Camaro Xts Impala 2008 2009 2010 2011 2012

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE DIAMETER (INCH): 6.22
FLANGE OFFSET (INCH): 2.712
FLANGE SHAPE: MODIFIED
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.72
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.18
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 6.18
TOTAL HUB DIAMETER (MM): 157
TOTAL HUB HEIGHT (IN): 6.75
TOTAL HUB HEIGHT (MM): 171
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: 13546785 FW381 FW418
AUTOPART INTERNATIONAL: 1411-258036
BCA: WE60902
CENTRIC PARTS: 40162000
FAG US: 102230
GENERAL MOTORS: 13589509
GSP: 104282
MEVOTECH: H513282
MOOG HUB ASSEMBLIES: 513282
NAPA: PBR930674

APPLICATIONS:
CADILLAC CTS (2008-2019)
CHEVROLET CAMARO (2010-2015)
CADILLAC XTS (2018-2019)
CHEVROLET IMPALA (2018-2020)
