THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

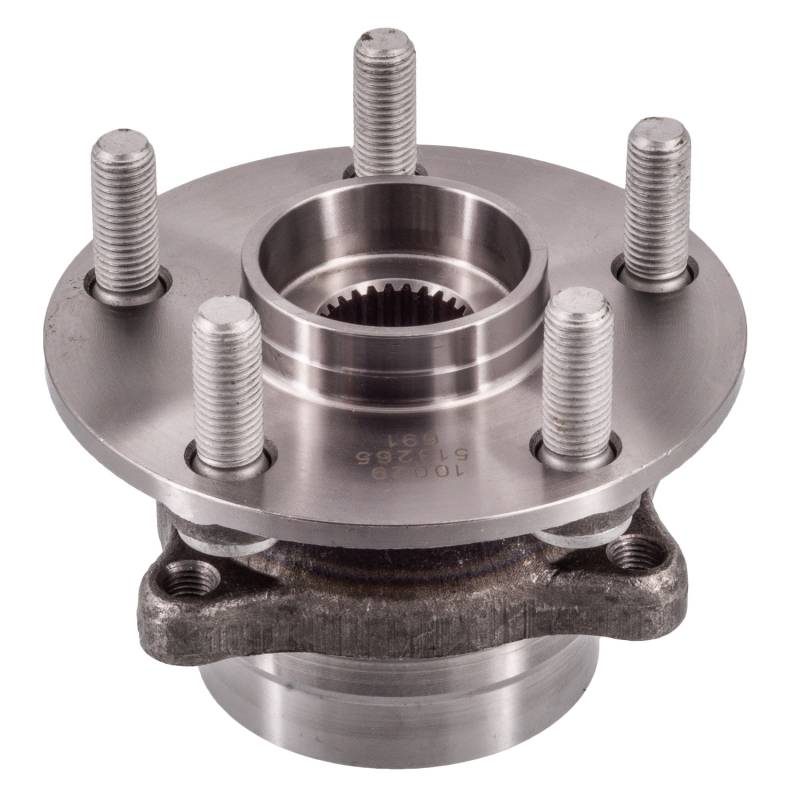

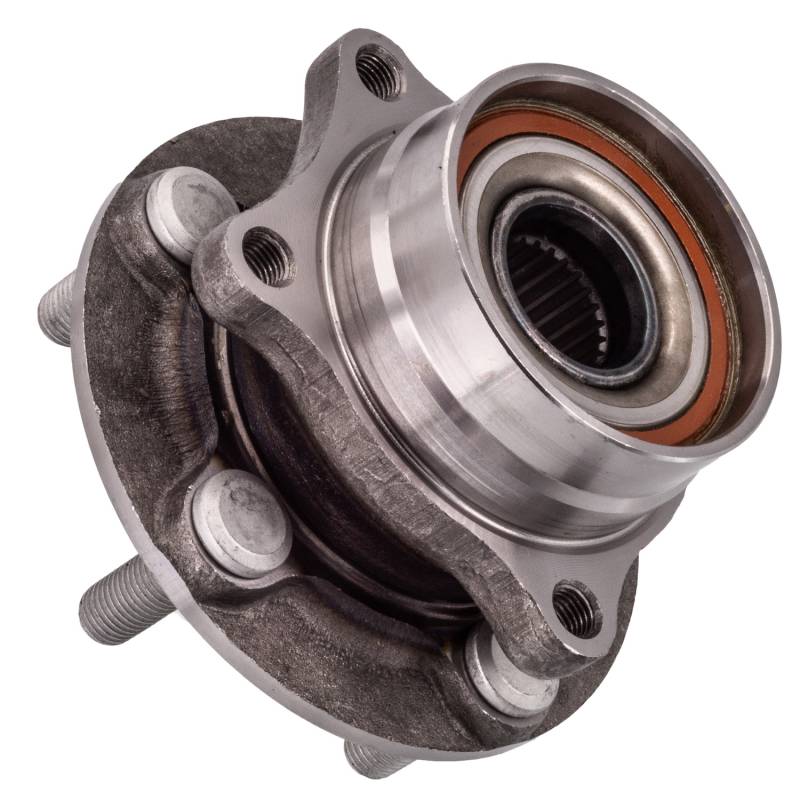

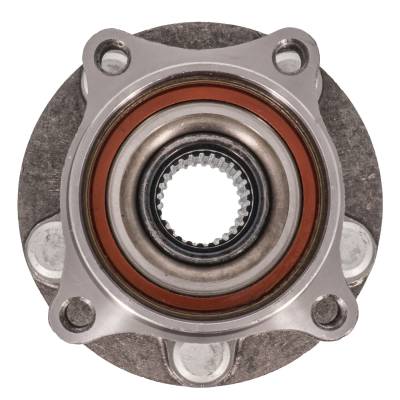

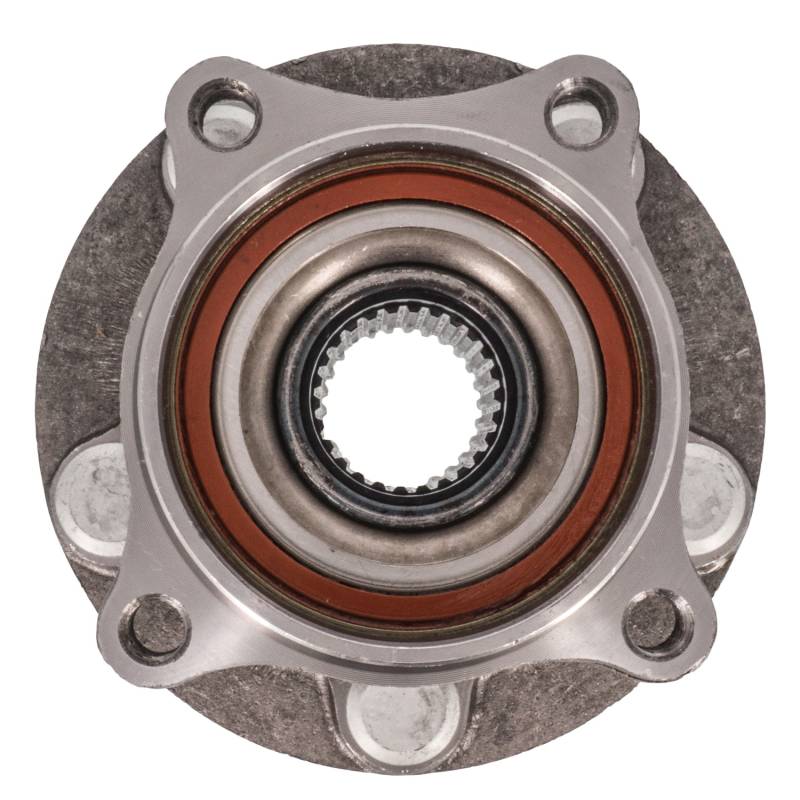

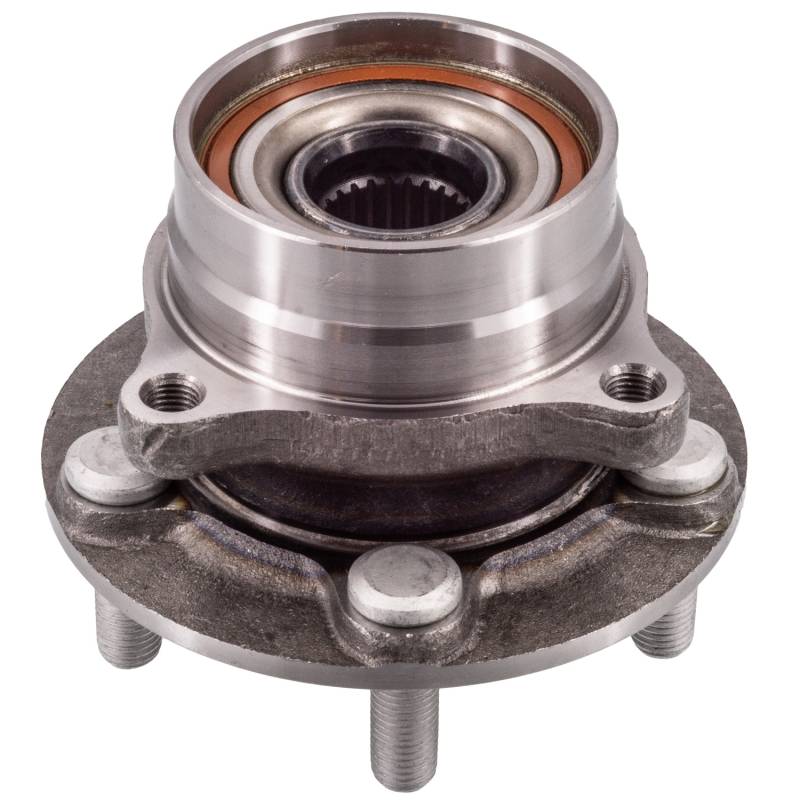

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.654
FLANGE BOLT SIZE (MM): 42
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.165
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 4.921
HUB PILOT DIAMETER (INCH): 3.071
LUG BOLT THREAD SIZE: M10X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 4.921
TOTAL HUB DIAMETER (MM): 125
TOTAL HUB HEIGHT (IN): 3.984
TOTAL HUB HEIGHT (MM): 101.2
REPLACES:
OTHER PART NUMBER: PT513265
SKF: BR930641
TIMKEN: HA590064
AUTOPART INTERNATIONAL: 1411-09906
BCA: WE60949
BECK/ARNLEY: 051-6291
CENTRIC PARTS: 40044005
FAG US: 101783
GSP: 694265
MEVOTECH: H513265
MOOG HUB ASSEMBLIES: 513265
NAPA: PBR930641
APPLICATIONS:
TOYOTA PRIUS (2004-2009)
