THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

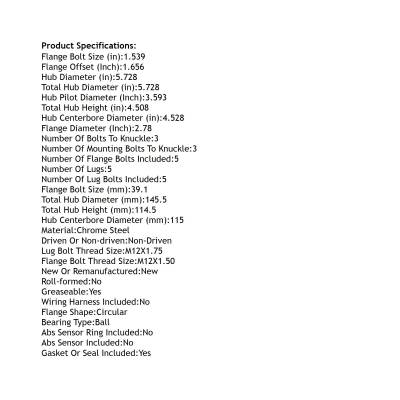

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.539
FLANGE BOLT SIZE (MM): 39.1
FLANGE BOLT THREAD SIZE: M12X1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.656
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 4.508
TOTAL HUB HEIGHT (MM): 114.5
WIRING HARNESS INCLUDED: NO
REPLACES:
ACDELCO: RW20-40
AUTOPART INTERNATIONAL: 1411-44694
BCA: WE61381
CENTRIC PARTS: 40562001E
FAG US: 102256
GENERAL MOTORS: 12413089
GSP: 103236
MEVOTECH: H512236
MOOG HUB ASSEMBLIES: 512236
NAPA: PBR930312
APPLICATIONS:
BUICK RENDEZVOUS (2003-2007)
