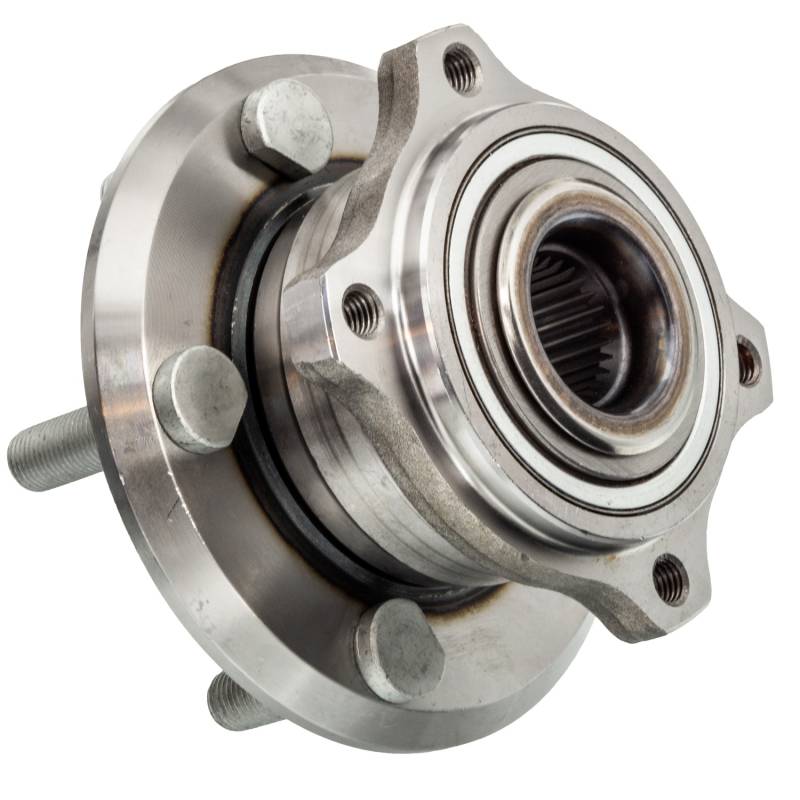

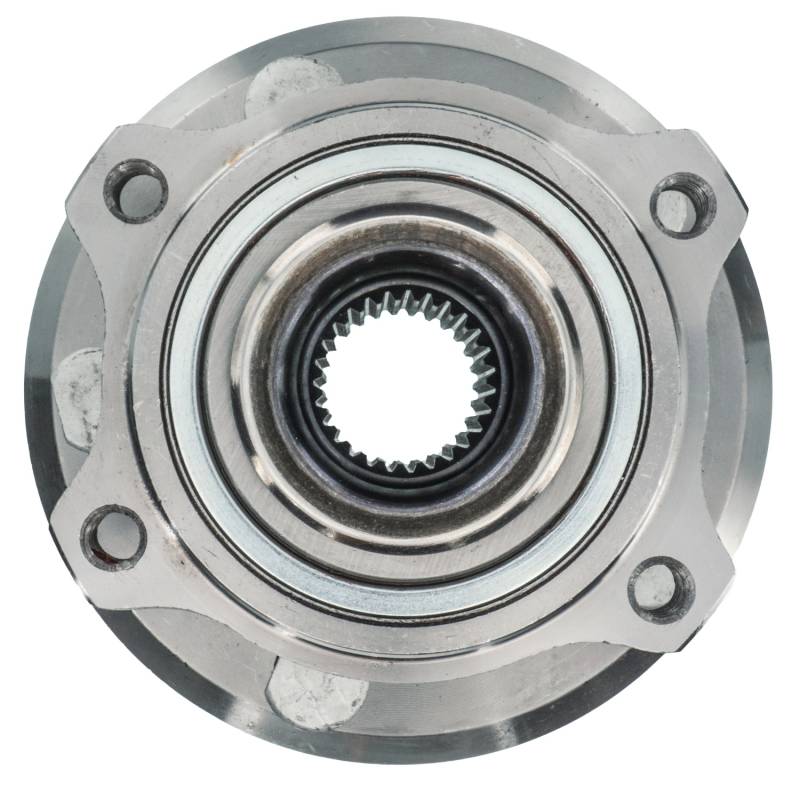

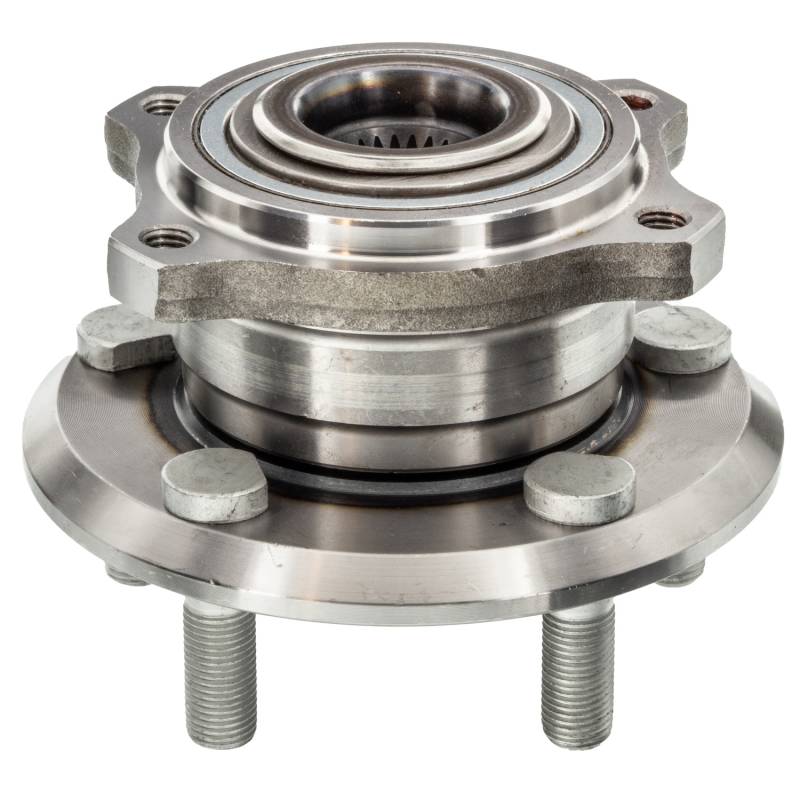

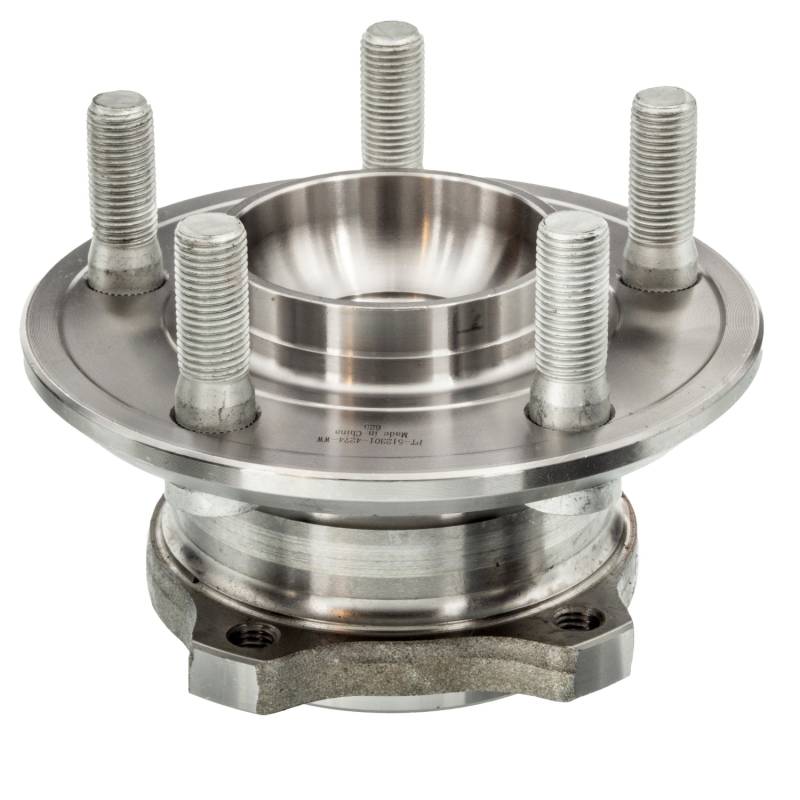

New Hub Assembly Compatible With Chrysler Dodge 300 Magnum Charger 2005 2006 2007 2008 2009 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.535
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.854
FLANGE OFFSET (INCH): 2.374
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.527
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.031
HUB PILOT DIAMETER (INCH): 2.811
LUG BOLT THREAD SIZE: M10-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.031
TOTAL HUB DIAMETER (MM): 127
TOTAL HUB HEIGHT (IN): 4.874
TOTAL HUB HEIGHT (MM): 123
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-49194
BCA: WE61790
CENTRIC PARTS: 40063000
FAG US: 102122
GSP: 124225
MEVOTECH: H512301
MOOG HUB ASSEMBLIES: 512301
NAPA: PBR930446

APPLICATIONS:
CHRYSLER 300 (2005-2009)
DODGE MAGNUM (2005-2008)
DODGE CHARGER (2006-2009)
