12V Starter Motor Compatible With 1999-2000 Suzuki Df40 Df50 49.7Ci 1998-2000 Df60 Df70 79.2Ci

OEM PART NUMBERS:
• Hitachi: S114-671A / S114671A, S114-671
• Suzuki: 31100-87J00 / 3110087J00
• Suzuki: 31100-87500 / 3110087500
• Suzuki: 31100-99E-00

SPECIFICATIONS:
• Voltage: 12V
• Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 8
• Gear OD: 1.102 in / 28mm
• Mounting: 3x M8-1.25 Threaded Ears
• CE Housing: (2) M8-1.25 Threaded Mounting Holes
• Weight: 5 lbs
• Condition: New

APPLICATION:
• Suzuki DF40Q/DF40T 4-Stroke 49.7CI 40 HP (1999-2000)
• Suzuki DF50Q/DF50T 4-Stroke 49.7CI 50 HP (1999-2000)
• Suzuki DF60T 4-Stroke 79.2CI 60 HP (1998-2000)
• Suzuki DF70T 4-Stroke 79.2CI 70 HP (1998-2000)

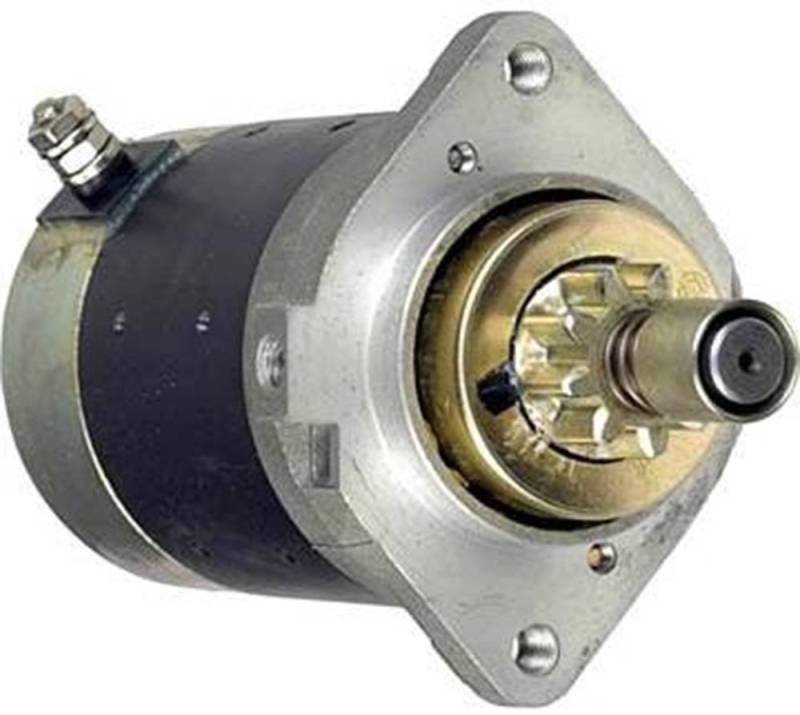

12V Starter Motor — Suzuki DF40 DF50 DF60 DF70 Outboard
New 12-volt starter for Suzuki 4-stroke marine outboard engines. The PMDD permanent magnet direct drive design matches the original Hitachi starter specification for the DF40 and DF50 49.7CI 3-cylinder engines and the DF60 and DF70 79.2CI 4-cylinder engines. Counterclockwise rotation with 8-tooth pinion ensures correct flywheel engagement. Features three M8-1.25 threaded mounting ears with two additional M8-1.25 threaded holes in the CE housing. The 5-pound unit provides a direct drop-in replacement with no modifications to the electrical system or mounting brackets. Replaces Suzuki 31100-99E-00 and Hitachi S114-671A.
