12V Starter Compatible With 1998-2000 Suzuki Df60t Df70t 4-Stroke 79.2Ci 60 70 Hp 1999-2000 Df40

OEM PART NUMBERS:
• Hitachi: S114-671A / S114671A, S114-671
• Suzuki: 31100-87J00 / 3110087J00
• Suzuki: 31100-87500 / 3110087500
• Suzuki: 31100-99E-00

SPECIFICATIONS:
• Voltage: 12V
• Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 8
• Gear OD: 1.102 in / 28mm
• Mounting: 3x M8-1.25 Threaded Ears
• CE Housing: (2) M8-1.25 Threaded Mounting Holes
• Weight: 5 lbs
• Condition: New

APPLICATION:
• Suzuki DF40Q/DF40T 4-Stroke 49.7CI 40 HP (1999-2000)
• Suzuki DF50Q/DF50T 4-Stroke 49.7CI 50 HP (1999-2000)
• Suzuki DF60T 4-Stroke 79.2CI 60 HP (1998-2000)
• Suzuki DF70T 4-Stroke 79.2CI 70 HP (1998-2000)

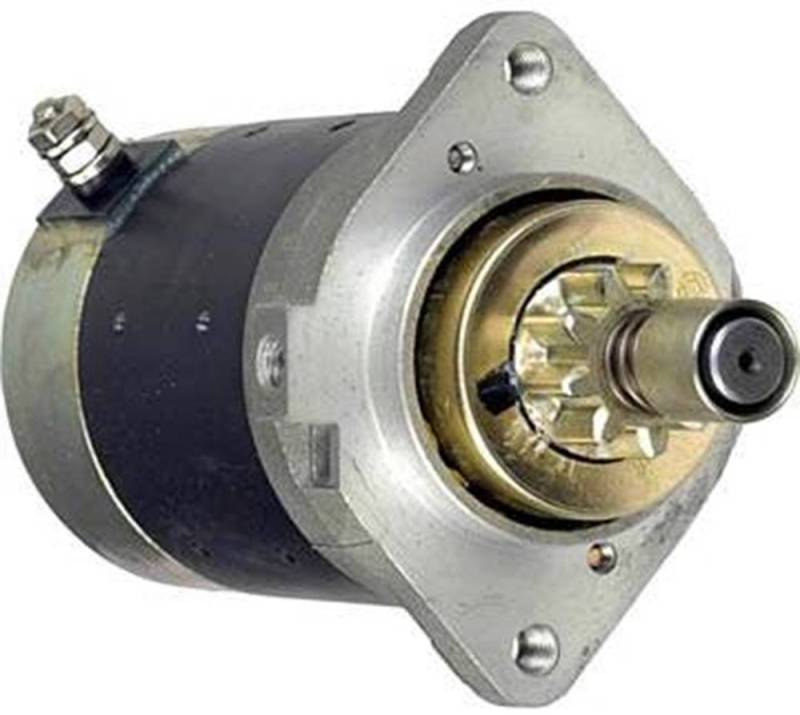

12V Starter — Suzuki DF60T DF70T DF40 DF50 4-Stroke Outboard
Direct replacement starter for Suzuki 4-stroke outboard motors in the 40-70 HP range. This PMDD starter is engineered for the DF60T and DF70T 79.2 cubic inch 4-cylinder engines as well as the smaller DF40 and DF50 49.7 cubic inch 3-cylinder engines. The permanent magnet construction eliminates field windings for a lighter and more compact unit compared to conventional starters. Counterclockwise rotation, 8-tooth pinion, 1.102-inch gear OD, and M8-1.25 threaded mounting ears. Common failure symptoms on Suzuki 4-stroke outboards include slow cranking, clicking relays, and intermittent engagement. Replaces Hitachi S114-671A.
