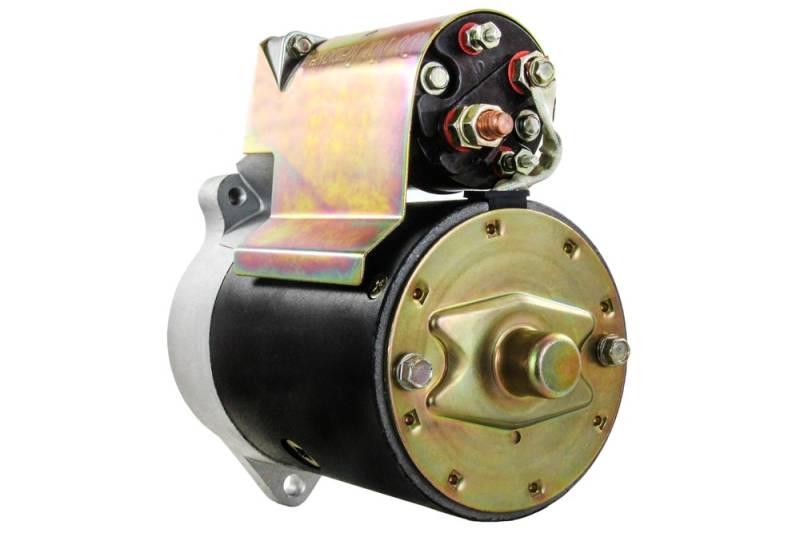

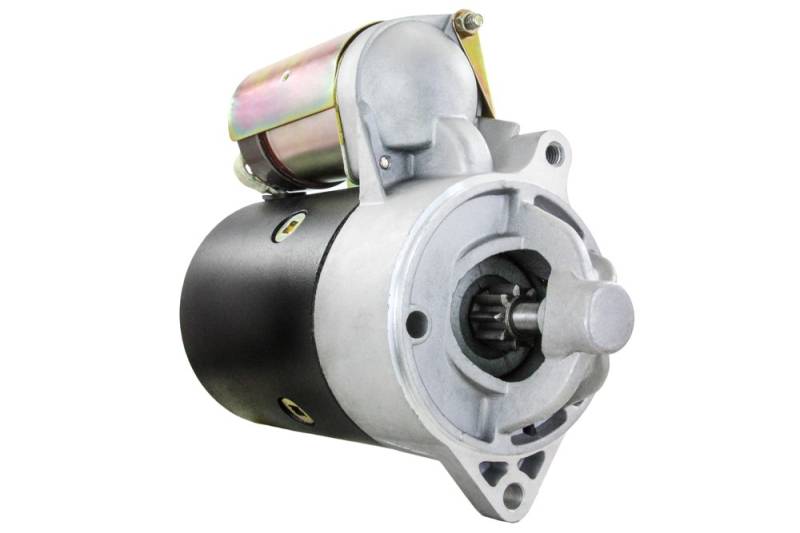

New 12V Marine Starter 9-Tooth Cw Dd Compatible With 1972-1977 Waukesha Marine 460 8-Cyl 7.5L Ford

3142*1
ARCO MARINE PART NUMBERS:
• 70108

PLEASURECRAFT MARINE (PCM) PART NUMBERS:
• RA122004

WILSON PART NUMBERS:
• 91-02-5815, 91025815
• 91-02-5815N

FORD / LINCOLN / MERCURY PART NUMBERS:
• C8VF-11001-A, C8VF11001A
• C8VF-11002-A, C8VF11002A
• C8VY-11002-C, C8VY11002C
• C9AF-11001-A, C9AF11001A
• D0VF-11000-A, D0VF11000A
• D0VF-11001-A, D0VF11001A
• D0VY-11002-A, D0VY11002A
• D2AF-11001-EA, D2AF11001EA
• D2VF-11000-AA, D2VF11000AA
• D2VF-11001-AA, D2VF11001AA
• D3OZ-11002-A, D3OZ11002A
• D3TF-11001-CA, D3TF11001CA
• D3TF-11001-DA, D3TF11001DA
• D3TZ-11002-C, D3TZ11002C
• D4AF-11001-AA, D4AF11001AA
• D4AF-11001-BA, D4AF11001BA
• D4AZ-11002-A, D4AZ11002A
• D4OF-11001-AA, D4OF11001AA
• D4OF-11001-BA, D4OF11001BA
• D4TF-11001-CA, D4TF11001CA
• D4VF-11000-AA, D4VF11000AA
• D4VF-11000-BA, D4VF11000BA
• D4VF-11001-AA, D4VF11001AA
• D4VY-11002-A, D4VY11002A
• D4VY-11002-B, D4VY11002B
• D4VY-11002-C, D4VY11002C
• D5AF-11001-AB, D5AF11001AB
• D5AF-11001-BA, D5AF11001BA
• D5AF-11001-BB, D5AF11001BB
• D5AZ-11002-A, D5AZ11002A
• D5AZ-11002-B, D5AZ11002B
• D5TF-11001-BA, D5TF11001BA
• D5TZ-11002-A, D5TZ11002A
• D5VF-11000-AB, D5VF11000AB
• D6AF-11001-AA, D6AF11001AA
• D6AZ-11002-A, D6AZ11002A
• D6TF-11001-CA, D6TF11001CA
• D6TZ-11002-C, D6TZ11002C
• D7VJ-11000-AA, D7VJ11000AA
• D8VY-11002-C, D8VY11002C
• Ford engineering D0VF-A, D2VF-AA, D4VF-AA, D4VF-BA, D5VF-AB, D7VJ-AA

MOTORCRAFT PART NUMBERS:
• SA-652, SA652
• SA-658, SA658
• SA-663, SA663
• SA-676, SA676
• SA-682, SA682
• SA-683, SA683
• SA-687, SA687
• SA-692, SA692
• SA-693, SA693
• SA-703, SA703
• SA-703A, SA703A
• SA-704, SA704
• SA-711, SA711
• SA-717A, SA717A

DELCO REMY / ACDELCO PART NUMBERS:
• Remy 25228
• ACDelco 336-1789, 3361789
• ACDelco 19136098

OTHER PART NUMBERS:
• Bosch SR506X
• Beck/Arnley 187-6063, 1876063

SPECIFICATIONS:
• Type: Ford 4-1/2 inch (Mod I) positive engagement direct drive marine starter
• Voltage: 12 Volt
• Power: 1.4 kW
• Rotation: Clockwise (CW), standard rotation engines
• Pinion: 9 teeth, 25.1 mm (0.988 in) OD
• Mounting: two ears, one 3/8-16 threaded hole and one 10.0 mm unthreaded hole
• Nose: extends about 2-3/8 in into the flywheel housing
• Weight: about 17 lb (7.73 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $366.00
Sale: $209.14
Save: 43%
Save: $156.86
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 1.4 KW 9 TOOTH CW FORD 4-1/2 INCH DIRECT DRIVE MARINE STARTER:
• 12V, 1.4 kW, clockwise (standard rotation), Ford 4-1/2 inch (Mod I) positive engagement direct drive
• 9 tooth pinion, 25.1 mm (0.988 in) gear OD, nose extends about 2-3/8 in into the flywheel housing
• Two ear mount: one 3/8-16 threaded hole, one 10.0 mm unthreaded hole, about 17 lb (7.73 kg)
• Counterclockwise (opposite rotation) engines and 4 inch frame Ford starters need a different unit

WAUKESHA MARINE ENGINES ON THE FORD V8:
• Waukesha 460 Ford 460 7.5L V8 marine inboard 1972-1977
• Waukesha 460 Ford 460 7.5L V8 marine sterndrive 1972-1977
• Waukesha 464 Ford V8 marine inboard and sterndrive 1972-1977

CRUSADER MARINE ENGINES ON THE FORD V8:
• Crusader inboard with the Ford 460 7.5L V8, CW rotation
• Crusader sterndrive with the Ford 460 7.5L V8, CW rotation
• Crusader inboard with the Ford 429 7.0L V8, CW rotation

PLEASURECRAFT MARINE (PCM) AND FORD MARINE:
• Pleasurecraft PCM Ford 460 7.5L V8 inboard, CW rotation (PCM RA122004)
• Ford marine 460 7.5L V8 inboard with the 2-3/8 in nose Ford starter, CW rotation

SAME STARTER, LINCOLN 429 / 460 V8:
• Lincoln Continental 429 7.0L V8 1968
• Lincoln Continental 460 7.5L V8 1969-1977

SAME STARTER, FORD 429 / 460 / 400 V8 CARS:
• Ford Thunderbird 429 7.0L V8 1968-1973
• Ford Thunderbird 460 7.5L V8 1972-1976
• Ford Galaxie 429 7.0L V8 1969-1973
• Ford Galaxie 460 7.5L V8 1973-1974
• Ford LTD 429 7.0L V8 1969-1973
• Ford LTD 460 7.5L V8 1972-1977
• Ford Custom 429 7.0L V8 1969-1973
• Ford Custom 460 7.5L V8 1973-1976
• Ford Country Squire 429 7.0L V8 1969-1973
• Ford Country Squire 460 7.5L V8 1972-1976
• Ford Country Sedan 429 7.0L V8 1969-1973
• Ford Country Sedan 460 7.5L V8 1972-1974
• Ford Ranch Wagon 429 7.0L V8 1969-1973
• Ford Ranch Wagon 460 7.5L V8 1973-1976
• Ford Torino 429 7.0L V8 1970-1973
• Ford Torino 460 7.5L V8 1973-1976
• Ford Torino 400 6.6L V8 1972-1976
• Ford Mustang 429 7.0L V8 1969-1971

SAME STARTER, MERCURY 429 / 460 V8:
• Mercury Cougar 429 7.0L V8 1969-1971
• Mercury Cougar 460 7.5L V8 1973-1976

SAME STARTER, FORD 460 TRUCKS AND VANS:
• Ford F-100 pickup 460 7.5L V8 1973-1977
• Ford F-150 pickup 460 7.5L V8 1975-1977
• Ford F-250 pickup 460 7.5L V8 1973-1977
• Ford F-350 pickup 460 7.5L V8 1973-1977
• Ford E-250 Econoline van 460 7.5L V8 1975-1977
• Ford E-350 Econoline van 460 7.5L V8 1975-1977
