New 12 Volt Solenoid Compatible With Various Applications 120-105851 120105851 120-105851-6

WHITE RODGERS: 120-105851 120105851 120-105851-6 1201058516 120-913S1 120913S1

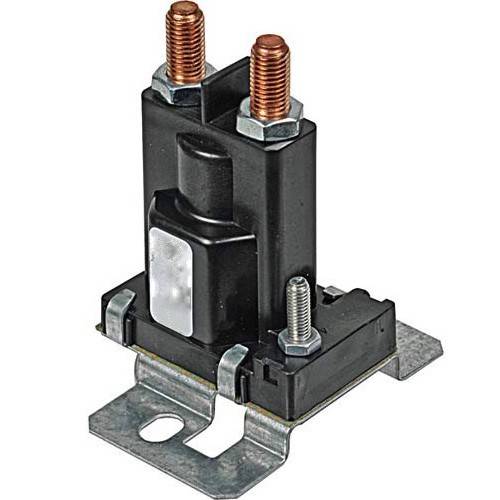

ITEM DESCRIPTION: SOLENOID
OEM(S): WHITE RODGERS
VOLTAGE: 12
CONTINUOUS AMPS: 100
SURGE AMPS: 400
MOUNTING: FLAT 180 (F180)
DUTY CYCLE: CONTINUOUS
CASE MATERIAL: PLASTIC
CONTACT MATERIAL: SILVER ALLOY
NUMBER OF TERMINALS: 3
WATER RESISTANT: YES
OPERATING TEMPERATURE: -20�F TO +120�F
RECOMMENDED MOUNTING: COIL TERMINALS UP OR HORIZONTAL
SPECIFICATIONS: SPST
SPECIFICATIONS: NORMALLY OPEN
SPECIFICATIONS: GROUNDED COIL
SPECIFICATIONS: INCLUDES TERMINAL HARDWARE
SPECIFICATIONS: (2) 5/16-24 TERMINALS & (1) 10-32 TERMINAL
SPECIFICATIONS: NON STICK SILVER ALLOY CONTACTS
SPECIFICATIONS: NORMALLY OPEN
SPECIFICATIONS: GROUNDED COIL
SPECIFICATIONS: INCLUDES TERMINAL HARDWARE
SPECIFICATIONS: (2) 5/16-24 TERMINALS & (1) 10-32 TERMINAL
SPECIFICATIONS: NON STICK SILVER ALLOY CONTACTS
CAUTION: ALWAYS USE A BACK-UP WRENCH TO HOLD THE BOTTOM NUT WHEN TIGHTENING
