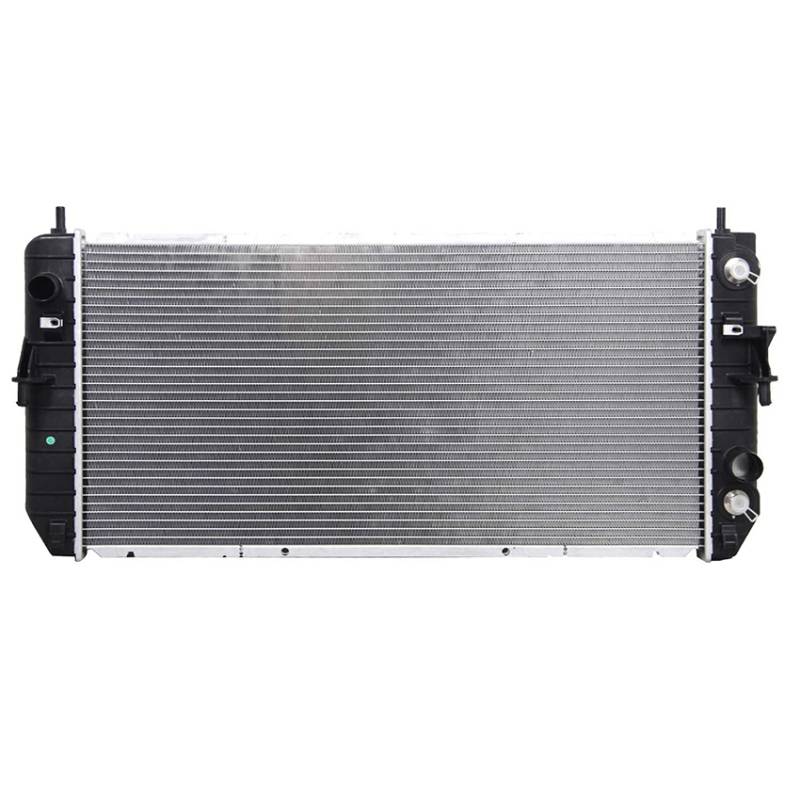

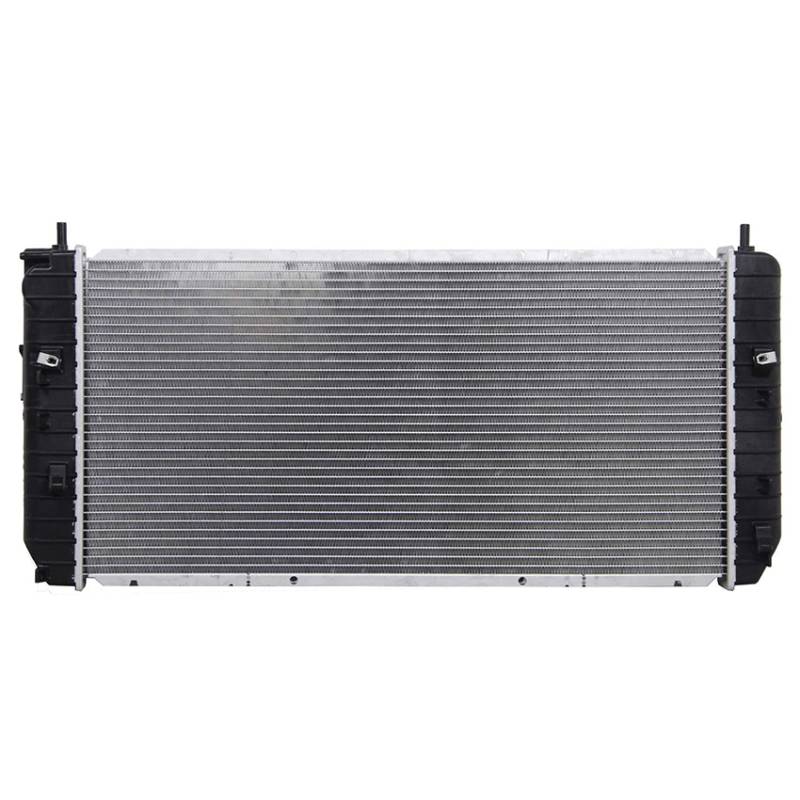

New Radiator Fits Buick Lucerne Cx Cxl 3.9L 3880Cc 2009-2010 15897535 Gm3010611

GENERAL MOTORS: 15897535
PARTSLINK: GM3010611

ITEM DESCRIPTION: RADIATOR
UNIT TYPE: GENERAL MOTORS
BOTTOM HEADER: 2 13/32" X 16 19/32"
CORE HEIGHT (IN): 15 1/16"
CORE LENGTH (IN): 30 15/32"
CORE MATERIAL: ALUMINUM
CORE THICKNESS (IN): 1 1/32"
EOC (YES/NO): NO
FIN COUNT (EVERY 4"): 56
FIN WAVE HEIGHT (IN): 11/32"
FIND WAVE PITCH: 3.6
FLOW CONFIGURATION: CROSSFLOW
INLET CONNECTION TYPE: HOSE CLAMP
INLET DIAMETER (IN): 1 5/16"
NO. OF ROWS: 1
OUTLET CONNECTION TYPE: HOSE CLAMP
OUTLET DIAMETER (IN): 1 9/16"
TOC (YES/NO): YES
TOC DISTANCE (IN): 11 1/2"
TOC INLET DIAMETER (IN): 11/32"
TOC INLET TYPE: QUICK CONNECT
TOC OUTLET DIAMETER (IN): 11/32"
TOC OUTLET TYPE: QUICK CONNECT
TOC TYPE: PLATE OIL COOLER
TOP HEADER: 2 13/32" X 16 19/32"
TOTAL FIN ROW COUNT: 35
TOTAL TUBE COUNT: 34
TUBE COUNT (EVERY 4"): 10
TUBE WIDTH X HEIGHT: 26X2

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
