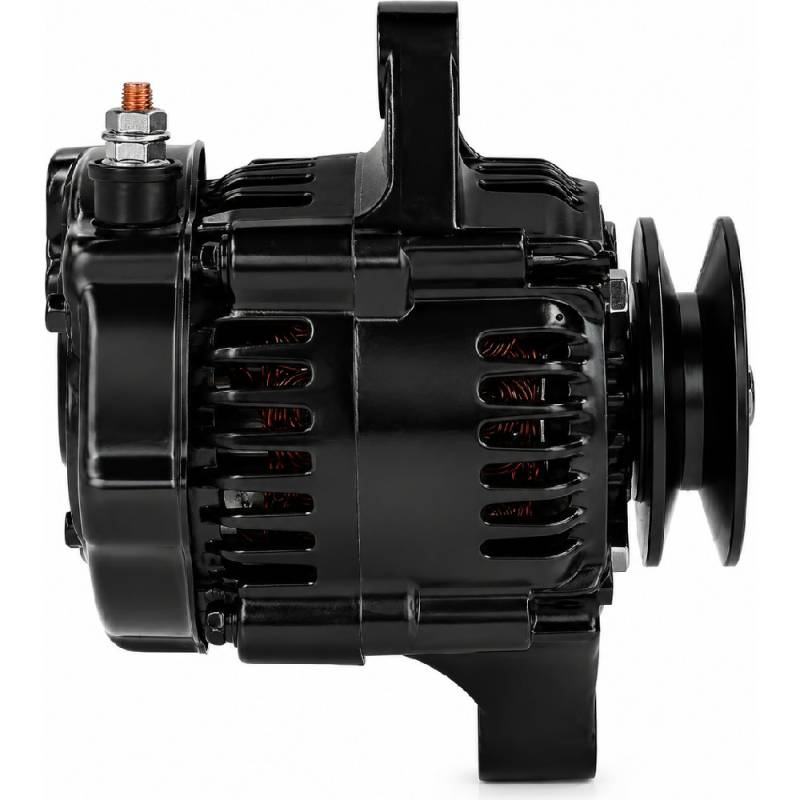

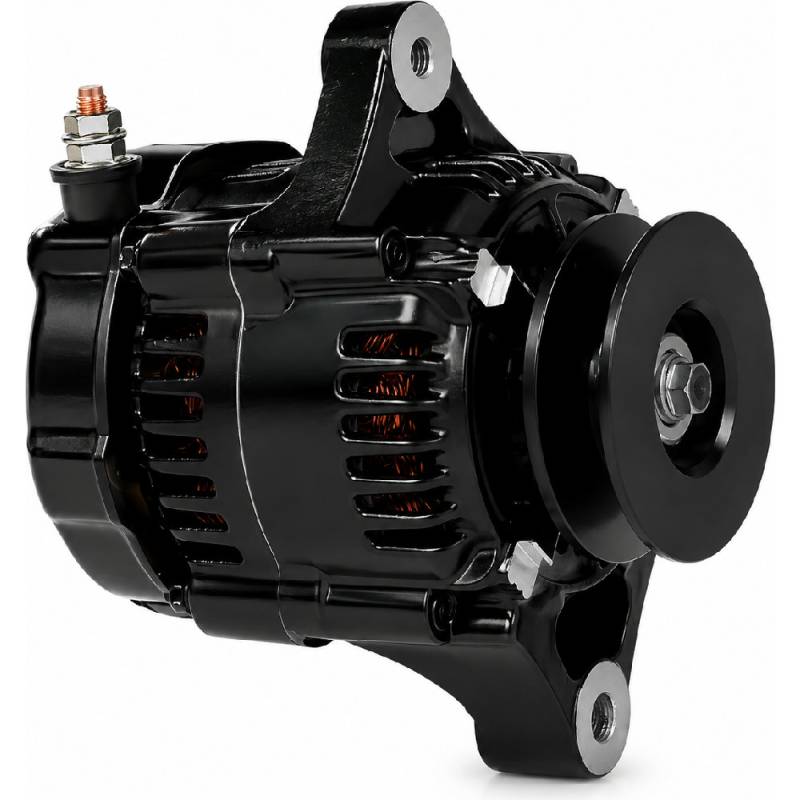

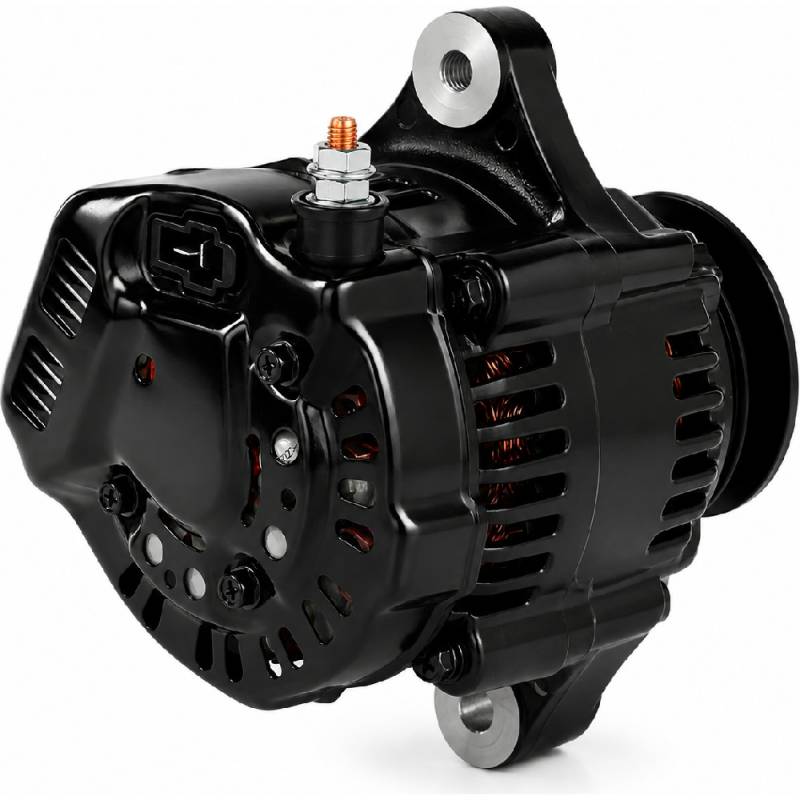

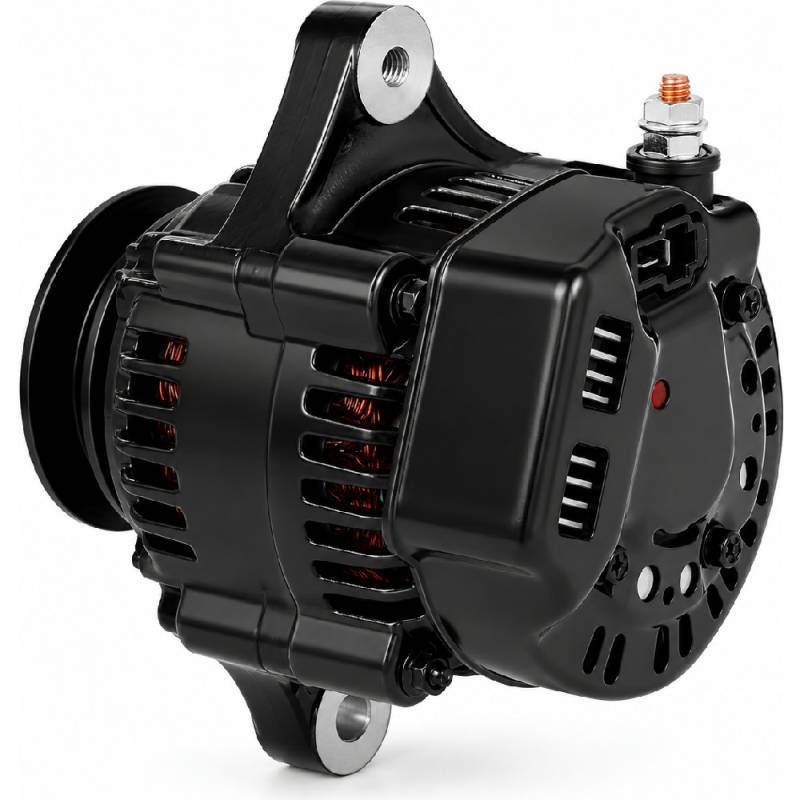

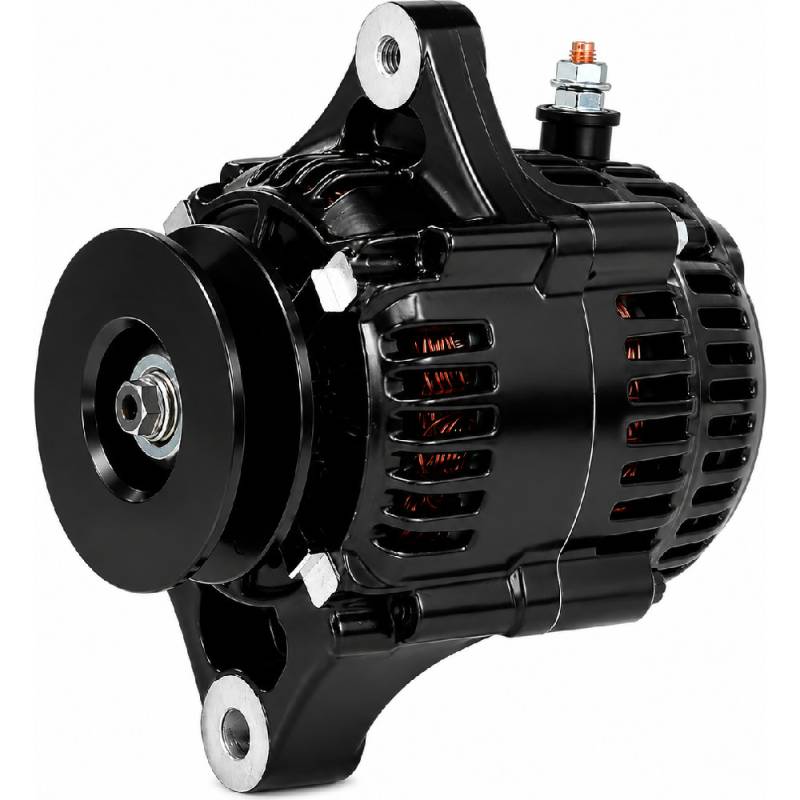

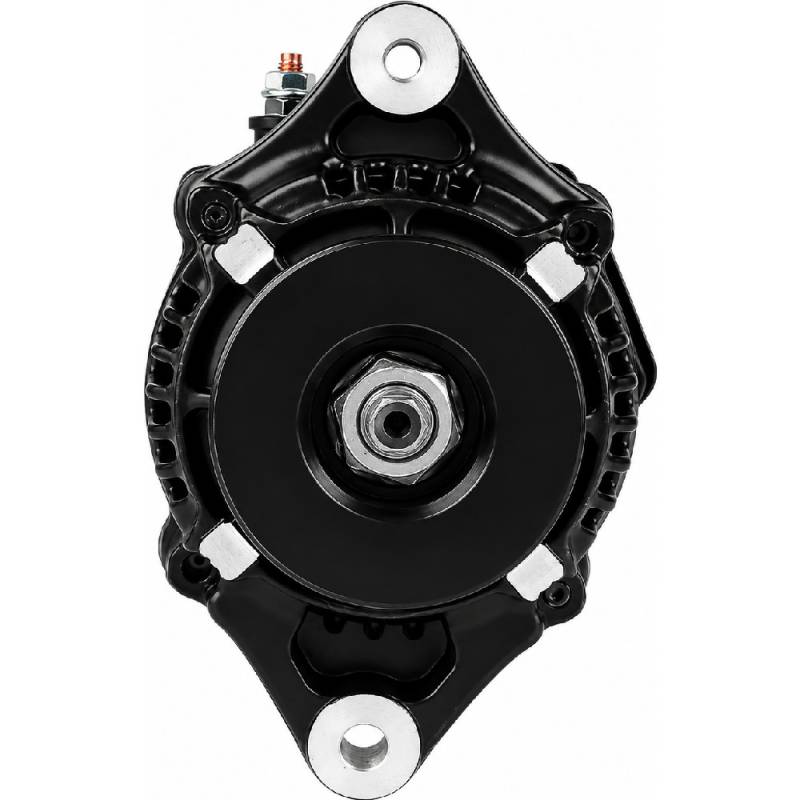

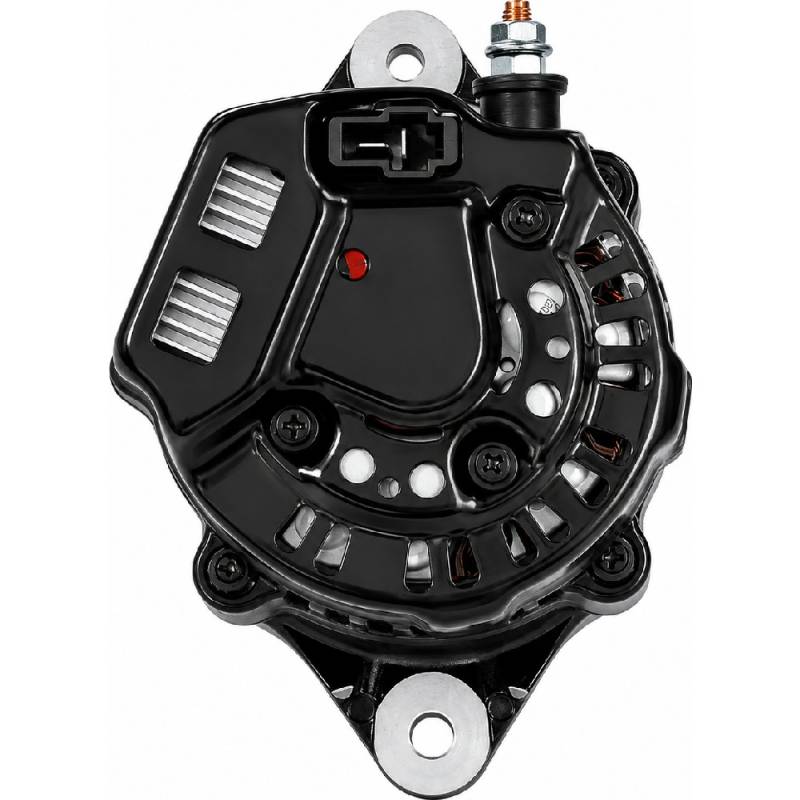

12V 70A Mini Race Alternator Fits Street Rod Hot Rod Custom

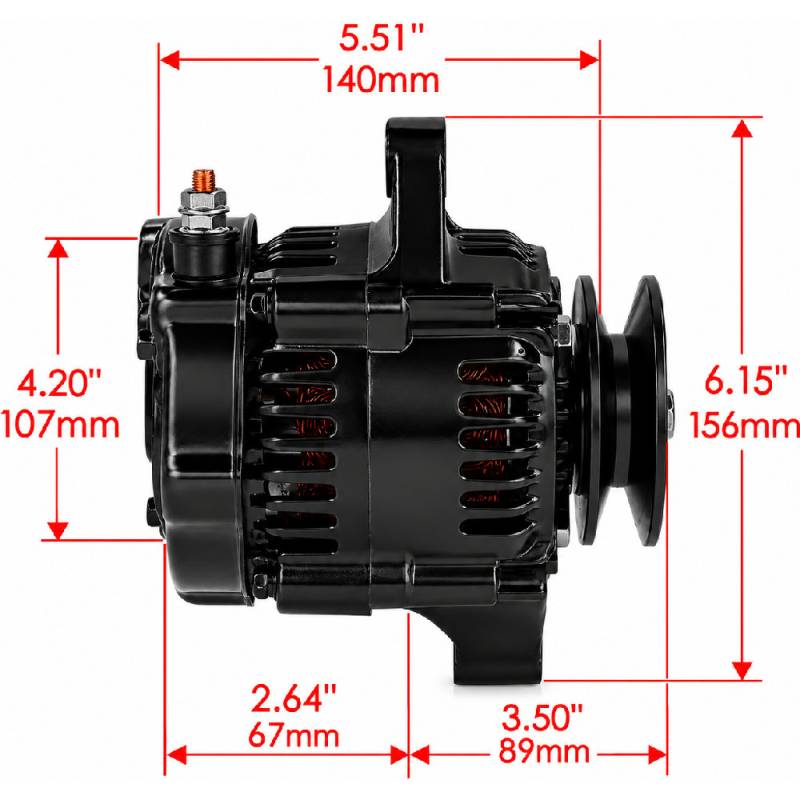

DIMENSIONS AND FITMENT:
• Overall Length: 140 mm / 5.51 in
• Overall Height: 156 mm / 6.15 in
• Case Depth To Mounting Foot: 107 mm / 4.20 in
• Rear Case To Centreline: 67 mm / 2.64 in
• Centreline To Pulley Face: 89 mm / 3.50 in
• Case: Denso Style 102 mm Race

SPECIFICATIONS:
• Type: Denso Style 102 mm Mini Race Alternator
• Voltage: 12V
• Output: 70A
• Hookup: True One-Wire, Self-Energizing
• Regulator: Internal
• Fan: Internal
• Finish: Black Heat-Resistant Coating
• Pulley: V-Belt, Included
• Bearings: Low Drag, High Speed
• Maximum Shaft Speed: 20,000 RPM
• Overall Length: 140 mm / 5.51 in
• Overall Height: 156 mm / 6.15 in
• Condition: New

APPLICATIONS:
• Chevrolet small block 350, 383, 400 and big block 454, 502
• Circle track, dirt late model, modified and street stock
• Bracket and index drag racing, street rod and pro touring
• Sand rail, dune buggy, rock crawler and off-road
• Universal 12V one-wire, minor bracket modification may be required
