OEM PART NUMBERS:
• John Deere: AW23611 / W312410
• Spicer (Dana): 5-34000X / HS204
SPECIFICATIONS:
• Series: Walterscheid 2400
• Bearing Cap Diameter: 1.26 in (32mm) Both Axes
• Overall Length: 2.988 in (76mm) Both Axes
• Lock Ring: External Snap Ring
• Bearing Cap Type: Round Plain (4 Plain Round Bearings)
• Material: Steel (20CR, 58-64 HRC)
• Greaseable: Yes (Center Nipple)
• Condition: New
APPLICATION:
• John Deere HX/CX/MX/FC/M/R/RC Series Rotary Cutters
• John Deere 509-7260 Series Rotary Cutters
• John Deere 360/370/390 Flail Mowers
• John Deere Round Balers and Combine Heads
• Fits various applications by part number - verify AW23611 before ordering

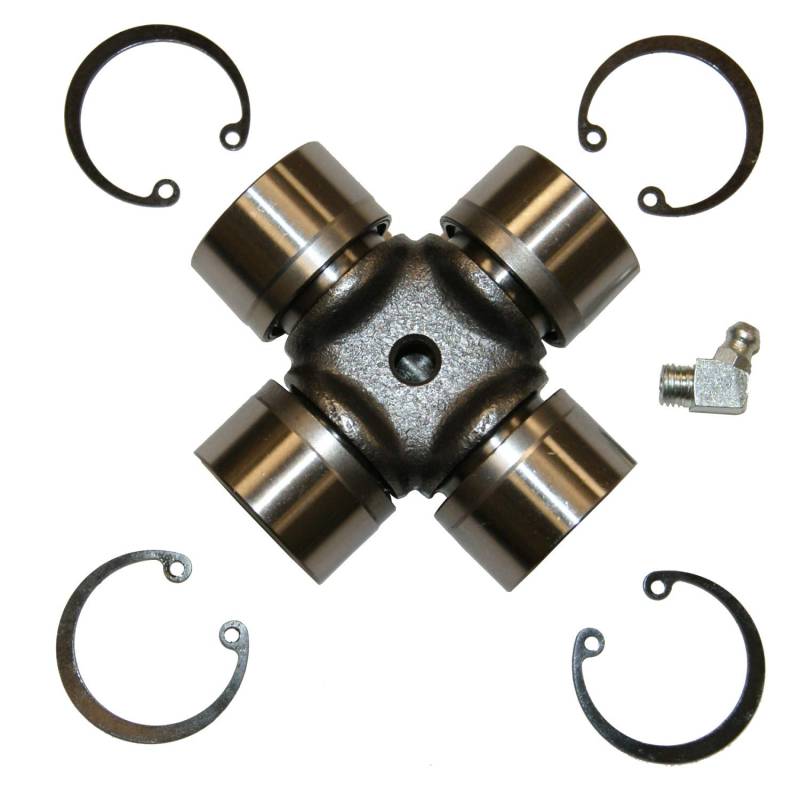

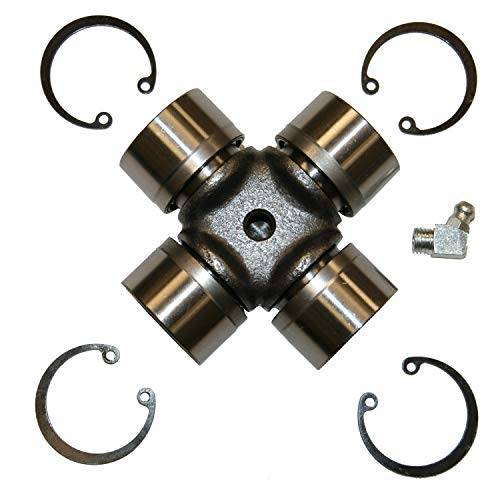

Universal Joint Cross and Bearing - John Deere Rotary Cutters
New steel u-joint cross and bearing for John Deere PTO driveline applications. 32mm x 76mm Walterscheid 2400 series with external snap ring and greaseable center nipple. Replaces John Deere AW23611 and Spicer 5-34000X / HS204. Precision manufactured for demanding agricultural use.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
