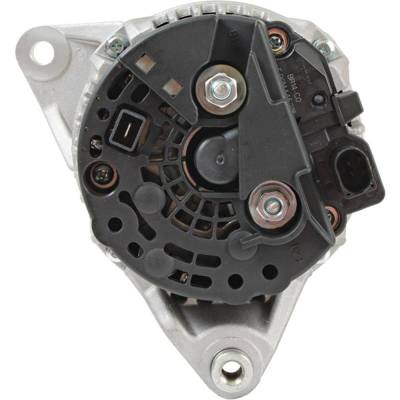

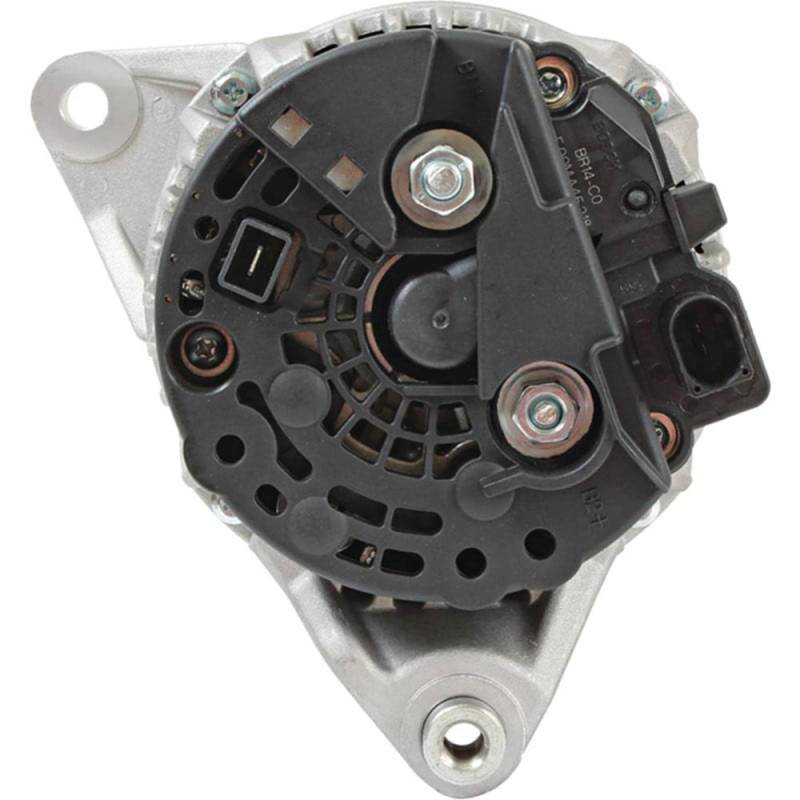

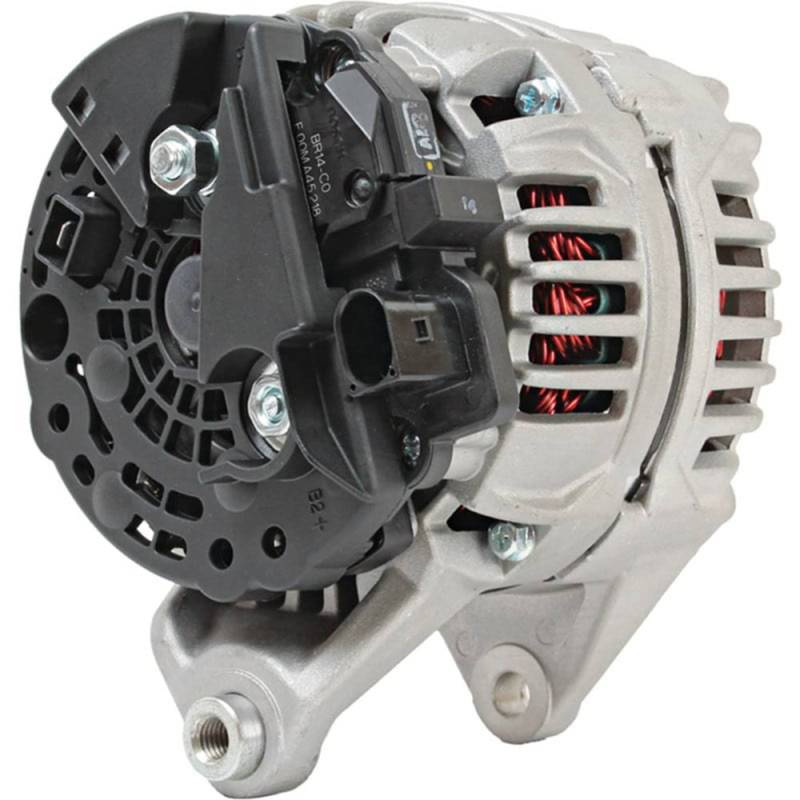

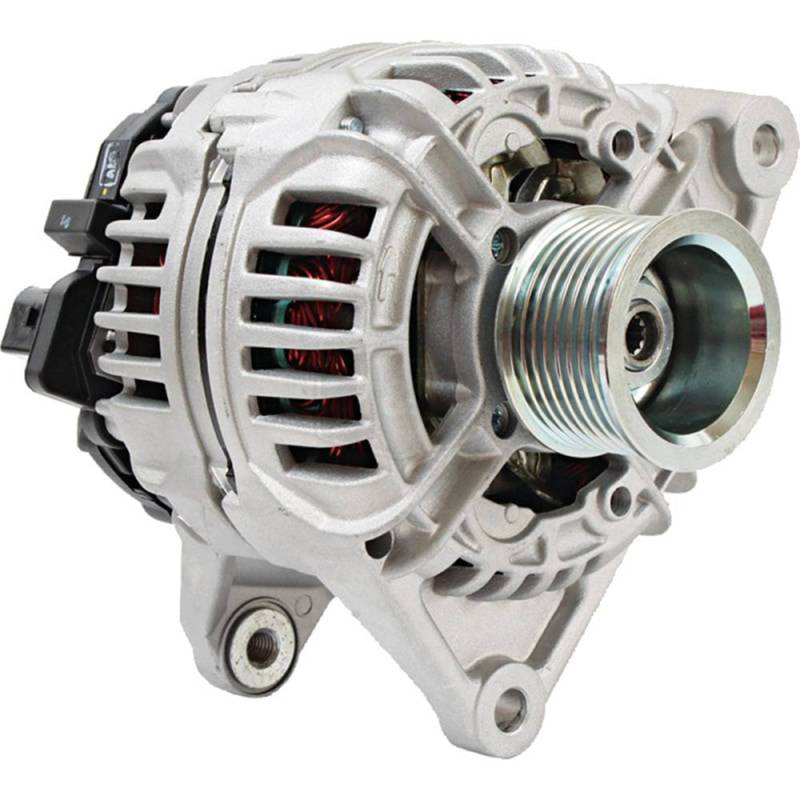

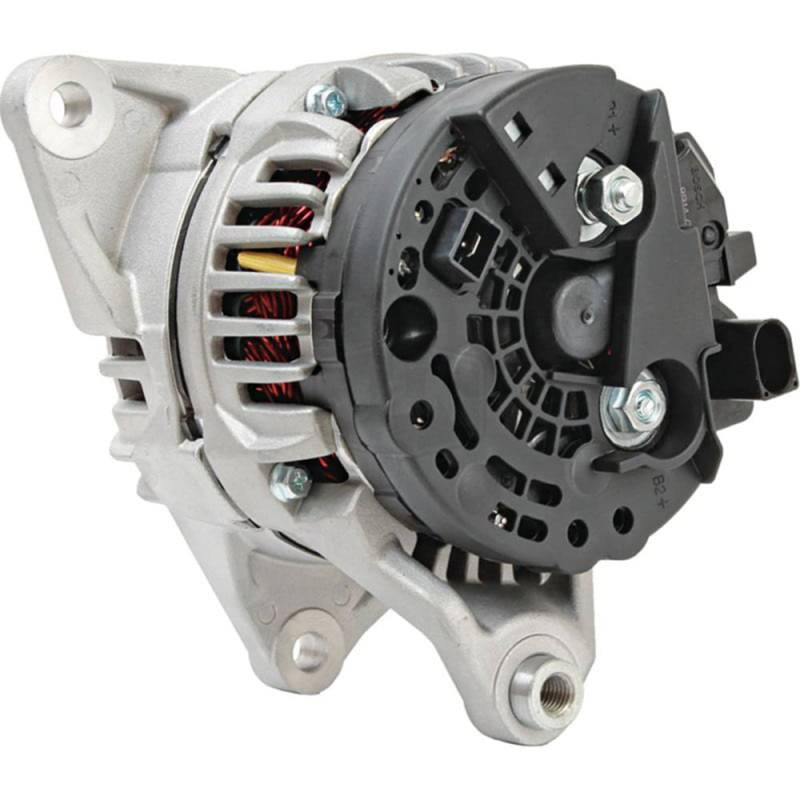

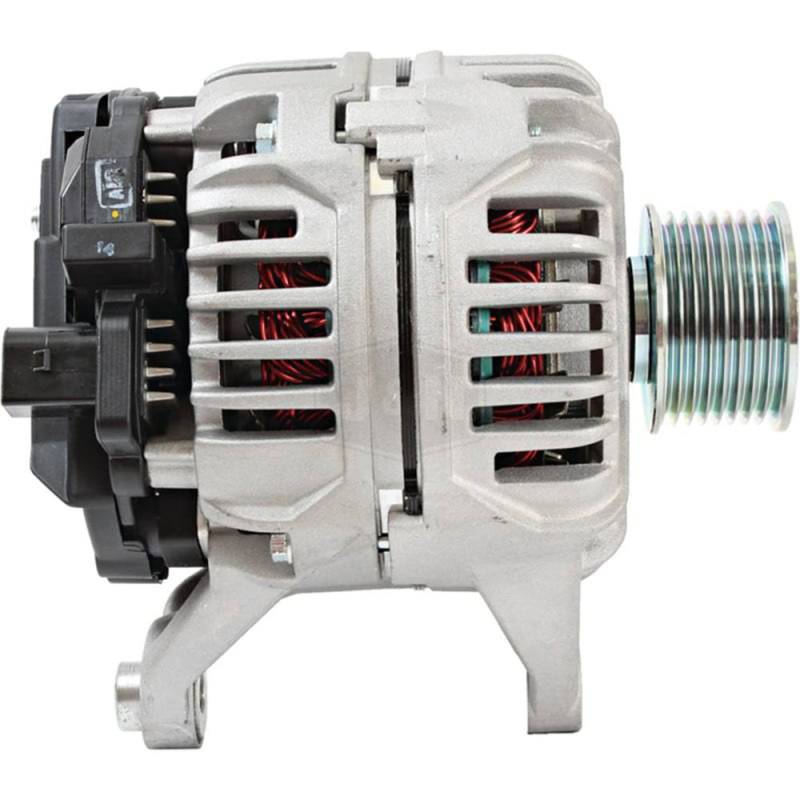

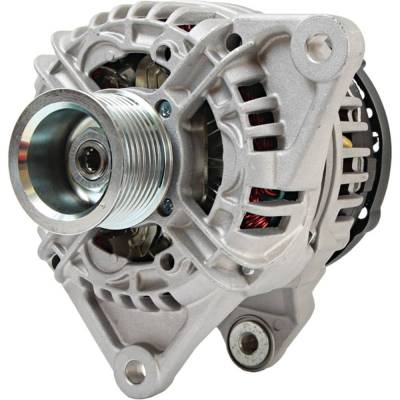

New 12V 90A Alternator Compatible With New Holland Telehandler Lm5060 Lm5070 2003-2015 By Lra03280

PRODUCT TYPE: ALTERNATOR

BOSCH: 0124325052 0-124-325-052 0986081360 0124325147 0-124-325-147
CASE : 2855975
INTERNATIONAL: C8520046A
NEW HOLLAND: 504010576
IVECO: 504225814
LESTER: LRA03280
DIXIE: A-6616 160-32103
KOMATSU: 38522314F
VM : 8520046A

VOLTS: 12
AMPERAGE: 90
ROTATION: CW
REGULATOR CLOCK: 0.14583
MOUNT HOLE ID 1: 11MM
MOUNT HOLE 1 TYPE: UNTHREADED
MOUNT HOLE 2 TYPE: UNTHREADED
MOUNT HOLE ID 3: M10X1.50
MOUNT HOLE 3 TYPE: THREADED
MOUNTING EAR THICKNESS: 0.539"
MOUNTING EAR 2 THICKNESS: 0.567"
MOUNTING EAR 3 THICKNESS: 0.748"
FAN LOCATION: INTERNAL
REGULATOR LOCATION: INTERNAL
TERMINAL ID 2: B+
TERMINAL 2 SIZE: M8X1.25
TERMINAL ID 3: L
TERMINAL 3 SIZE: SPADE
TERMINAL ID 4: FR
TERMINAL 4 SIZE: SPADE
TERMINAL ID 5: P
TERMINAL 5 SIZE: SPADE
POLARITY: NEGATIVE
PULLEY TYPE: SOLID
PULLEY OUTER DIAMETER: 2.362"
NUMBER OF GROOVES: 8

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
