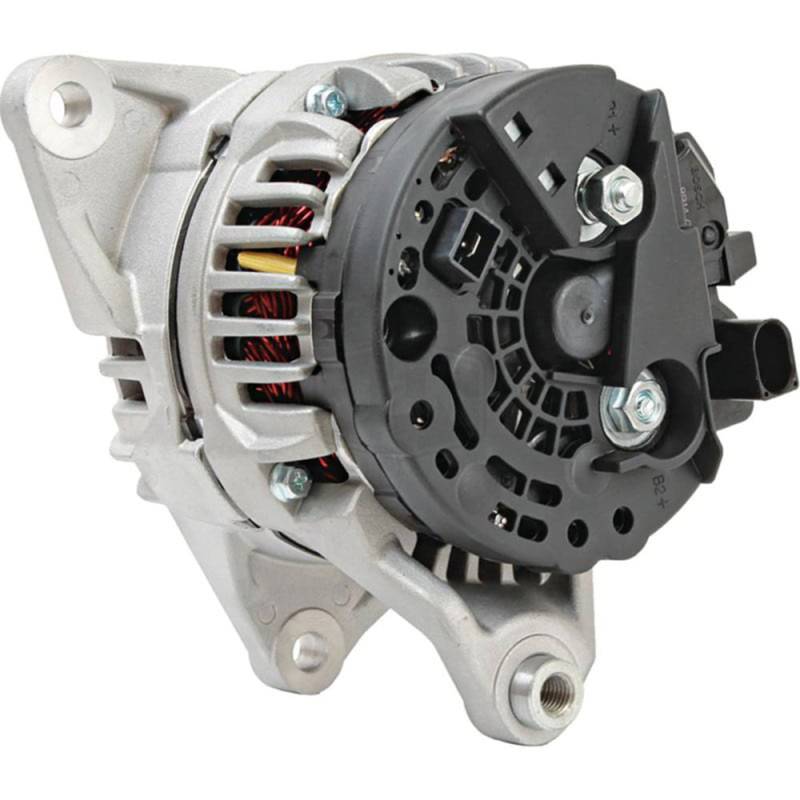

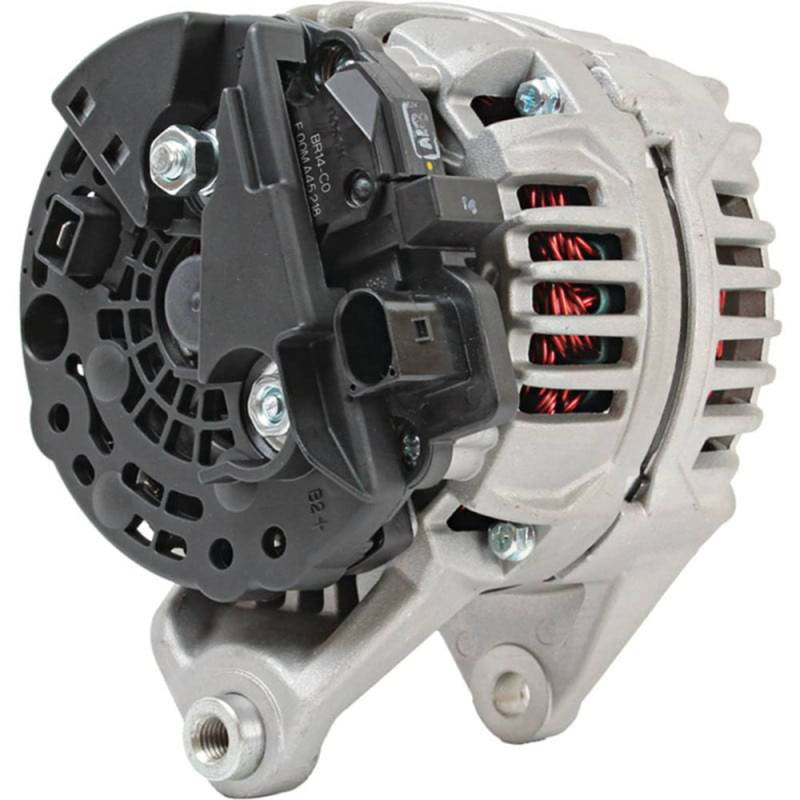

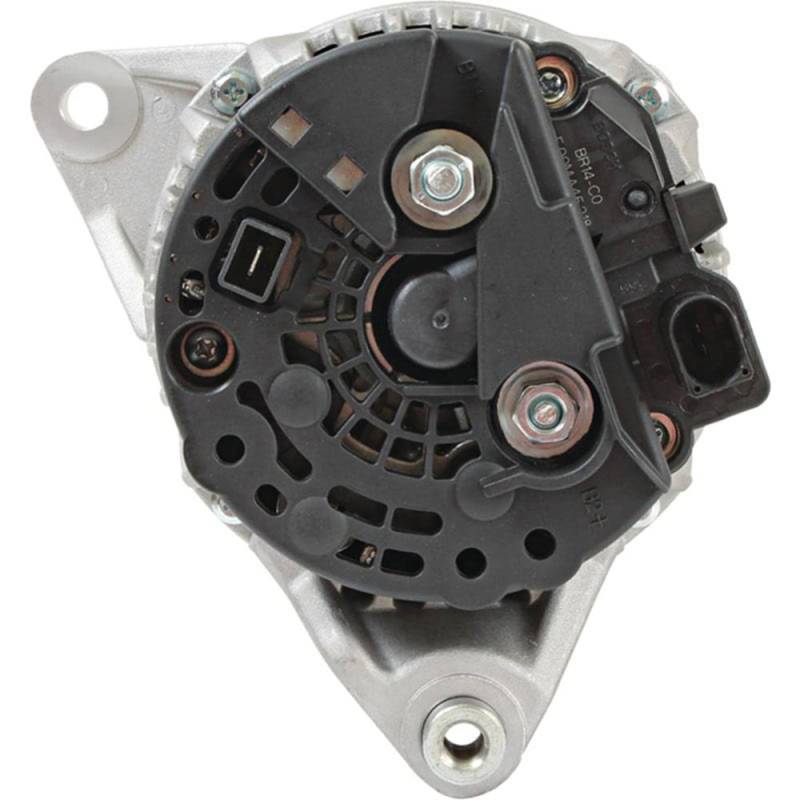

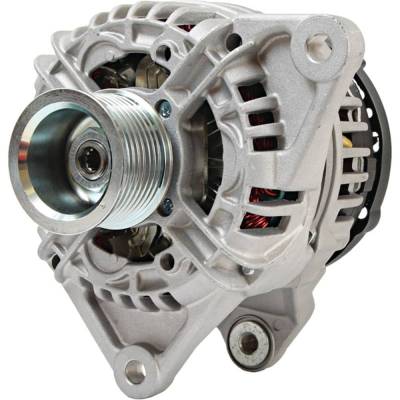

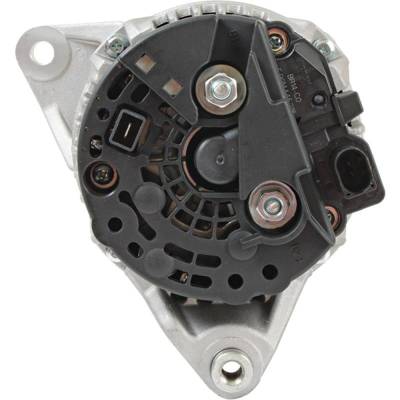

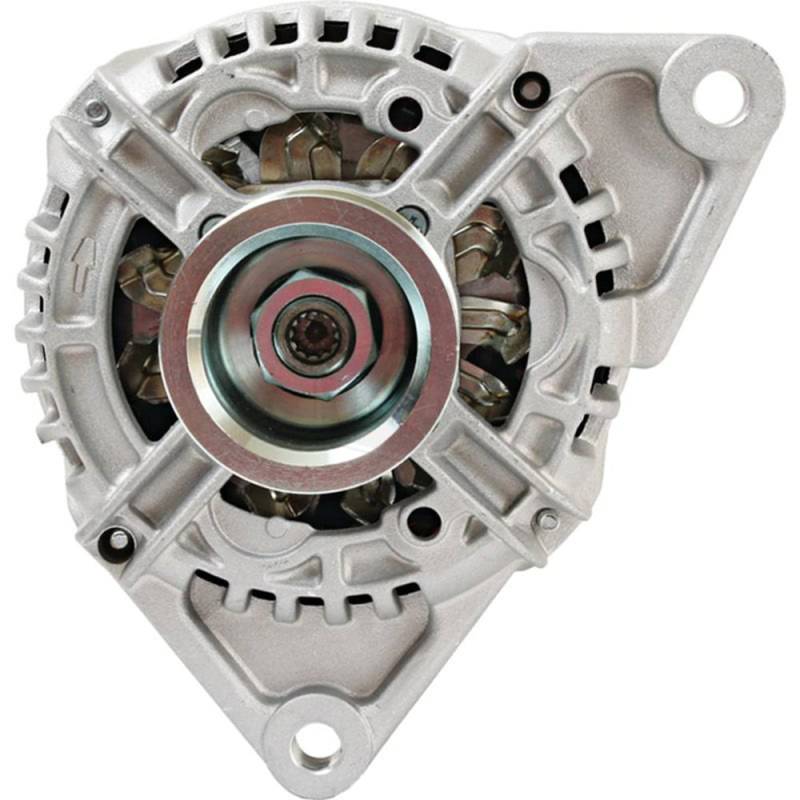

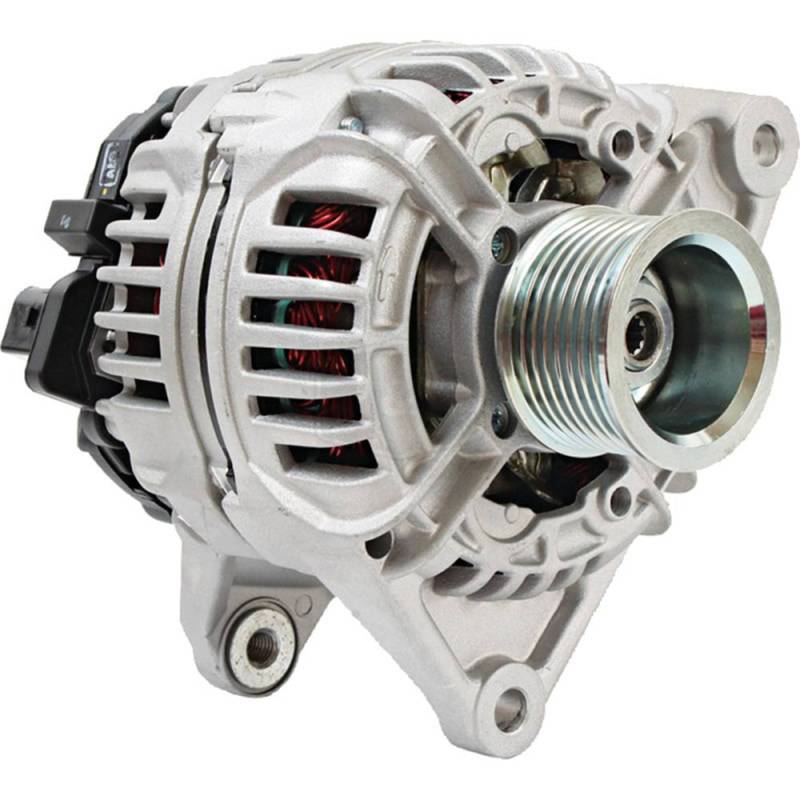

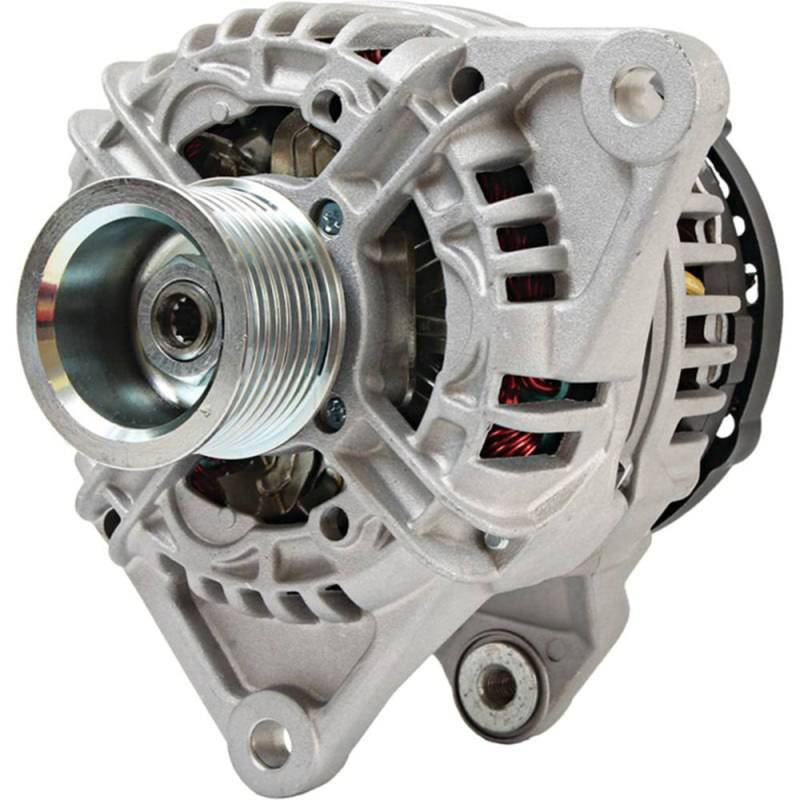

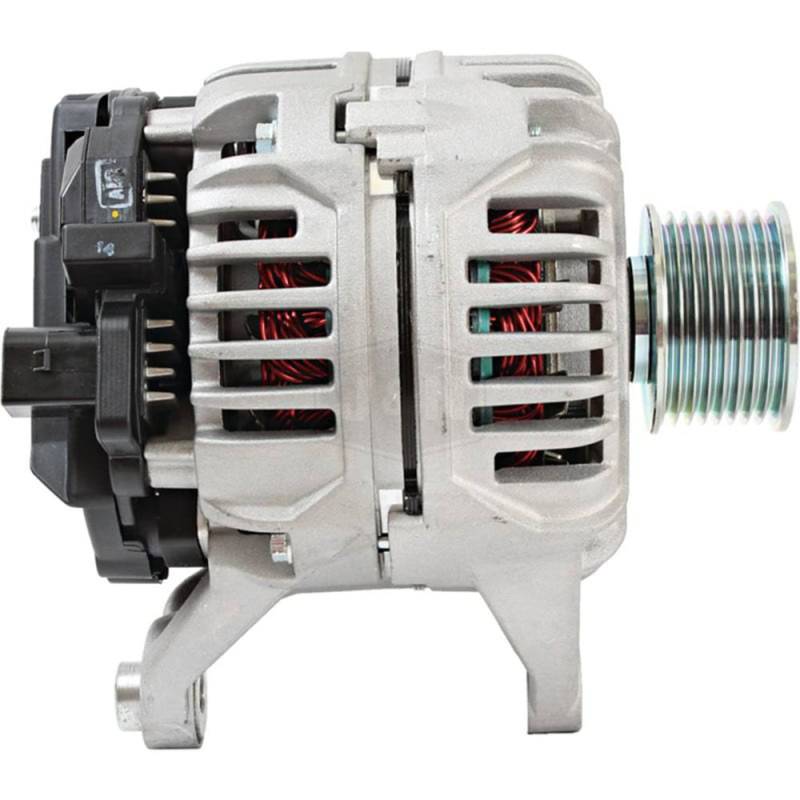

Alternator Compatible With 1999-2015 Case Tx742 Tx842 Tx945 New Holland Lm1445 Lm1740 Bosch

400-24074C3
BOSCH PART NUMBERS:
• 0 124 325 147, 0124325147
• 0 986 081 360, 0986081360
• 0 124 325 052, 0124325052
• 1 986 A00 727, 1986A00727

OEM PART NUMBERS:
• Iveco 504225814
• Case 2855975
• New Holland / CNH 504010576
• Claas 00903320
• Renault 7700377092
• Himoinsa 3063487
• Chrysler C8520046A, C852 0046A, 8520046A

VM MOTORI PART NUMBERS:
• 38522314F, 38 52 2314F
• 8520046A, 85 20 046A
• 38522341F

OTHER REPLACEMENT NUMBERS:
• Hella 8EL738020001
• DRI 519124902
• Eurotec 12090340
• Lucas LRA03280
• Delco Remy DRA0749

SPECIFICATIONS:
• Type: alternator, internal regulator, internal fan (IR/IF)
• Voltage: 12 volt (14V regulated)
• Output: 90 amp
• Rotation: clockwise
• Pulley: solid 8 groove serpentine, 55 mm OD
• Mounting: 3 holes, 2 x 11 mm unthreaded, 1 x M10 x 1.50 threaded
• B+ terminal: M8
• Body length: 188 mm (7.40 in)
• Polarity: negative ground
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $491.35
Sale: $280.77
Save: 43%
Save: $210.58
Qty:
Free Shipping!

Description

CLAAS TRACTORS:
• Claas Nectis 217 tractor with the Iveco F4CE0354C 3 cylinder diesel, 2005-up
• Claas Nectis 227 tractor with the Iveco F4CE0354C 3 cylinder diesel, 2005-up
• Claas Nectis 237 tractor with the Iveco F4CE0354C 3 cylinder diesel, 2005-up
• Claas Nectis 247 tractor with the Iveco NEF diesel, 2005-up
• Claas Nectis 257 tractor with the Iveco NEF diesel, 2005-up
• Claas Nectis 267 tractor with the Iveco NEF diesel, 2005-up

RENAULT TRUCKS:
• Renault Mascott 130.55 truck, 2.8 TD Iveco 8140.43S, 1999-2004
• Renault Mascott 130.65 truck, 2.8 TD Iveco 8140.43S, 1999-2004
• Renault Mascott 140.35 truck, 2.8 TD Iveco 8140.43K, 2001-2004
• Renault Mascott 140.55 truck, 2.8 TD Iveco 8140.43K, 2001-2004
• Renault Mascott 150.35 truck, 2.8 TD Iveco 8140.43N, 2001-2004

IVECO TRUCKS AND FIAT VANS:
• Iveco Vertis 90V16 truck with the NEF4 diesel, 2010-2012
• Iveco Vertis 130V18 truck with the NEF4 diesel, 2010-2012
• Fiat Ducato with the 2.3L 2287 cc 140 ci L4 diesel, 2011

HIMOINSA GENSETS AND OTHER EQUIPMENT:
• Himoinsa HFW 60 genset
• Himoinsa HFW 75 genset
• Himoinsa HFW 100 genset
• Himoinsa HFW 130 genset
• Himoinsa HFW 160 genset
• Himoinsa HFW 180 genset
• Himoinsa HFW 200 genset
• Redrock TH280S telehandler with the Iveco engine

IVECO FPT ENGINES:
• Iveco FPT NEF 3 cylinder 3363 cc industrial diesel
• Iveco FPT NEF 4 cylinder industrial diesel
• Iveco 8140.43S, 8140.43K, 8140.43N 2.8L diesel

ALSO FITS, TELEHANDLERS:
• Kobelco T13 telehandler with the CNH 4.5L 275 ci L4 diesel, 2003-2005
• Kobelco T14 telehandler with the CNH 4.5L 275 ci L4 diesel, 2003-2007
• Kobelco T17 telehandler with the CNH 4.5L 275 ci L4 diesel, 2003-2005
• Komatsu WH609-1 telehandler with the Komatsu SAAD104E 4.5L 274 ci L4 (Iveco NEF diesel), 2004-2013
• Komatsu WH613-1 telehandler with the Komatsu SAAD104E 4.5L 274 ci L4 (Iveco NEF diesel), 2004-2013
• Komatsu WH713-1 telehandler with the Komatsu SAAD104E 4.5L 274 ci L4 (Iveco NEF diesel), 2004-2013
• Komatsu WH714-1 telehandler with the Komatsu SAAD104E 4.5L 274 ci L4 (Iveco NEF diesel), 2004-2013
• Komatsu WH714H-1 telehandler with the Komatsu SAAD104E 4.5L 274 ci L4 (Iveco NEF diesel), 2004-2013
• Komatsu WH716-1 telehandler with the Komatsu SAAD104E 4.5L 274 ci L4 (Iveco NEF diesel), 2004-2013
• Case TX742 telehandler with the Case Family IV 4.5L 275 ci L4 (Iveco NEF diesel), 2007-2014
• Case TX842 telehandler with the Case Family IV 4.5L 275 ci L4 (Iveco NEF diesel), 2006-2015
• Case TX945 telehandler with the Case Family IV 4.5L 275 ci L4 (Iveco NEF diesel), 2006-2015
• Case TX1055 telehandler with the Case Family IV 4.5L 275 ci L4 (Iveco NEF diesel), 2008-2014
• New Holland LM415A telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2003-2008
• New Holland LM435A telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2003-2008
• New Holland LM445A telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2003-2008
• New Holland LM1340 telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2004-2011
• New Holland LM1445 telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2006-2013
• New Holland LM1740 telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2002-2009
• New Holland LM5040 telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2007-2013
• New Holland LM5060 telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2007-2013
• New Holland LM5070 telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2007-2013
• New Holland LM5080 telehandler with the 4.5L 275 ci L4 Case (Iveco NEF) diesel, 2007-2013
• New Holland M357 telehandler with the 4.5L 275 ci L4 NEF diesel, 2007-2015
• New Holland M427 telehandler with the 4.5L 275 ci L4 NEF diesel, 2007-2015
• New Holland M428 telehandler with the 4.5L 275 ci L4 NEF diesel, 2007-2012
• New Holland M459 telehandler with the 4.5L 275 ci L4 NEF diesel, 2007-2012
• New Holland M551 telehandler with the 4.5L 275 ci L4 NEF diesel, 2007-2015

ALSO FITS, NEW HOLLAND IRRIGATION POWER UNITS:
• New Holland S70 irrigation power unit with the FPT F4GE 4.5L 275 ci L4, 2007-2015
• New Holland S85 irrigation power unit with the FPT F4GE 4.5L 275 ci L4, 2007-2015
• New Holland S110 irrigation power unit with the FPT F4GE 4.5L 275 ci L4, 2007-2011
• New Holland S140 irrigation power unit with the FPT F4GE 4.5L 275 ci L4, 2009-2015
• New Holland S170 irrigation power unit with the FPT F4GE 4.5L 275 ci L4, 2010-2014
• New Holland S215 irrigation power unit with the FPT F4HE 4.5L 275 ci L4, 2011-2015
• New Holland S240 irrigation power unit with the FPT F4HE 4.5L 275 ci L4, 2010-2015

SPECIFICATIONS:
• Type: alternator, internal regulator, internal fan (IR/IF)
• Voltage: 12 volt (14V regulated)
• Output: 90 amp
• Rotation: clockwise
• Pulley: solid 8 groove serpentine, 55 mm OD
• Mounting: 3 holes, 2 x 11 mm unthreaded, 1 x M10 x 1.50 threaded
• B+ terminal: M8
• Body length: 188 mm (7.40 in)
• Polarity: negative ground
• Condition: New aftermarket
