Mechanical Fuel Pump Compatible With 1989-1993 D250 D350 W250 W350 Pickup 5.9L L6 Cummins 6Bt Diesel

OEM PART NUMBERS:
• Chrysler: 4429374, 68047915AA, 5012376AA, 5012376AB, 5174673AA
• Cummins: 3904374

SPECIFICATIONS:
• Type: Mechanical Fuel Pump (Diaphragm/Lift Pump)
• Inlet OD: 0.375 in (3/8") / Inlet: 1 / Outlet: 1
• System Pressure: 7 PSI / Max Pressure: 9 PSI
• Gaskets Included: Yes (2)
• Weight: 3 lbs / Condition: New

APPLICATION:
• D250/D350 Pickup Cummins 5.9L 6BT Diesel (1989-1993)
• W250/W350 Pickup 4WD Cummins 5.9L 6BT Diesel (1989-1993)

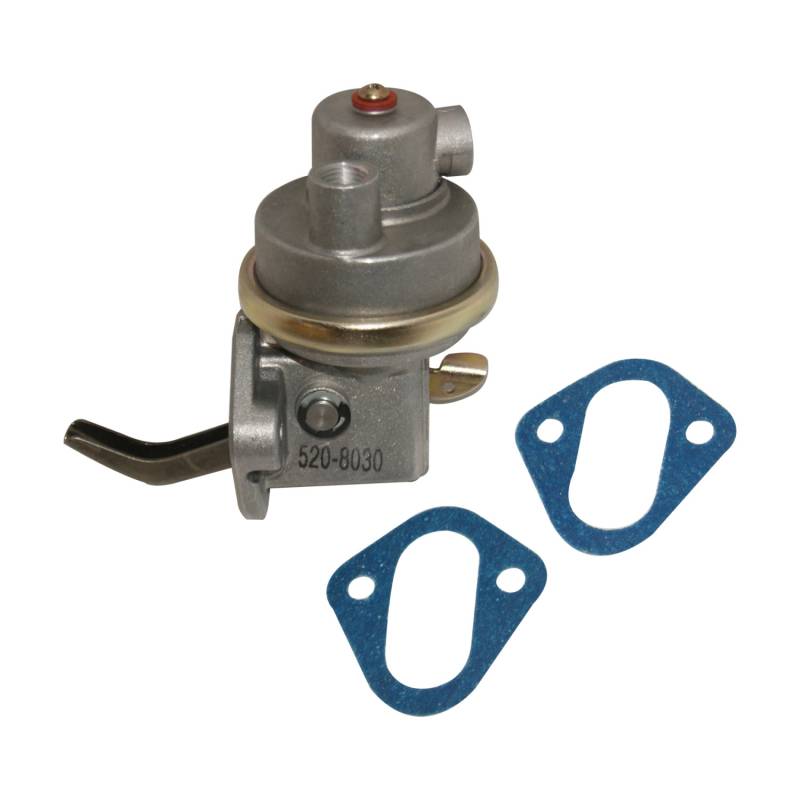

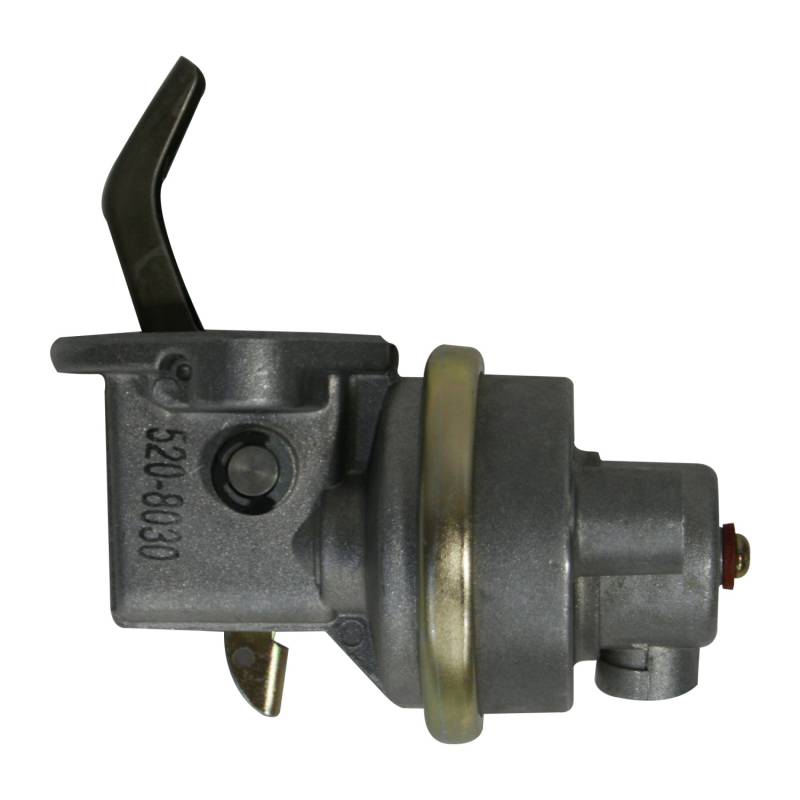

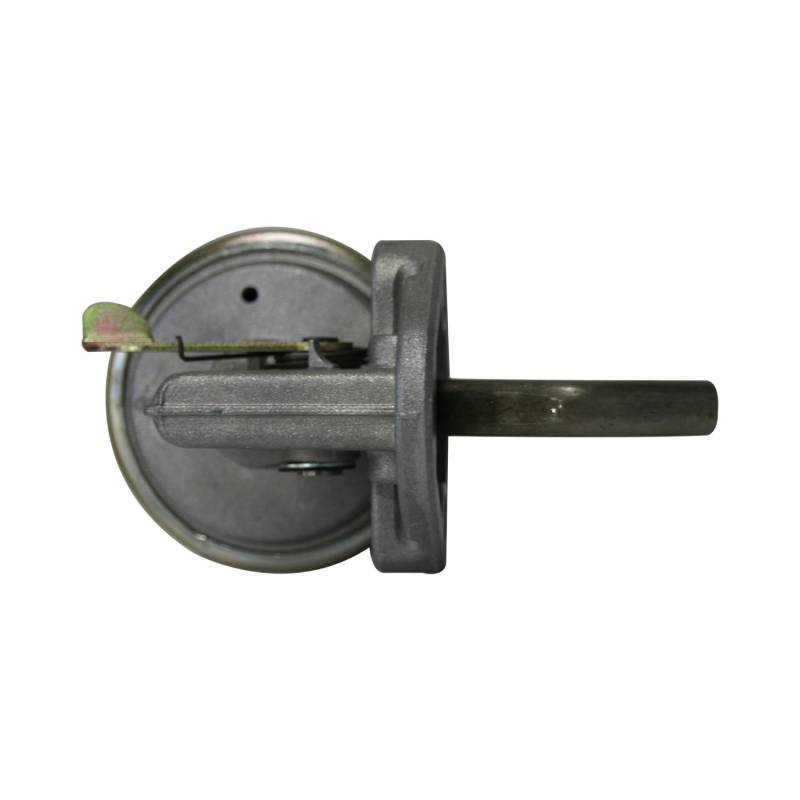

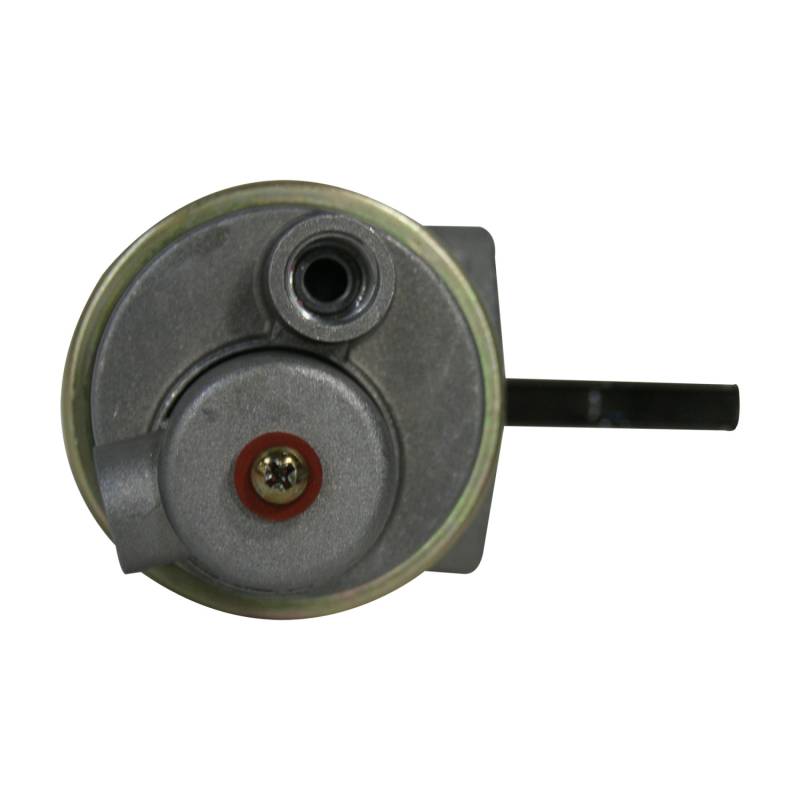

Mechanical Fuel Pump — D250 D350 W250 W350 5.9L Cummins 6BT Diesel
Direct replacement mechanical fuel lift pump for pickups powered by the Cummins 5.9-liter inline-six turbodiesel. This engine-mounted diaphragm pump transfers fuel from the tank to the Bosch VE injection pump at 7 PSI operating pressure. The 3/8-inch inlet and single outlet match the factory configuration for a bolt-on installation. Two mounting gaskets are included for a complete seal. Compatible with the D250 and D350 two-wheel-drive models and the W250 and W350 four-wheel-drive models from 1989 to 1993. Replaces Chrysler part numbers 5012376AA, 5174673AA, 4429374, 68047915AA, and Cummins 3904374. Maximum pressure rating of 9 PSI.
