Fuel Pump Module Assembly Compatible With 1991-1993 Ford Edge F600 F700 7.0L V8 1989-1997 F53

(0) Reviews: Write first review
525-2052-PIO
OEM PART NUMBERS:
• Ford: E9TZ-9H307-A / E9TZ9H307A
• Ford: F0TZ-9H307-M / F0TZ9H307M
• Ford: F1HZ-9A407-A / F1HZ9A407A
• Ford: F1HZ-9A407-B / F1HZ9A407B
• Ford: F3TZ-9A299-A / F3TZ9A299A
• Ford: F3TZ-9H307-A / F3TZ9H307A
• Ford: F3TZ-9H307-B / F3TZ9H307B
• Ford: F6PZ-9H307-DA / F6PZ9H307DA
• Ford: F6PZ-9H307-DB / F6PZ9H307DB
• Ford: F7TZ-9A299-AA / F7TZ9A299AA
• Ford: F7TZ-9H307-AA / F7TZ9H307AA

SPECIFICATIONS:
• Product Type: Fuel Pump Module Assembly (Electric In-Tank)
• Sub-Type: Module Assembly
• Fuel Type: Gasoline
• Fuel Sending Unit Included: No

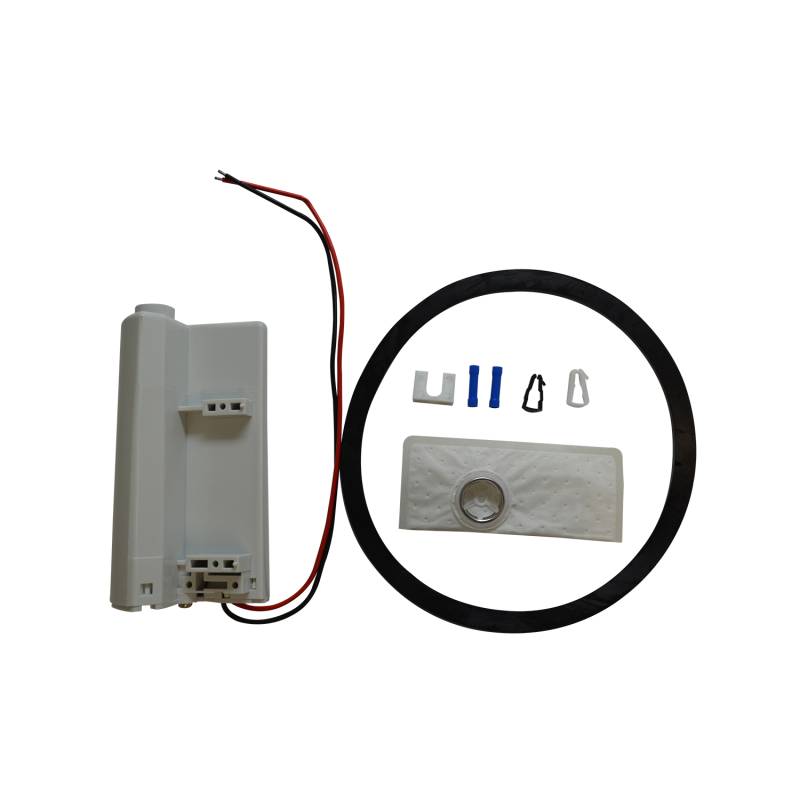

• Hardware: 1 O-Ring, 2 Plastic Clips, 1 Plastic Wedge, 2 Wire Connectors, 1 Fuel Screen
• Condition: New

APPLICATION SUMMARY:
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) Gasoline (1989-1997)
• Ford F-600 7.0L V8 (429 cu in) Gasoline Medium-Duty Truck (1991-1993)
• Ford F-700 7.0L V8 (429 cu in) Gasoline Medium-Duty Truck (1991-1993, 1995, 1997-1998)
• Diesel-engine F-600/F-700 NOT covered

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $276.54
Sale: $158.02
Save: 43%
Save: $118.52
Qty:
Free Shipping!

Description

FORD F-53 MOTORHOME CHASSIS — CLASS A MOTORHOME (7.5L V8 460 cu in):
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1989)
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1990)
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1991)
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1992)
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1993)
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1994)
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1995)
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1996)
• Ford F-53 Motorhome Chassis 7.5L V8 (460 cu in) EFI Gasoline Class A Motorhome (1997)

FORD F-600 MEDIUM-DUTY TRUCK — GASOLINE (7.0L V8 429 cu in):
• Ford F-600 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1991)
• Ford F-600 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1992)
• Ford F-600 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1993)

FORD F-700 MEDIUM-DUTY TRUCK — GASOLINE (7.0L V8 429 cu in):
• Ford F-700 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1991)
• Ford F-700 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1992)
• Ford F-700 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1993)
• Ford F-700 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1995)
• Ford F-700 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1997)
• Ford F-700 7.0L V8 (429 cu in) Gasoline Medium-Duty Commercial Truck (1998)

Technical Notes:
• F-600/F-700 diesel engines NOT covered by this part
• F-700 has non-contiguous fitment — 1994 and 1996 use different OEM numbers
• F-53: In-tank pump system; 7.5L = 460 cu in big block V8; stripped motorhome chassis
• F-600/F-700: 7.0L = 429 cu in commercial V8 (variant of the 460 family)
• Fuel Sending Unit: NOT included
• Hardware: 1 O-ring, 2 plastic clips, 1 plastic wedge, 2 wire connectors, 1 fuel screen

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.8 lbs.
  • W6.0000” x H6.0000” x L10.0000”
  • Free Shipping!
