71Mm Piston Kit Standard Bore Compatible With 1985-1987 Honda Atc250es Big Red 3-Wheeler Atc250sx

OEM CROSS-REFERENCE PART NUMBERS:
• 13101-HA0-004 (standard piston)
• 13101-HA0-000 (standard piston alternate)
• 13102-HA0-305 (0.25mm OS)
• 13103-HA0-305 (0.50mm OS)
• 13104-HA0-305 (0.75mm OS)
• 13105-HA0-305 (1.00mm OS)
• 13011-HA0-004 (ring set)
• 13111-HA0-000 (piston pin)
• 12100-HA0-000 (cylinder)
• 12191-HA0-000 (base gasket)
• 12251-HA0-000 (head gasket)

SPECIFICATIONS:

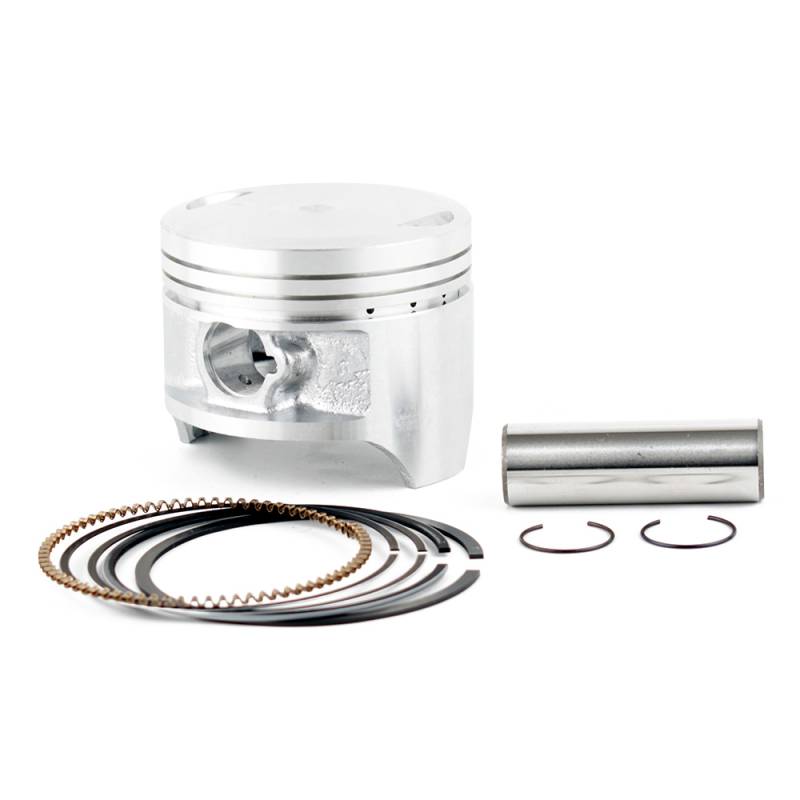

• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Standard Bore: 71.00mm (2.795")
• Cylinders: Single Cylinder
• Engine Type: 246cc Air-Cooled 4-Stroke OHC
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• Honda ATC250ES Big Red 3-Wheeler (1985-1987)
• Honda ATC250SX 3-Wheeler (1985-1987)
• Honda TRX250 FourTrax 250 (1985-1987)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
