OEM PART NUMBERS:
• Caterpillar: 1065122 / 106-5122 / 1065122-A / 106-5122-A / CA1065122
• Caterpillar: 3E1909 / 3E-1909
• Caterpillar: 3184258 / 318-4258 / CA3184258
• Sanden: 4049 / 4479 / 4640 / 4658 / 7990 / 8058 / 8066 / 8109
SPECIFICATIONS:

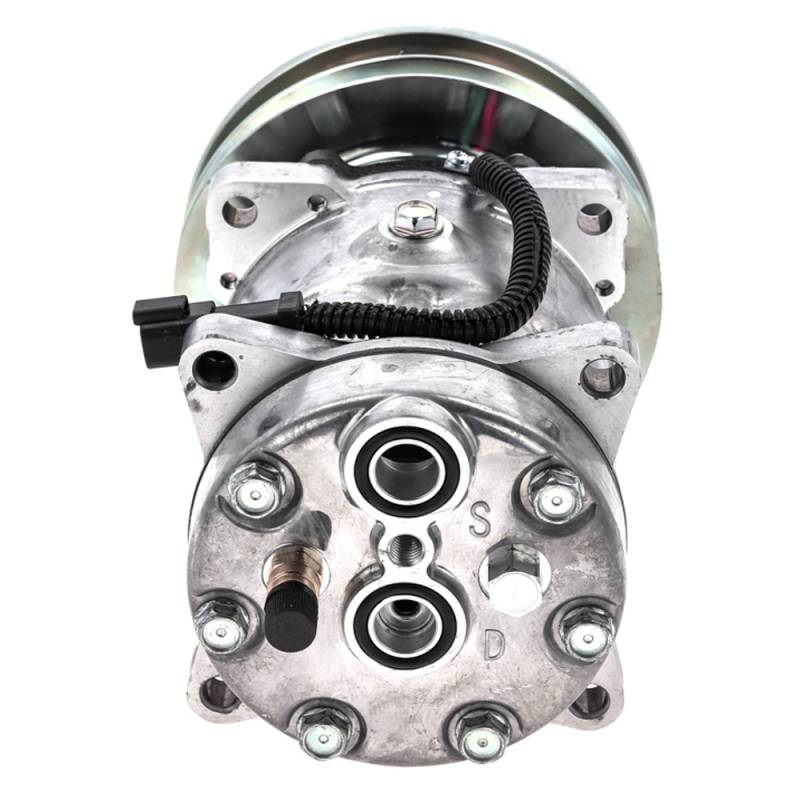

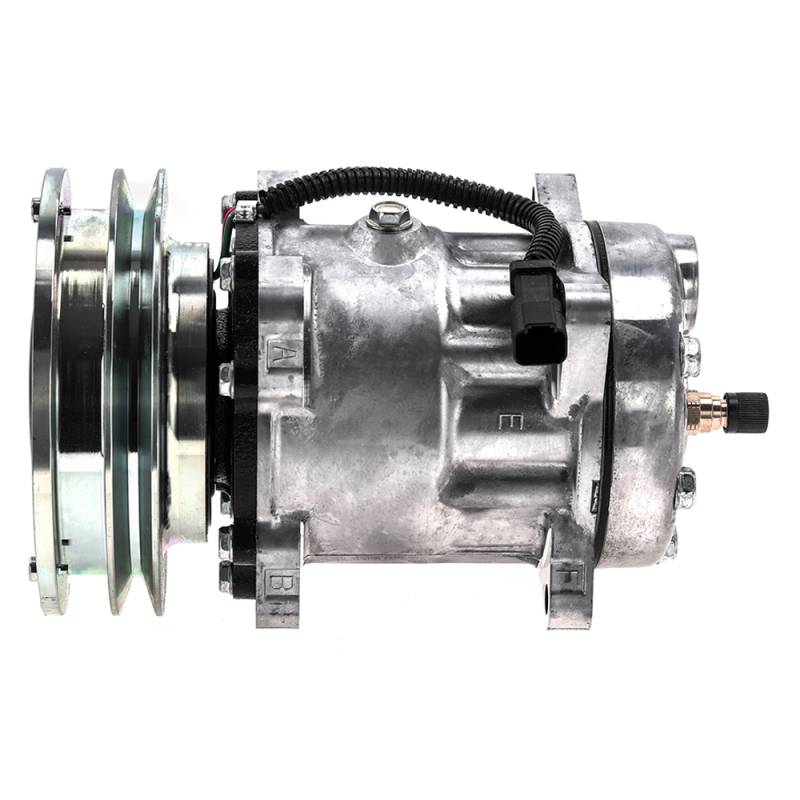

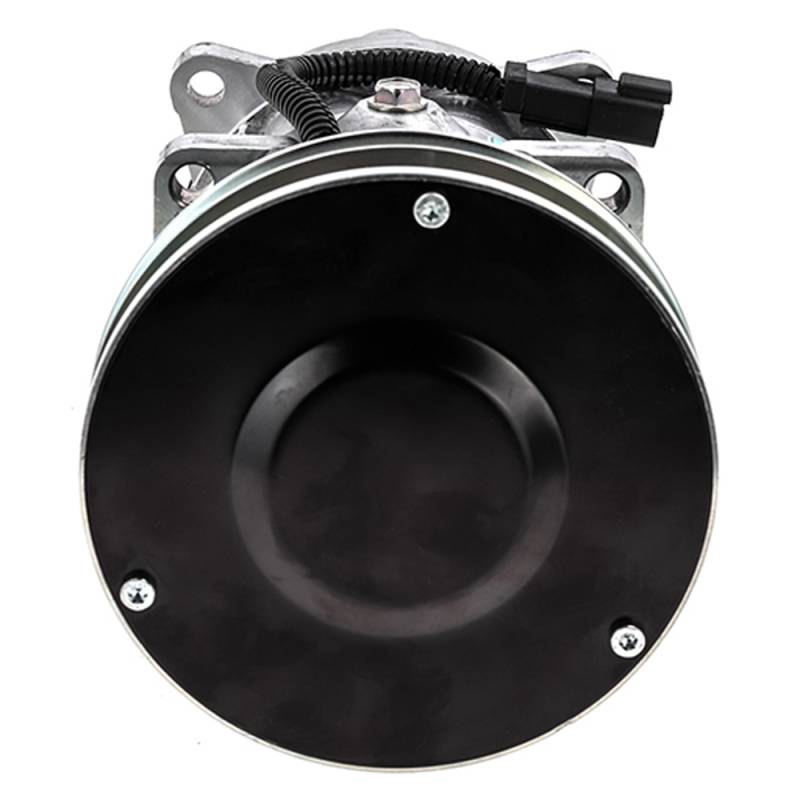

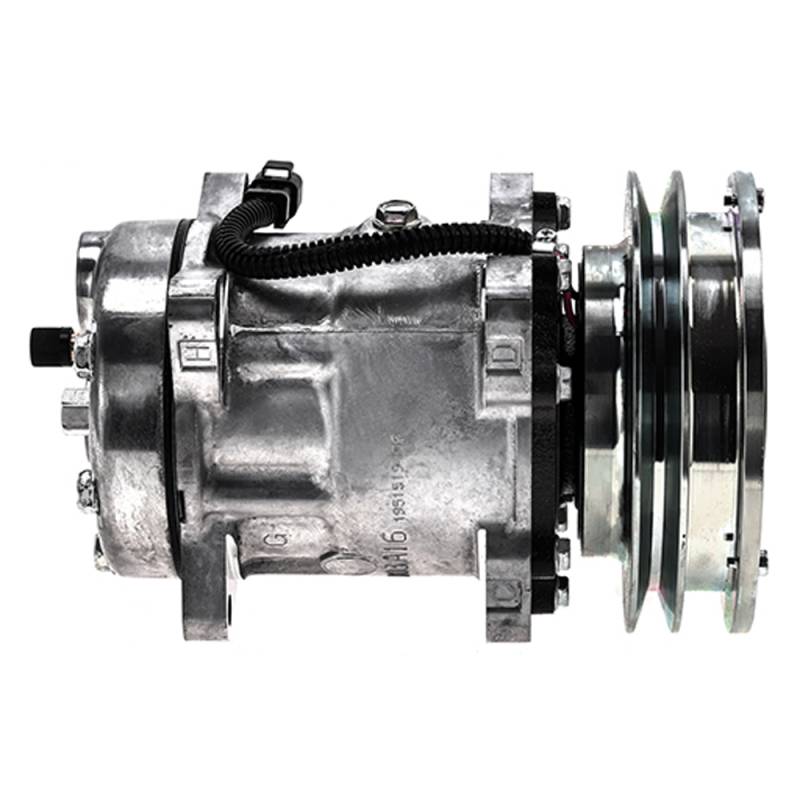

• Compressor Type: Sanden SD7H15 (Sealed Heavy Duty, 7-Cylinder Swashplate)
• Voltage: 24V
• Refrigerant: R-134a
• Oil Type: SP15 or PAG 100
• Oil Capacity: 300cc
• Clutch: 1-Groove V-Belt with Dust Cover
• Pulley Diameter: 152mm (5.98")
• Mount: Ear Mount
• Rotation: CW (Clockwise)
• Cylinder Head: GK, Horizontal Ports, O-Ring Compression
• Gauge Line: 40mm
• Coil Connector: 2-Wire Deutsch
• Coil Position: 12 O'clock
• Material: Aluminum
• Condition: New — Complete Assembly with Clutch
CATERPILLAR EQUIPMENT APPLICATIONS:
• Wheel Loaders: 924G, 924GZ, 928F, 928G, 930G, 938F, 938G, 950F II, 950G, 960F, 962G, 980G
• Track Loaders: 953B, 953C, 963B, 963C, 973C
• Track-Type Tractors: D5M, D6G2, D6M, D6R, D6R II, D7G2, D7R II, D9R, D10N, D10R
• Integrated Toolcarriers: IT28F, IT28G, IT38F
• Wheeled Excavators: M313D, M315D, M315D2, M316D, M317D2, M318D, M320D2, M322D
• Feller Bunchers: 539, 550B, 554, 560B, 564, 574B, 1090, 1190, 1190T, 1290T, 1390
• Vibratory Compactors: CP-573E, CP-663E, CS-563E, CS-583E, CS-663E, CS-683E
