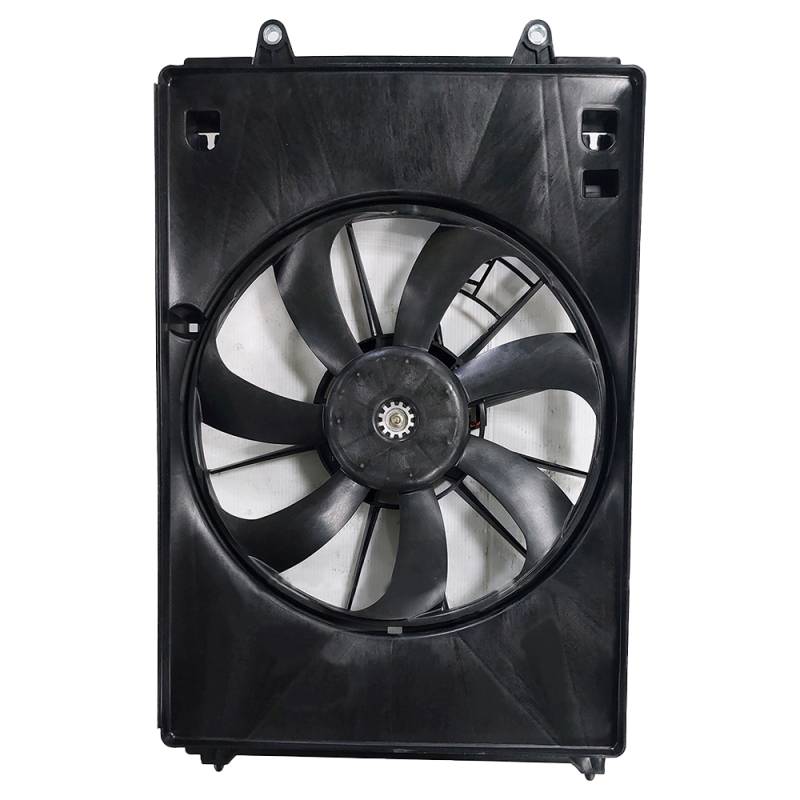

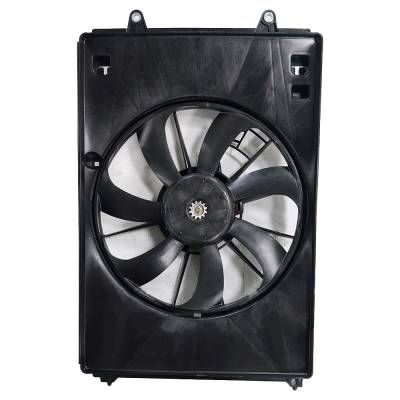

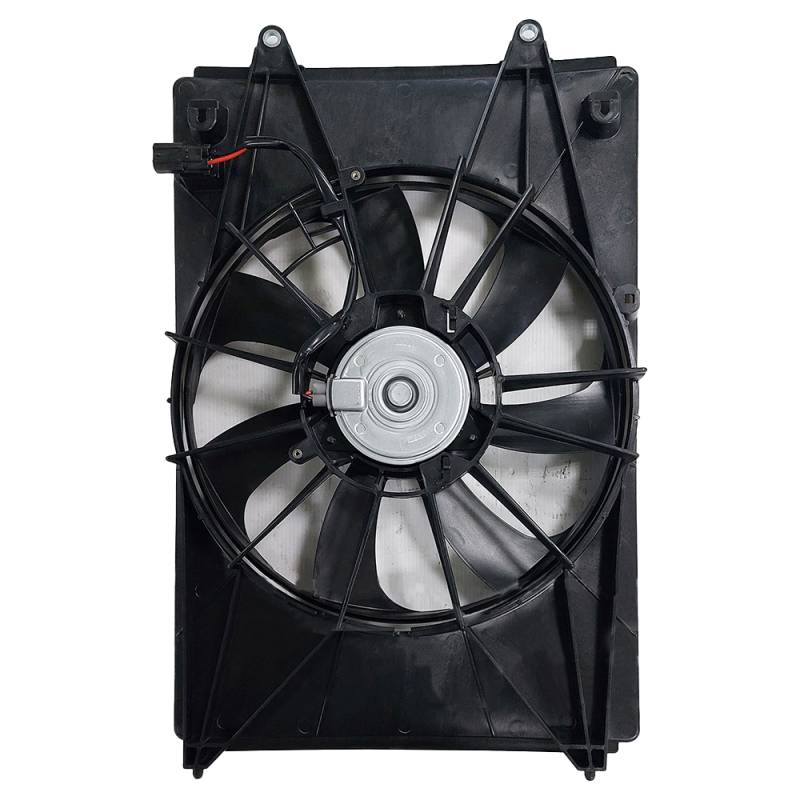

New A/C Condenser Fan Assembly Compatible With 2022-2024 Acura Mdx Base Sh-Awd Sport Utility 4-Door

611630A1
OEM PART NUMBERS:
• Acura: 38615-61A-A01
• Acura: 3861561AA01 (No-Dash Format)
• Partslink: AC3113122
• Interchange: 762405-23786-2

SPECIFICATIONS:
• Item: A/C Condenser Fan Assembly
• Unit Type: Acura Original Equipment Spec
• Product Type: Cooling Fan
• Configuration: A/C Condenser Fan Assembly
• Fan Type: Double Fan
• Fan Blade Material: PA + GF (Polyamide + Glass Fiber)
• Shroud: Included
• Shroud Material: PA + GF (Polyamide + Glass Fiber)

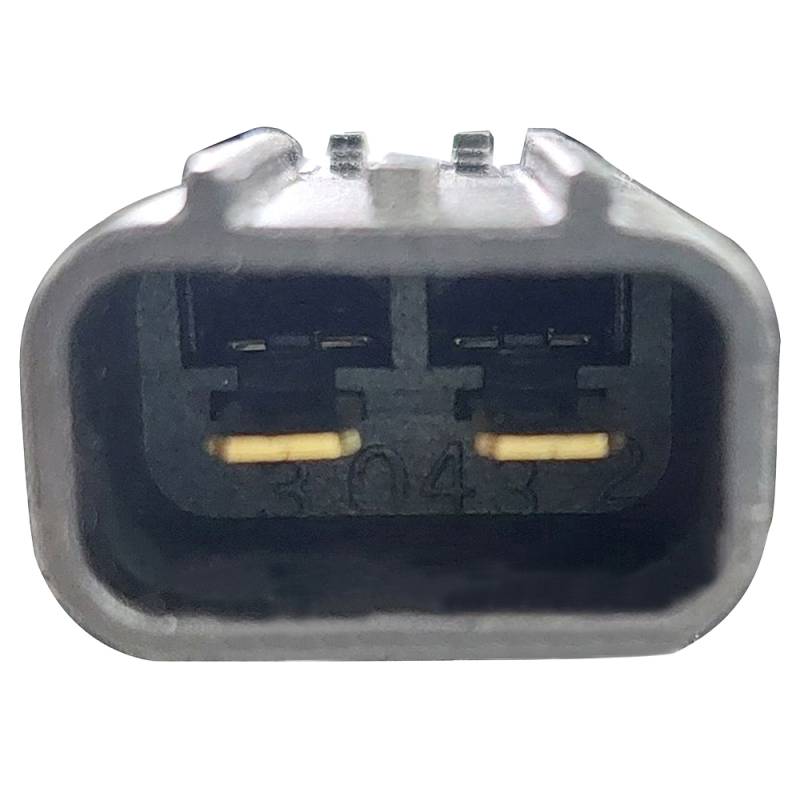

• Connector Quantity: 1
• Connector Terminal Quantity: 2
• Connector Type: Male
• Condition: New

MAKE/CATEGORY APPLICATIONS:
• Acura MDX 4th Generation YD4 Platform 3.5L V6 (2022-2024)
• Acura MDX Base FWD / SH-AWD AWD Variants (2022-2024)
• Acura MDX Technology / A-Spec / Advance Trims (2022-2024)
• Excludes Acura MDX Type S (3.0L V6 Turbo uses different fan)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $208.55
Sale: $119.17
Save: 43%
Save: $89.38
Qty:
Free Shipping!

Description

ACURA MDX 4TH GEN YD4 — 2022-2024 Base Front-Wheel Drive:
• Acura MDX Base 3.5L V6 J35Y8 290HP FWD Sport Utility 4-Door (2022)
• Acura MDX Base 3.5L V6 J35Y8 290HP FWD Sport Utility 4-Door (2023)
• Acura MDX Base 3.5L V6 J35Y8 290HP FWD Sport Utility 4-Door (2024)
• Acura MDX Technology 3.5L V6 FWD Sport Utility (2022-2024)
• Acura MDX A-Spec 3.5L V6 FWD Sport Package (2022-2024)
• Acura MDX Advance 3.5L V6 FWD Premium Package (2022-2024)

ACURA MDX 4TH GEN YD4 — 2022-2024 SH-AWD Super Handling All-Wheel Drive:
• Acura MDX SH-AWD Base 3.5L V6 J35Y8 AWD Sport Utility (2022)
• Acura MDX SH-AWD Base 3.5L V6 J35Y8 AWD Sport Utility (2023)
• Acura MDX SH-AWD Base 3.5L V6 J35Y8 AWD Sport Utility (2024)
• Acura MDX SH-AWD Technology 3.5L V6 AWD (2022-2024)
• Acura MDX SH-AWD A-Spec 3.5L V6 AWD Sport Package (2022-2024)
• Acura MDX SH-AWD Advance 3.5L V6 AWD Premium Package (2022-2024)

NOTE: This fan is for 3.5L V6 non-Type S variants only. Acura MDX Type S uses 3.0L V6 Turbo engine with different fan assembly (38615-RYE-A01).

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 6.7 lbs.
  • W17.2800” x H5.5200” x L26.5200”
  • Free Shipping!
