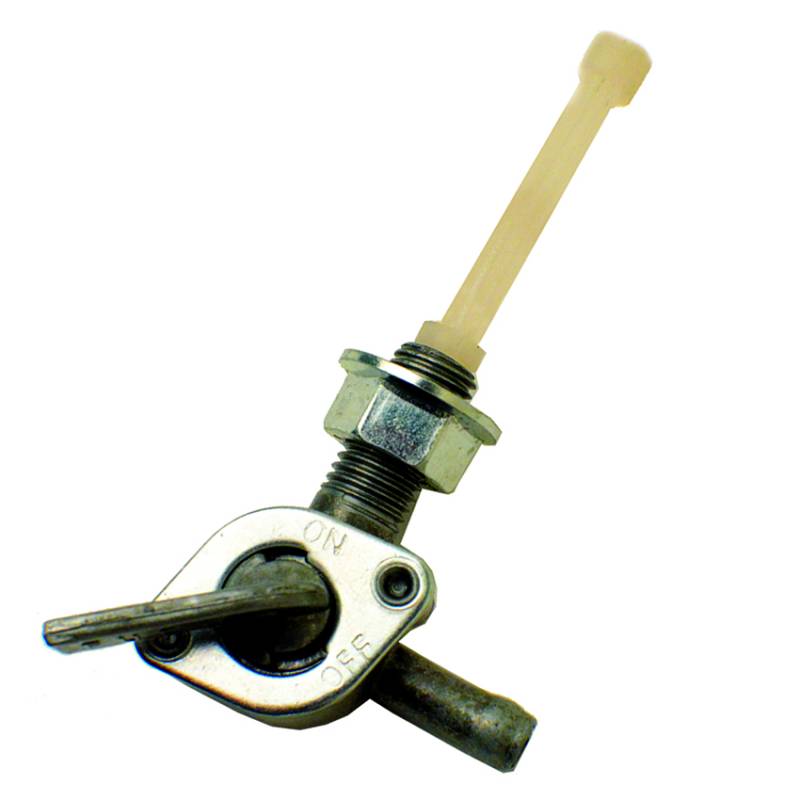

Gas Tank Fuel Valve Petcock Compatible With 1985-2003 Honda Xr80r Xr100r 1997-2003 Xr70r 2000-2003

OEM PART NUMBERS:
• Honda: 16950-GEL-701 / 16950GEL701
• Honda: 16950-KN4-A61 / 16950KN4A61
• Honda: 16950-GCF-671 / 16950GCF671
• Honda: 16950-GN1-871 / 16950GN1871
• Honda: 16950-MN1-871 / 16950MN1871

SPECIFICATIONS:
• Type: Fuel Valve Petcock
• Positions: 3 (On / Off / Reserve)
• Body Length: 120mm
• Straw Length: 78mm
• Straw Diameter: 10mm
• Fuel Outlet Length: 18mm
• Fuel Outlet Diameter: 6mm
• Mounting Bracket: 58mm
• Mounting Holes: 40mm Center-to-Center
• Mounting Bolt: M6 x 1.0
• Seal: O-Ring
• Material: Metal Alloy
• Condition: New

APPLICATION:
• Honda CRF50F 49cc (2004-2009, 2011-2015)
• Honda CRF70F 72cc (2004-2007)
• Honda CRF80F 80cc (2004-2007)
• Honda CRF100F 99cc (2004-2007)
• Honda CRF150F 149cc (2003-2017)
• Honda CRF230F 223cc (2003-2017)
• Honda XR50R 49cc (2000-2003)
• Honda XR70R 72cc (1997-2003)
• Honda XR80R 80cc (1985-1988, 1990-2003)
• Honda XR100R 99cc (1985-2003)
New fuel tank petcock shut off valve for Honda XR and CRF series off-road and trail motorcycles. The three-position lever provides On, Off, and Reserve fuel control for reliable fuel management during trail riding and off-road use. Metal alloy construction with a precision O-ring seal prevents fuel leakage at the gas tank mounting surface. Direct replacement for Honda OEM numbers 16950-GN1-871, 16950-GCF-671, 16950-GEL-701, and 16950-KN4-A61. Features a 78mm straw filter at 10mm diameter for clean fuel delivery and filtration from the bottom of the tank. Bolt-on installation requires no modifications to the fuel tank mounting points, using two M6 x 1.0 bolts at 40mm center-to-center on the 58mm mounting bracket. Total body length is 120mm with an 18mm fuel outlet at 6mm diameter. New part. Includes integrated straw OEM ⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.
