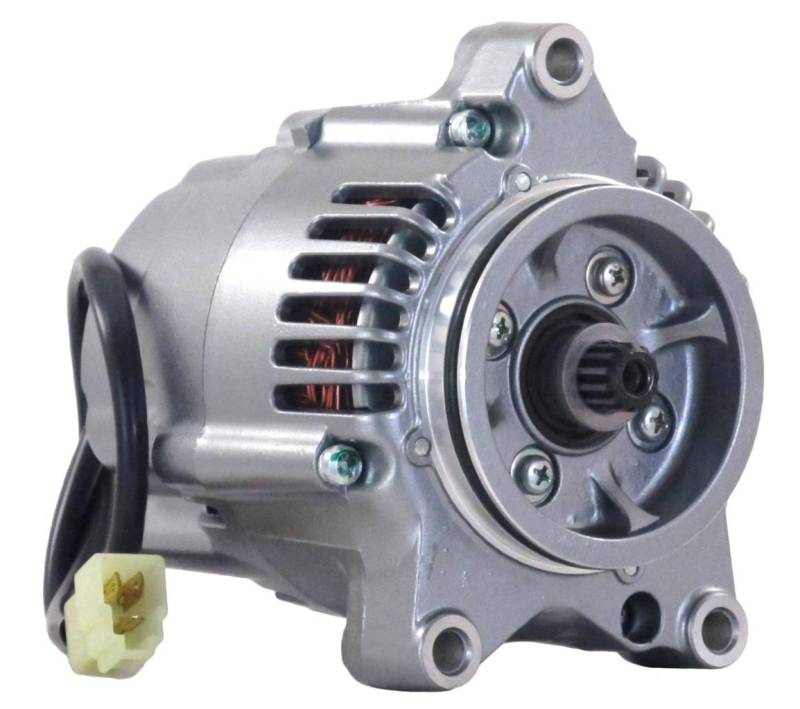

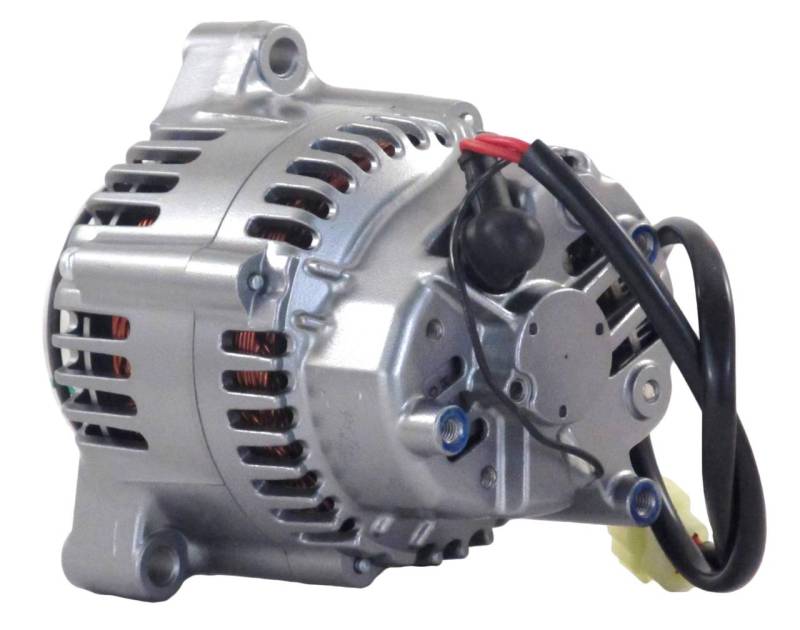

12V 35A Alternator Compatible With Kawasaki Zg1200 Voyager Xii 1196Cc Dohc 16-Valve Liquid-Cooled

(0) Reviews: Write first review
12481*4
OEM PART NUMBERS:
• Kawasaki: 21001-1068 / 210011068
• Kawasaki: 21001-1083 / 210011083
• Kawasaki: 21001-1121 / 210011121
• Kawasaki: 21001-1123 / 210011123
• Mitsubishi: A007T20199 / A007T20199ZC
• Mitsubishi: A7T20199 / A7T20199ZC

SPECIFICATIONS:
• Type: Alternator (Mitsubishi PMA IR/IF Design)
• Voltage: 12V
• Amperage: 35 Amp
• Rotation: CW (Clockwise)
• Fan: Internal (IF)
• Regulator: Internal (IR)
• Drive: Splined Shaft
• Output Stud: M5-0.8
• Mounting: 3× 8.5mm Unthreaded Ears
• Includes: Harness with Three Wire Plug
• Polarity: Negative Ground
• Pulley: Not Included
• Weight: 8.44 lbs / 3.84 kg
• Condition: New

KAWASAKI MOTORCYCLE APPLICATIONS:
• ZG1200 Voyager XII A1 1196cc DOHC 16V Inline-4 Liquid-Cooled 97HP (1986)
• ZG1200 Voyager XII B1-B17 1196cc DOHC 16V Inline-4 Liquid-Cooled 97HP (1987-2003)
• ZR1100 Zephyr A1-A4 1062cc DOHC 8V Inline-4 Air-Cooled 93HP (1992-1995)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $322.53
Sale: $184.30
Save: 43%
Save: $138.23
Qty:
Free Shipping!

Description

KAWASAKI ZG1200 VOYAGER XII — 1196cc DOHC 16-Valve Inline-4 Liquid-Cooled (1986-2003):
• ZG1200 Voyager XII A1 1196cc DOHC 16-Valve Inline-4 97HP (1986)
• ZG1200 Voyager XII B1 1196cc DOHC 16-Valve Inline-4 97HP (1987)
• ZG1200 Voyager XII B2 1196cc DOHC 16-Valve Inline-4 97HP (1988)
• ZG1200 Voyager XII B3 1196cc DOHC 16-Valve Inline-4 97HP (1989)
• ZG1200 Voyager XII B4 1196cc DOHC 16-Valve Inline-4 97HP (1990)
• ZG1200 Voyager XII B5 1196cc DOHC 16-Valve Inline-4 97HP (1991)
• ZG1200 Voyager XII B6-B17 1196cc DOHC 16-Valve Inline-4 97HP (1992-2003)

KAWASAKI ZR1100 ZEPHYR — 1062cc DOHC 8-Valve Inline-4 Air-Cooled (1992-1995):
• ZR1100 Zephyr A1 1062cc DOHC 8-Valve Inline-4 93HP (1992)
• ZR1100 Zephyr A2 1062cc DOHC 8-Valve Inline-4 93HP (1993)
• ZR1100 Zephyr A3 1062cc DOHC 8-Valve Inline-4 93HP (1994)
• ZR1100 Zephyr A4 1062cc DOHC 8-Valve Inline-4 93HP (1995)

ENGINE SPECIFICATIONS — ZG1200:
• 1196cc (72.9ci) Inline-4, DOHC, 4 Valves/Cyl (16-Valve), Liquid-Cooled
• Bore × Stroke: 78 × 62.6mm / Compression: 10.0:1
• 97 HP @ 7000 RPM / 79.5 lb-ft (108 Nm) @ 5000 RPM
• 4× Keihin CVK30 Carburetors, 5-Speed, Shaft Drive

ENGINE SPECIFICATIONS — ZR1100:
• 1062cc (64.8ci) Inline-4, DOHC, 2 Valves/Cyl (8-Valve), Air-Cooled
• Bore × Stroke: 73.5 × 62.6mm / Compression: 9.1:1
• 93 HP @ 8000 RPM / 65.6 lb-ft (89 Nm) @ 7000 RPM
• 4× Keihin CVK34 Carburetors, 5-Speed, Chain Drive
