OEM CROSS-REFERENCE PART NUMBERS:
• 13101-HM7-000 (standard piston)
• 13102-HM7-000 (0.25mm OS)
• 13103-HM7-000 (0.50mm OS)
• 13104-HM7-000 (0.75mm OS)
• 13105-HM7-000 (1.00mm OS)
• 13011-HM7-003 (ring set)
• 13111-HM7-000 (piston pin)
• 12191-HM7-000 (base gasket)
• 12251-HM7-003 (head gasket)
SPECIFICATIONS:

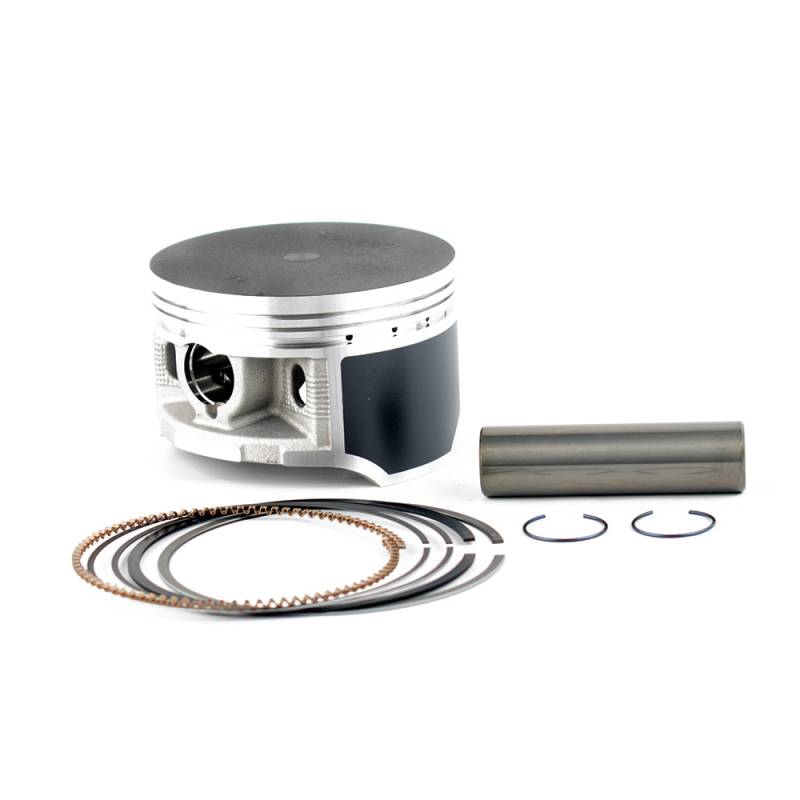

• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Standard Bore: 86.00mm (3.386")
• Stroke: 68.0mm
• Cylinders: Single Cylinder
• Engine Type: 395cc Air-Cooled 4-Stroke OHV
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating
• Kit Quantity: 1 Cylinder
COMPATIBILITY:
• Honda TRX400FW FourTrax Foreman 400 4x4 (1995-2003)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
