OEM CROSS-REFERENCE PART NUMBERS:
• 13101-HP0-A00 (standard piston)
• 13010-HP0-A01 (ring set)
• 13111-HP5-600 (piston pin)
• 13112-MAT-000 (circlips)
• 12100-HP0-A00 (cylinder)
• 12191-HP0-A01 (cylinder base gasket)
• 12251-HP0-A01 (cylinder head gasket)
SPECIFICATIONS:

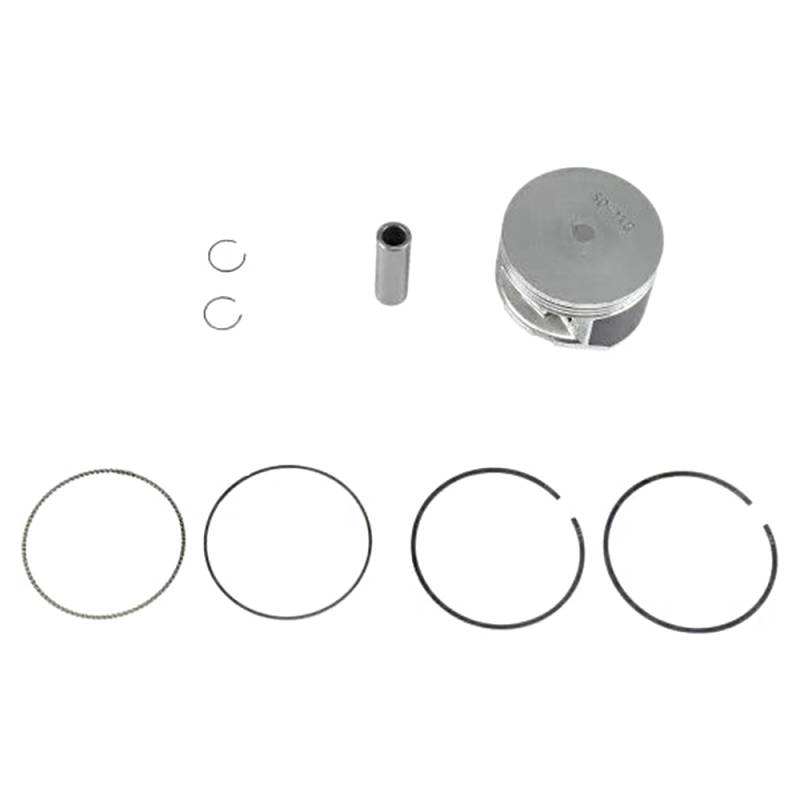

• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Size: 1.5mm Oversize
• Bore: 93.50mm (3.681")
• Standard Bore: 92.00mm (3.622")
• Stroke: 71.5mm
• Cylinders: Single Cylinder
• Engine Type: 475cc Air-Cooled OHV 4-Stroke
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating
• Kit Quantity: 1 Cylinder
COMPATIBILITY:
• Honda TRX500TM FourTrax Foreman 500 2WD (2005-2011)
• Honda TRX500FM Foreman 500 4x4 (2005-2011)
• Honda TRX500FE Foreman 500 4x4 ES (2005-2011)
• Honda TRX500FPM Foreman 500 4x4 EPS (2008-2011)
• Honda TRX500FPE Foreman 500 4x4 ES EPS (2008-2011)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
