OEM CROSS-REFERENCE PART NUMBERS:
• 13101-HR0-F00 (standard piston)
• 13010-HP0-A01 (ring set)
• 13111-HP5-600 (piston pin)
• 13112-MAT-000 (circlips)
• 12100-HR0-F00 (cylinder)
• 12191-HR0-F01 (cylinder base gasket)
• 12251-HR0-F01 (cylinder head gasket)
• 12315-HR0-F01 (cylinder head cover gasket)
SPECIFICATIONS:

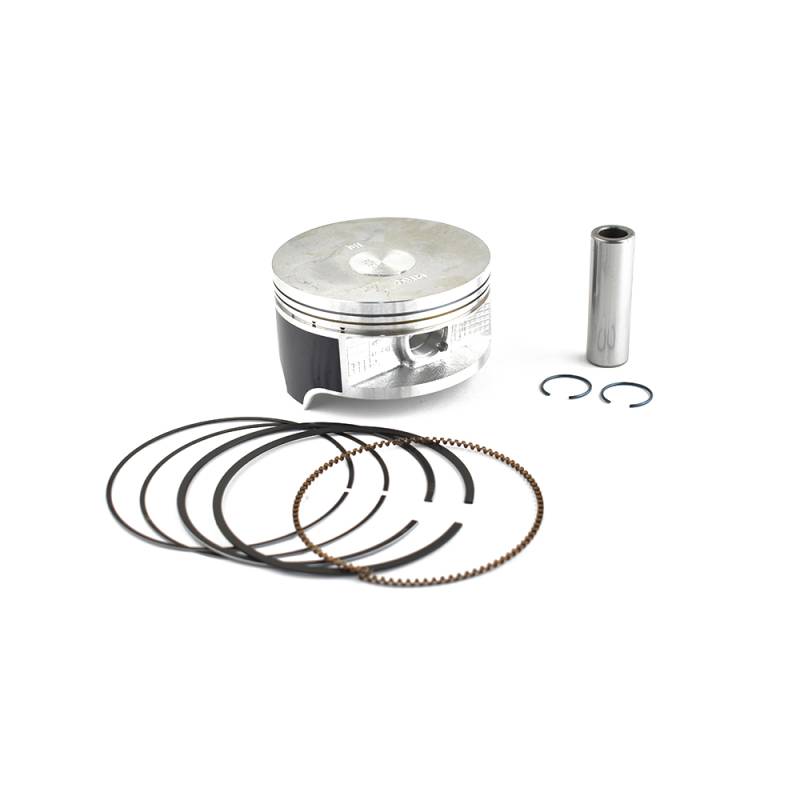

• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Size: Standard Bore
• Bore: 92.00mm (3.622")
• Cylinders: Single Cylinder
• Engine Type: 4-Stroke Liquid Cooled
• Displacement: 475cc/499cc
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating
• Kit Quantity: 1 Cylinder
COMPATIBILITY:
• Honda TRX500FE/FM Fourtrax Foreman 500 4x4 (2012-2019)
• Honda TRX500FPE/FPM Foreman 500 4x4 Power Steering (2012-2013)
• Honda TRX500FA/FM Foreman Rubicon 500 4x4 (2015-2019)
• Honda SXS500M2 Pioneer 500 UTV (2015-2021)
• All ES, DCT, EPS, and Deluxe variants
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
