SPECIFICATIONS:

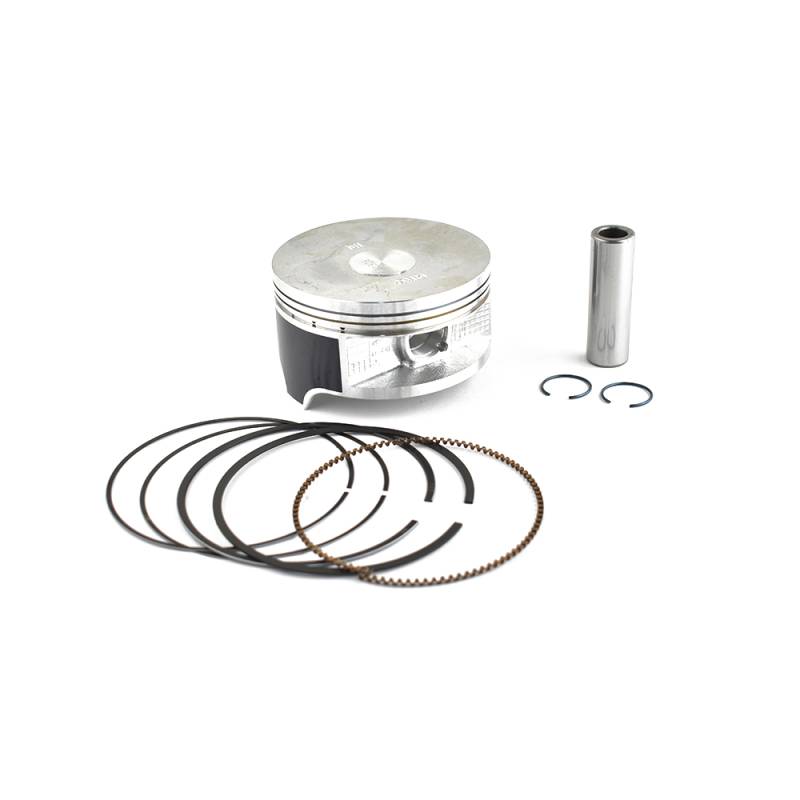

• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Oversize: 1.00mm Over
• Standard Bore: 92.00mm (3.622")
• Finished Bore: 93.00mm (3.661")
• Cylinders: Single Cylinder
• Engine Type: 4-Stroke Liquid Cooled
• Displacement: 475cc/499cc
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating
• Kit Quantity: 1 Cylinder
COMPATIBILITY:
• Honda TRX500FE/FM Fourtrax Foreman 500 4x4 (2012-2019)
• Honda TRX500FPE/FPM Foreman 500 4x4 Power Steering (2012-2013)
• Honda TRX500FA/FM Foreman Rubicon 500 4x4 (2015-2019)
• Honda SXS500M2 Pioneer 500 UTV (2015-2021)
NOTES:
• Cylinder must be bored to 93.00mm before installation
• Verify OEM part number and required oversize before ordering
