OEM CROSS-REFERENCE PART NUMBERS:
• 13103-HB9-305
SPECIFICATIONS:

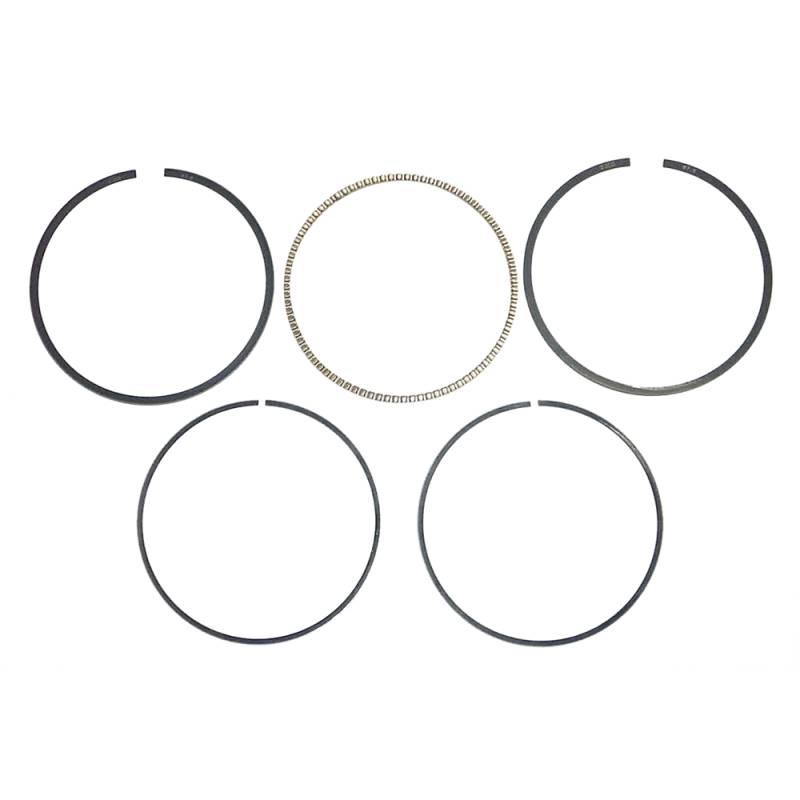

• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Oversize: .25mm Over
• Standard Bore: 66.00mm (2.598")
• Finished Bore: 66.25mm (2.608")
• Cylinders: Single Cylinder
• Engine Type: 2-Stroke Liquid Cooled
• Displacement: 249cc
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Forged Aluminum with MOS2 Coating
• Kit Quantity: 1 Cylinder
COMPATIBILITY:
• Honda ATC250R 2-Stroke (1985-1986)
• Honda TRX250R FourTrax 2-Stroke (1986)
• Honda CR250R Motocross 2-Stroke (1984-1985)
NOTES:
• Cylinder must be bored to 66.25mm before installation
• Verify OEM part number and required oversize before ordering
