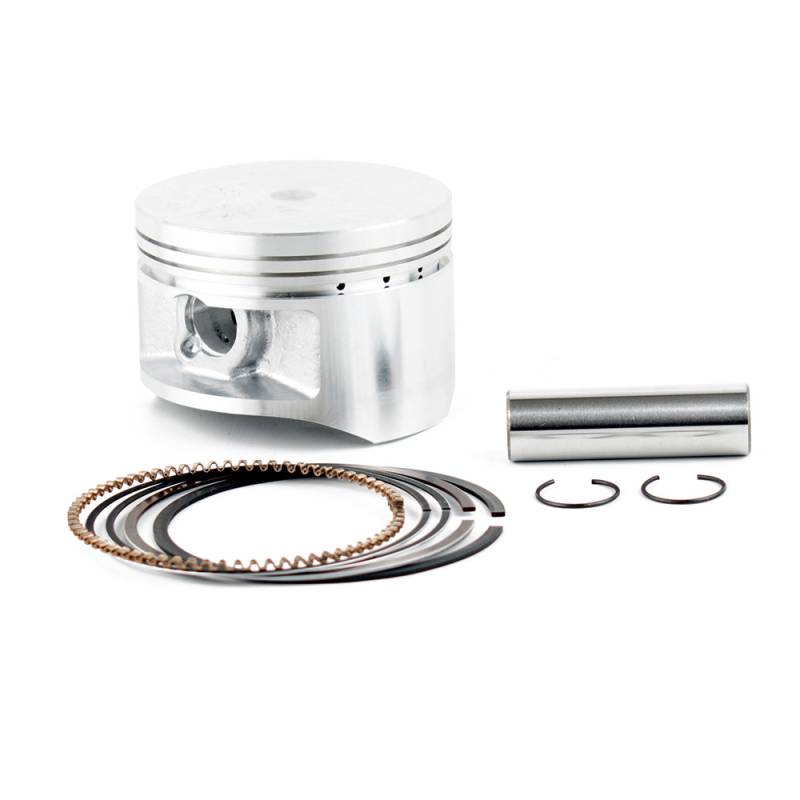

Piston Kit 0.25Mm Oversize 68.75Mm Bore Compatible With 1997-Present Honda Trx250 Recon Es Trx250ex

OEM CROSS-REFERENCE PART NUMBERS:
• 13101-HM8-000 (standard piston)
• 13101-HM8-A40 (standard piston superseded)
• 13102-HM8-000 (0.25mm OS)
• 13102-HM8-306 (0.25mm OS alternate)
• 13103-HM8-000 (0.50mm OS)
• 13103-HM8-306 (0.50mm OS alternate)
• 13104-HM8-000 (0.75mm OS)
• 13105-HM8-000 (1.00mm OS)
• 13011-HM8-003 (ring set)
• 13111-422-000 (piston pin)
• 13111-425-000 (piston pin alternate)
• 13111-HB5-000 (piston pin alternate)
• 06131-HM8-000 (complete kit)
• 06131-HM8-A40 (complete kit superseded)
• 12100-HN6-000 (cylinder)
• 12191-HM8-000 (base gasket)
• 12251-HN6-000 (head gasket)

SPECIFICATIONS:
• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Standard Bore: 68.50mm (2.697")
• Bore x Stroke: 68.5mm x 62.2mm
• Displacement: 229cc
• Cylinders: Single Cylinder
• Engine Type: Air-Cooled 4-Stroke OHV
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• Honda TRX250 Recon 229cc (1997-2001)
• Honda TRX250TE Recon ES 229cc (2002-Present)
• Honda TRX250TM Recon 229cc (2002-Present)
• Honda TRX250EX Sportrax 250 229cc (2001-2008)
• Honda TRX250X 229cc (2009-Present)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
