OEM CROSS-REFERENCE PART NUMBERS:
• Kawasaki 13001-S005 (piston standard)
• Kawasaki 13002-S005 (oversize piston)
• Kawasaki 13008-S005 (ring set standard)
• Kawasaki 13008-S006 (ring set 0.50mm OS)
• Kawasaki 13008-S007 (ring set 1.00mm OS)
• Kawasaki 92033-S024 (circlip)
• Suzuki 12110-40B01-0F0 (piston standard)
• Suzuki 12100-40B00-050 (piston set 0.50mm OS)
• Suzuki 12100-40B00-100 (piston set 1.00mm OS)
• Suzuki 12140-40B30 (oversize piston)
• Suzuki 12151-35400 (piston ring)
SPECIFICATIONS:
• Bore Size: 50.50mm
• Oversize: .50mm Over
• Standard Bore: 50mm
• Stroke: 42mm
• Displacement: 80cc
• Engine: 2-Stroke Single Cylinder Air Cooled
• Material: Aluminum Alloy

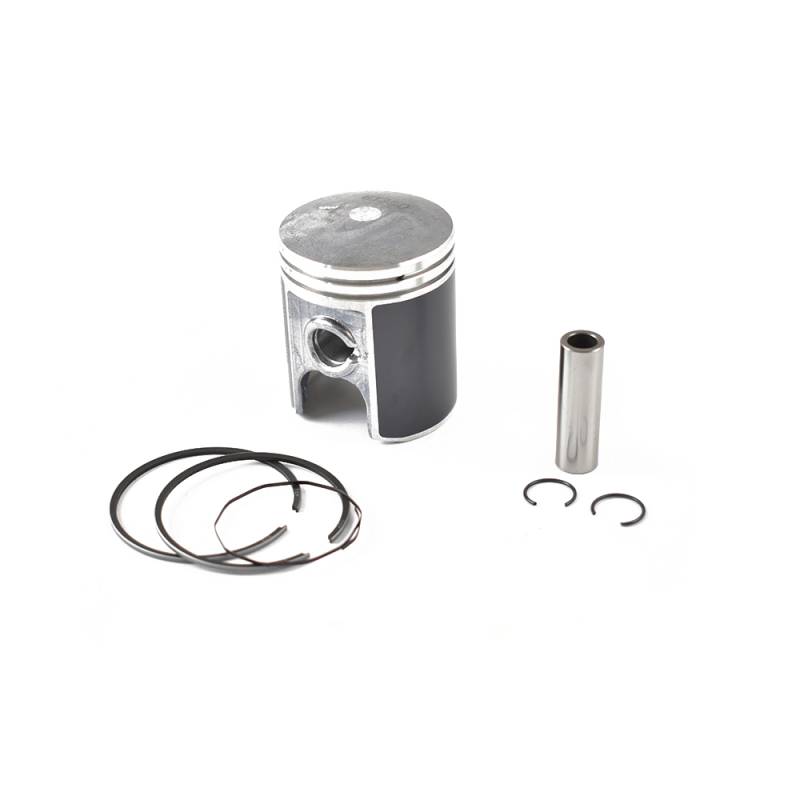

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
COMPATIBILITY:
• 1987-2006 Suzuki QuadSport 80 LT80 2x4
• 2003-2006 Kawasaki KFX80
• Both models share identical 80cc 2-stroke engine platform
• Standard bore 50mm with 42mm stroke
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
