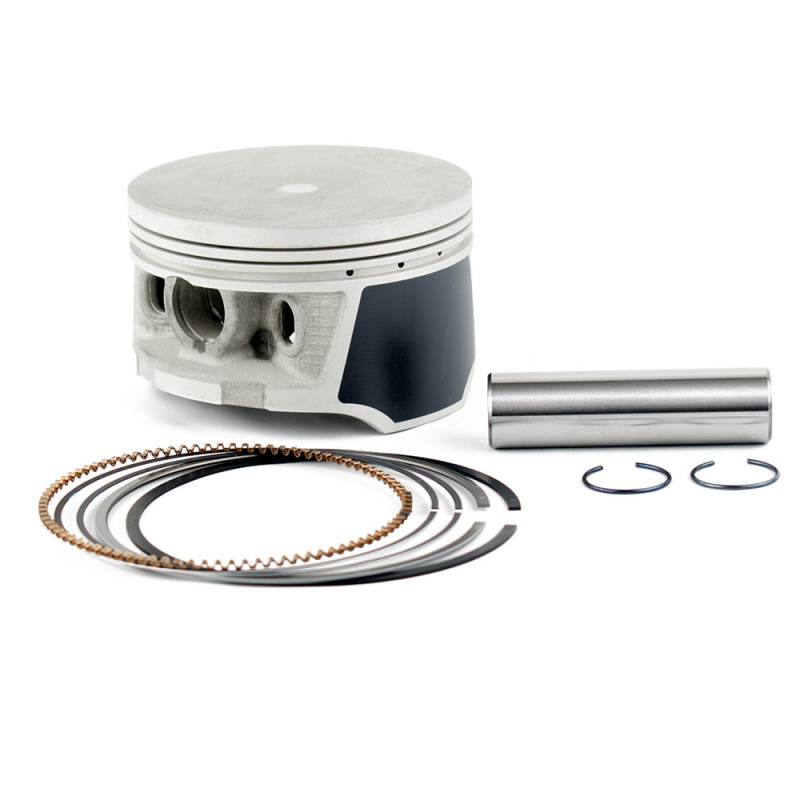

Piston Kit 0.25Mm Oversize 90.25Mm Bore Compatible With 1998-2004 Honda Trx450 Foreman Trx450s

OEM CROSS-REFERENCE PART NUMBERS:
• 13101-HN0-A00 (standard piston)
• 13102-HN0-A00 (0.25mm OS)
• 13103-HN0-A00 (0.50mm OS)
• 13104-HN0-A00 (0.75mm OS)
• 13105-HN0-A00 (1.00mm OS)
• 13010-HN0-A02 (ring set)
• 13111-HN0-A00 (piston pin)
• 13112-MAT-000 (circlip)
• 12100-HN0-A00 (cylinder)
• 12191-HM7-013 (base gasket)
• 12251-HN0-A01 (head gasket)

SPECIFICATIONS:
• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Standard Bore: 90.00mm (3.543")
• Bore x Stroke: 90.0mm x 68.0mm
• Displacement: 433cc
• Cylinders: Single Cylinder
• Engine Type: Air-Cooled 4-Stroke OHV
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating

COMPATIBILITY:
• Honda TRX450S Foreman S 433cc (1998-2001)
• Honda TRX450ES Foreman ES 433cc (1998-2001)
• Honda TRX450FE Foreman ES 4x4 433cc (2002-2004)
• Honda TRX450FM Foreman S 4x4 433cc (2002-2004)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
