Piston Kit 1.50Mm Oversize 80.00Mm Bore Compatible With 2000-2006 Honda Trx350 Fourtrax Rancher

OEM CROSS-REFERENCE PART NUMBERS:
• 13101-HN5-670 (standard piston)
• 13102-HN5-670 (0.25mm OS)
• 13103-HN5-670 (0.50mm OS)
• 13104-HN5-670 (0.75mm OS)
• 13105-HN5-670 (1.00mm OS)
• 13010-HN5-671 (ring set)
• 13111-HC0-000 (piston pin)
• 13112-HN5-670 (circlip)
• 12100-HN5-670 (cylinder)
• 12191-HN5-670 (base gasket)
• 12251-HN5-671 (head gasket)

SPECIFICATIONS:

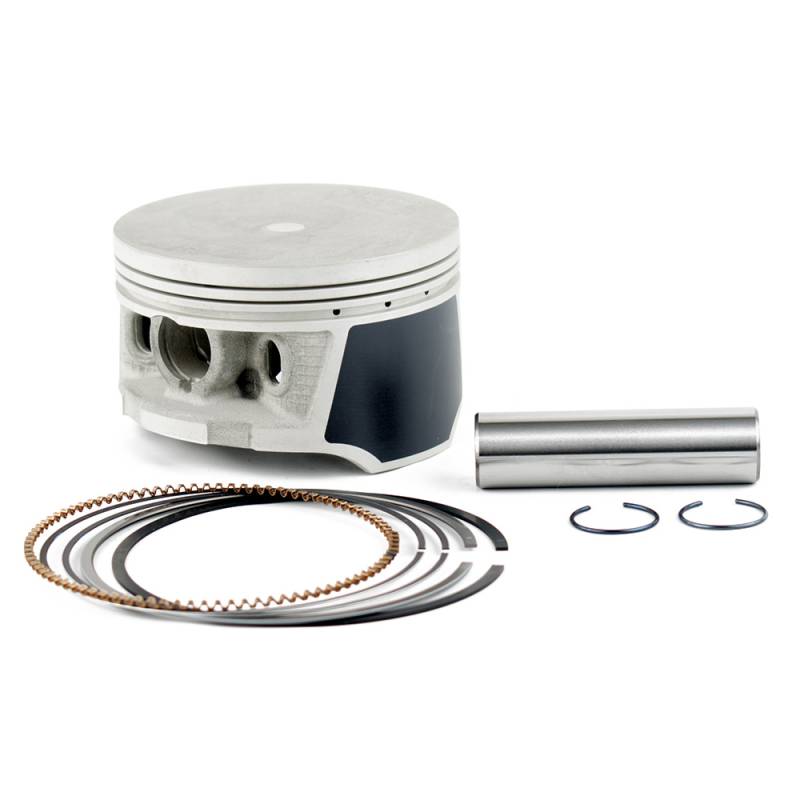

• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Standard Bore: 78.50mm (3.091")
• Bore x Stroke: 78.5mm x 68.0mm
• Displacement: 329cc
• Compression: 8.8:1
• Cylinders: Single Cylinder
• Engine Type: Air-Cooled 4-Stroke OHV
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating

COMPATIBILITY:
• Honda TRX350FE FourTrax Rancher 4x4 ES (2000-2006)
• Honda TRX350FM FourTrax Rancher 4x4 (2000-2006)
• Honda TRX350TE FourTrax Rancher ES (2000-2006)
• Honda TRX350TM FourTrax Rancher (2000-2006)
