OEM CROSS-REFERENCE PART NUMBERS:
• 13001-0718 (piston 2005-2011)
• 13001-0722 (piston superseded)
• 13001-0741 (piston 2012-2023)
• 13001-0021 (piston alternate)
• 13008-0040 (ring set)
• 13008-0008 (ring set alternate)
SPECIFICATIONS:
• Bore Size: 85.50mm
• Oversize: .50mm Over
• Standard Bore: 85mm (per cylinder)
• Stroke: 66mm
• Displacement: 749cc (V-Twin total)
• Engine: Liquid-Cooled 4-Stroke 90° V-Twin SOHC
• Compression Ratio: 9.3:1
• Valves Per Cylinder: 4
• Material: Cast Aluminum Alloy

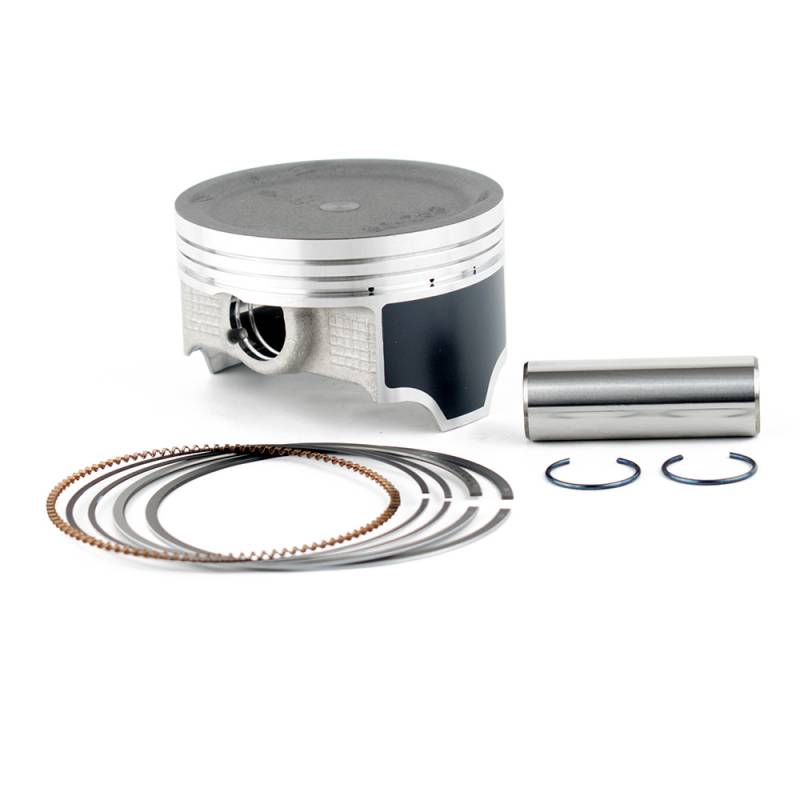

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Note: One piston per kit, order two for V-Twin
COMPATIBILITY:
• 2005-2023 Kawasaki Brute Force 750 KVF750 4x4i ATV
• 2008-2013 Kawasaki Teryx 750 KRF750 4x4 UTV
• 2012-2013 Kawasaki Teryx4 750 KRT750 4x4 UTV
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
