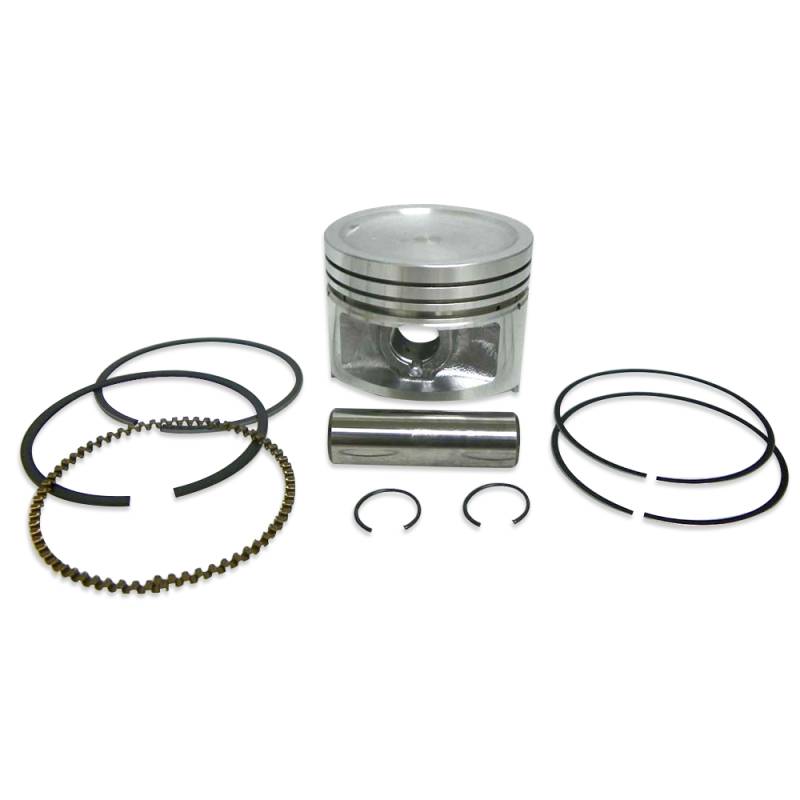

Piston Kit Standard Bore 65.50Mm Compatible With 1980-2002 Honda Xr200r Xr200 1984-1986 Atc200s

OEM CROSS-REFERENCE PART NUMBERS:
• 13101-958-671 (standard piston)
• 13101-446-770 (standard piston alternate)
• 13102-958-670 (0.25mm OS)
• 13103-958-670 (0.50mm OS)
• 13011-958-672 (ring set)
• 13011-958-671 (ring set alternate)
• 13011-446-811 (ring set alternate)
• 13111-425-000 (piston pin)

SPECIFICATIONS:
• Type: Piston Kit with Rings, Wrist Pin, and Circlip Retainers
• Standard Bore: 65.50mm (2.579")
• Stroke: 57.80mm
• Cylinders: Single Cylinder
• Engine Type: 195cc Air-Cooled 4-Stroke OHC
• Compression Ratio: 10.0:1
• Kit Contents: Piston, Rings, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum with MOS2 Coating
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• Honda XR200 / XR200R (1980-2002)
• Honda ATC200S 3-Wheeler (1984-1986)
• Honda ATC185 / ATC185S 3-Wheeler (1980-1983)
• Honda XR185 (1979-1980)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
