OEM CROSS-REFERENCE PART NUMBERS:
• 21V-11636-00-00 (piston 0.50mm OS)
• 21V-11631-00-00 (piston standard)
• 36X-11631-00-A0 (piston standard, later reference)
• 15A-11603-00-00 (ring set)
• 58L-11633-00-00 (piston pin)
• 93450-17044-00 (circlip)
SPECIFICATIONS:
• Bore Size: 67.50mm
• Oversize: 0.50mm Over
• Standard Bore: 67mm
• Displacement: 196cc
• Bore x Stroke: 67mm x 55.7mm
• Engine: 4-Stroke SOHC Air-Cooled Single Cylinder
• Compression: 9.5:1
• Pin Diameter: 16mm
• Material: Aluminum Alloy

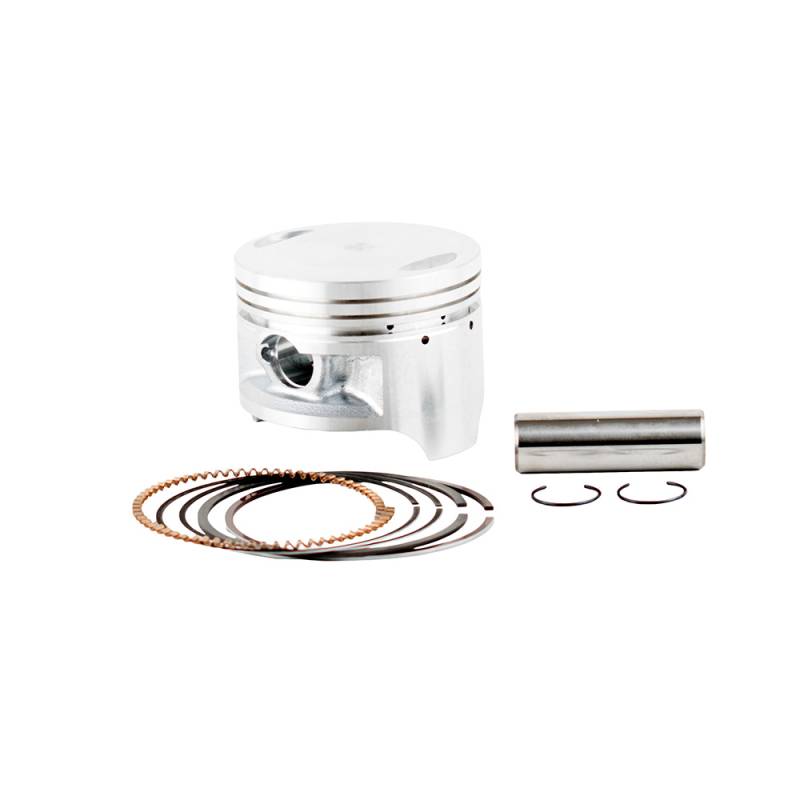

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
COMPATIBILITY:
• 1985-1989 Yamaha Moto-4 200 YFM200
• 1983-1985 Yamaha Tri-Moto 200 YTM200
• 1983-1985 Yamaha Yamahauler YTM200E
• 1985-1988 Yamaha Big Wheel BW200
• 1987-2024 Yamaha TW200 Trailway
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
