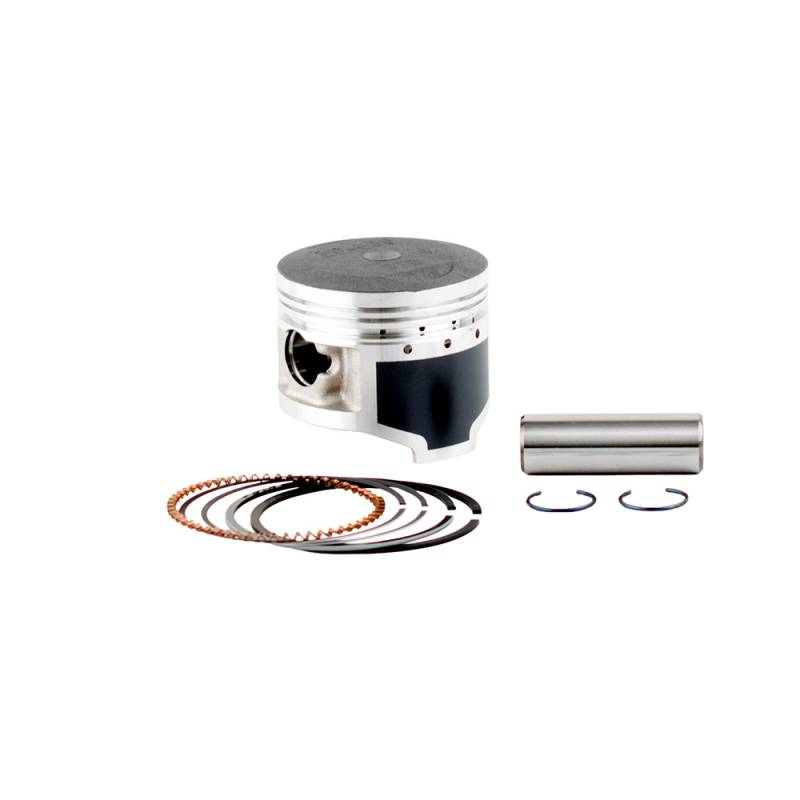

Piston Kit 0.25Mm Over Compatible With 1985-2008 Yamaha Badger 80 Raptor 80 Grizzly 80 Moto-4 80

OEM CROSS-REFERENCE PART NUMBERS:
• 55X-11631-00-96 (piston standard)
• 55X-11638-00-00 (piston 1.00mm OS)
• 55X-11610-00-00 (ring set)
• 22K-11633-01-00 (piston pin)
• 93450-14088-00 (circlip)

SPECIFICATIONS:
• Bore Size: 47.25mm
• Oversize: 0.25mm Over
• Standard Bore: 47mm
• Displacement: 79cc
• Bore x Stroke: 47mm x 45.6mm
• Engine: 4-Stroke SOHC Air-Cooled Single Cylinder
• Compression: 9.6:1
• Material: Aluminum Alloy
• Kit Contents: Piston, Rings, Wrist Pin, Circlips

COMPATIBILITY:
• 1985-2001 Yamaha Badger 80 YFM80
• 1985-1993 Yamaha Moto-4 80 YFM80
• 2002-2008 Yamaha Raptor 80 YFM80R
• 2005-2008 Yamaha Grizzly 80 YFM80G

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
